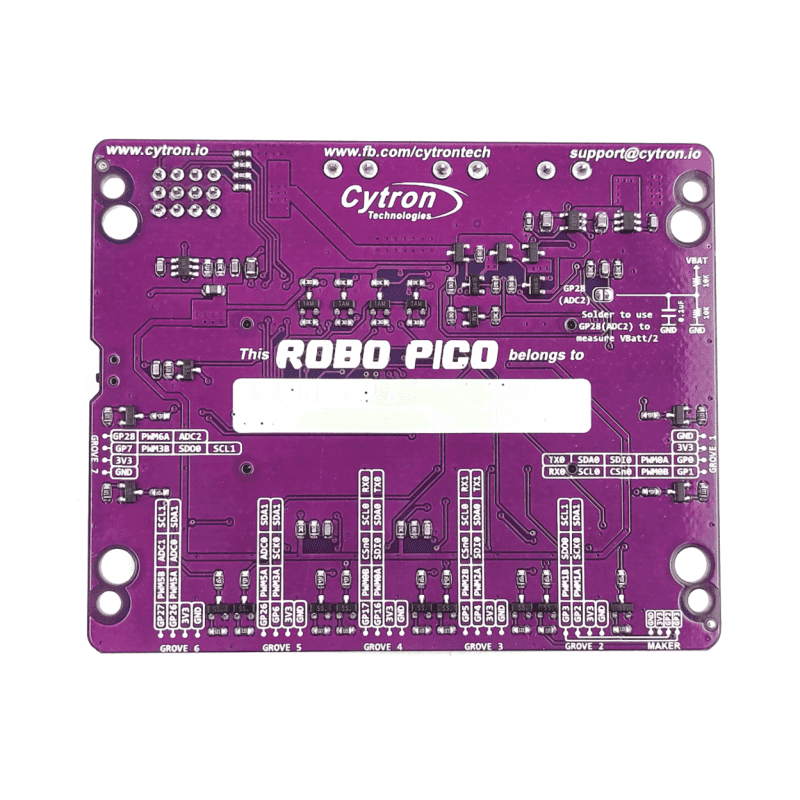

Robo Pico: Simplifying Robotics for Raspberry Pi Pico / Pico W

What's on the Board?

• Versatile power circuit

  • Automatic power selection: USB 5V, LiPo (1-cell) or Vin (3.6-6V)

  • Built-in 1-cell LiPo/Li-Ion charger (over-charged & over-discharged protection)

  • Power on/off switch with status LED

• 1x Reset Button

• 7x Grove Ports (flexible I/O options: digital, analog, I2C, SPI, UART...)

• 1x Maker Port (JST-SH 4-Ways Connector)

• GPIO Breakout for Raspberry Pi Pico/Pico W

• 13x Status indicator LEDs for GPIO pins

• 2x RGB LED (Neopixel)

• 2x Programmable Button

• 1x Piezo Buzzer with Buzzer Mute Switch

• 2x DC Motor Terminals

  • 2x Motor Status LEDs for each Motor Terminal

  • 2x Motor Test Buttons for each Motor Terminal

• Mouting holes

  • 4x 4.8mm mounting hole

  • 4x M3 screw hole
