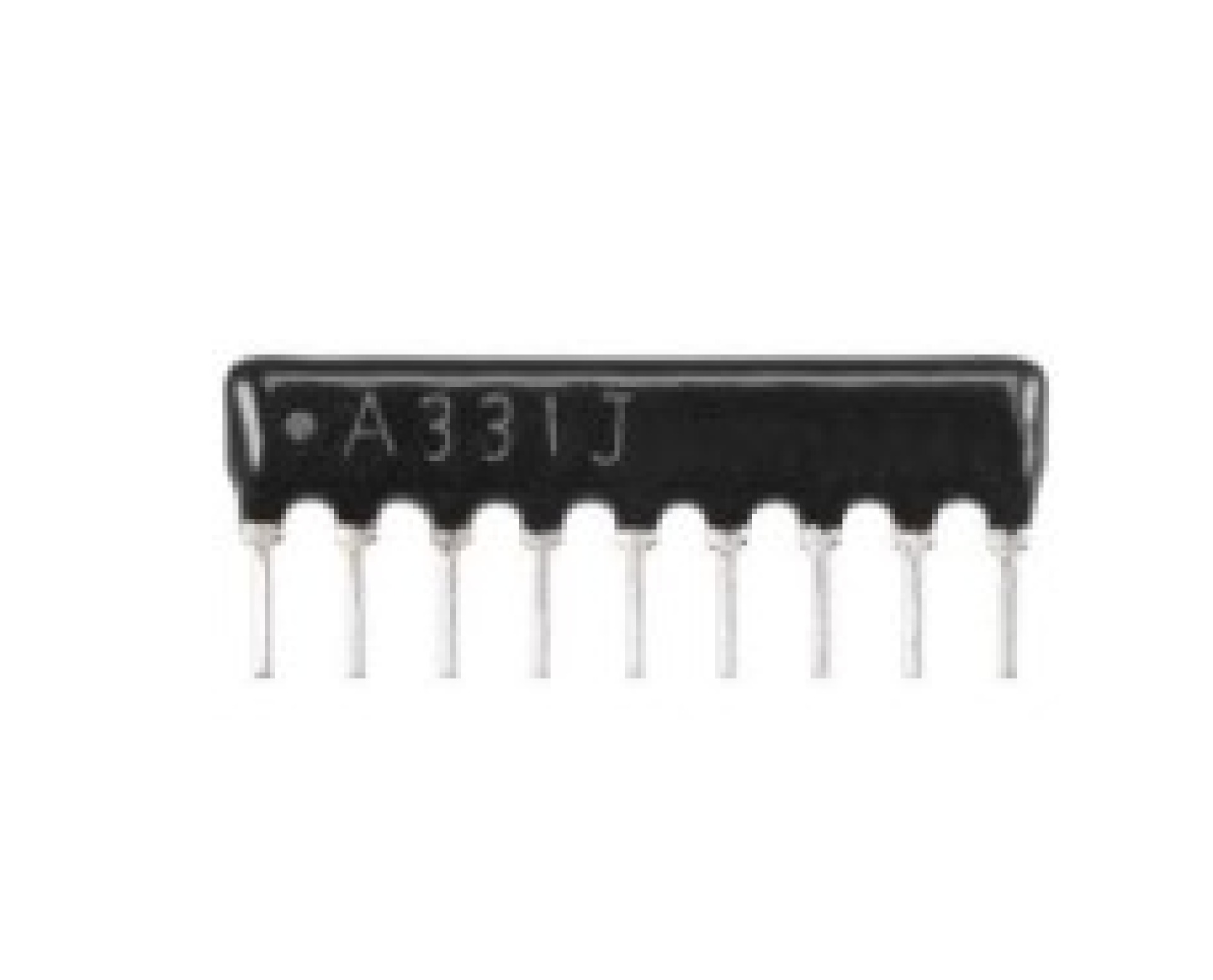

330Ω 9-Pin Resistor Network Array A331J

Product Description

The A331J 330Ω Resistor Network is a compact passive electronic component that integrates multiple resistors into a single 9-pin package. Designed for through-hole PCB mounting, it helps reduce component count and simplify circuit layouts in digital electronics, microcontroller systems, and electronic control boards.

This resistor array typically contains eight individual 330Ω resistors connected to a shared common terminal. The remaining eight pins connect to the individual resistor elements, allowing multiple signal lines to use the same resistance value while sharing a common electrical connection. This configuration is known as a bussed resistor network.

With a nominal resistance of 330Ω and a typical tolerance of ±5%, the A331J is suitable for applications requiring consistent resistance across multiple signal channels. Its compact single-in-line (SIP) package and 2.54mm pin pitch make it convenient for PCB layouts and compatible prototyping arrangements.

The A331J resistor network is commonly used in digital logic circuits, microcontroller interfaces, LED circuits, and signal conditioning applications. Depending on the circuit design, it can provide current-limiting resistance, pull-up or pull-down paths, and other repeated resistor functions. Before installation, the shared common pin and individual resistor connections should be verified against the component's pinout diagram.

Features:

• 330Ω nominal resistance

• Eight integrated resistor elements

• 9-pin single-in-line (SIP) package

• Shared common terminal configuration

• Typical ±5% resistance tolerance

• Typical 1/8W power rating per resistor

• 2.54mm pin spacing

• Through-hole PCB mounting

• Compact design for space-efficient circuit layouts

• Simplifies multi-channel resistor connections

Specifications:

Specifications are based on commonly listed A331J resistor networks. Confirm the exact manufacturer's datasheet and pinout for the supplied component.

Applications:

• Microcontroller and embedded system circuits

• Digital logic pull-up and pull-down networks

• LED current-limiting circuits

• Signal interface and conditioning circuits

• Electronic control boards

• Computer and communication circuits

• Prototyping and educational electronics

• Multi-line signal connections on PCBs
