7805 Positive Voltage Regulator 5V
In Stock
Categories: Voltage Regulators
Overview
The 7805 is a widely used positive voltage regulator that provides a stable +5V output from a higher input voltage, typically between 7V to 35V. Itβs perfect for powering 5V logic circuits, microcontrollers, and embedded systems. Known for its simplicity, robustness, and built-in protection features, the 7805 is a must-have for any electronics toolbox.
Description
π§ Key Features:
-
β Fixed +5V Output Voltage β Ideal for 5V logic and microcontroller circuits.
-
β Wide Input Voltage Range β Operates from 7V to 35V input.
-
β Output Current Up to 1A β Sufficient for most low-to-medium current applications.
-
β Built-in Protection Features:
-
Over-temperature shutdown
-
Short-circuit protection
-
Internal current limiting
-
-

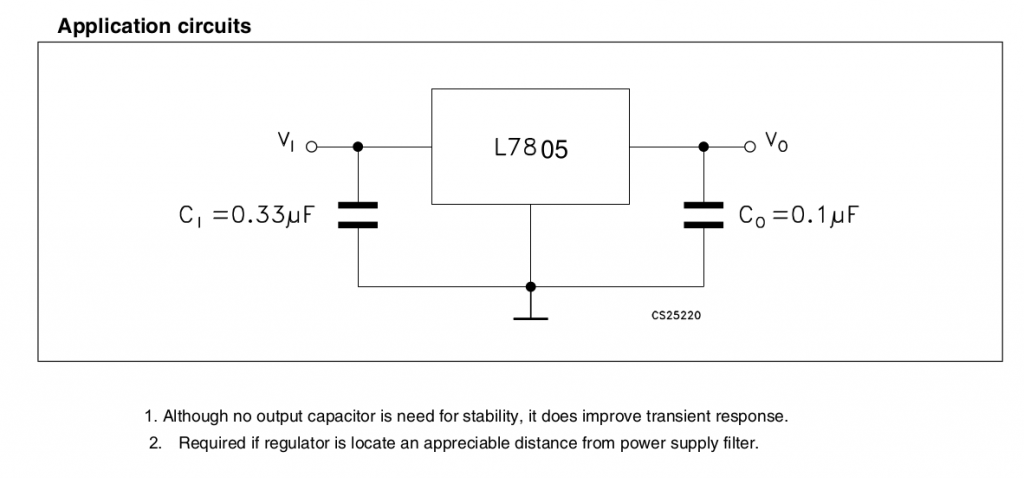

β Easy to Use β Just add two capacitors for stable operation.
βοΈ Technical Specifications:
-
Model: 7805 (positive voltage regulator)
-
Output Voltage: 5V Β± 4%
-
Input Voltage Range: 7V to 35V
-
Output Current: Up to 1A (with proper heat sink)
-

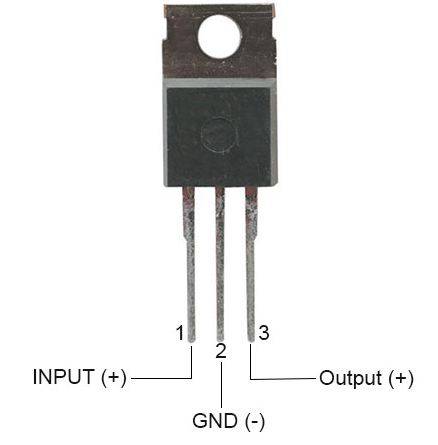

Package: TO-220
-
Dropout Voltage: ~2V typical
-
Operating Temperature: 0Β°C to +125Β°C
π― Typical Applications:
-
π§ Microcontroller power supply (e.g., Arduino, ESP8266)
-
π‘ Sensor and module power regulation
-
π 5V logic circuit design
-
βοΈ Embedded systems
-
π General-purpose linear voltage regulation
π¦ Package Includes:
-
1x 7805 Voltage Regulator IC (TO-220 Package)
