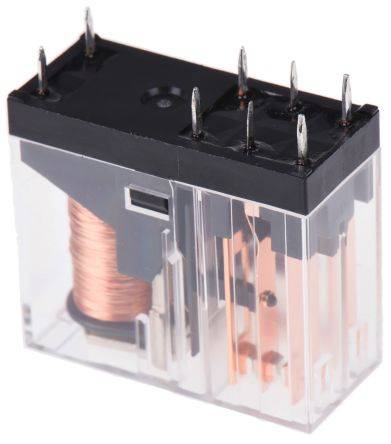

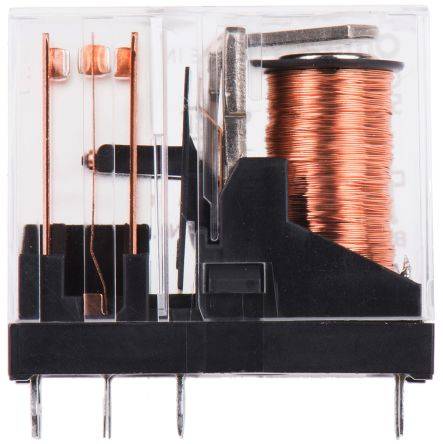

Omron DPDT Non-Latching Relay PCB Mount 12V dc Coil 5A
Electra Store
SKU: CM-26826
80.00 EGP
In Stock
1
Categories: Relays
Description
Description
| Coil Voltage | 5 V dc |
| Contact Configuration | DPDT |
| Mounting Type | PCB Mount |
| Switching Current | 5 A |
| Terminal Type | Through Hole |
| Coil Resistance | 47 Ω |
| Application | Power |

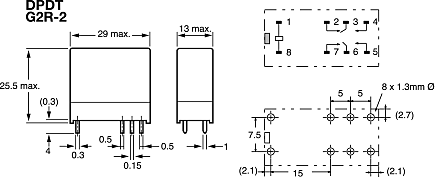

| Length | 29mm |
| Depth | 13mm |
| Height | 25.5mm |
| Dimensions | 29 x 13 x 25.5mm |
| Maximum Operating Temperature | 70°C |
| Maximum Switching Power AC | 1.25 kVA |
| Operating Temperature Range | -40 → 70°C |
| Maximum Switching Power DC | 150 W |
| Minimum Operating Temperature | -40°C |
| Contact Material | Silver |
