Key Features:

✔ High-Power 3W IR LEDs – Covers up to 10m range (ideal for indoor/outdoor use). ✔ 850nm Wavelength – Invisible to humans but detectable by RPi NoIR cameras. ✔ Wide Viewing Angle (60°–120°) – Broad coverage for surveillance areas. ✔ Low Power Consumption – 12V DC input (compatible with RPi power supplies). ✔ Compact & Mountable – Includes screw holes for easy attachment to camera housings. ✔ Heat-Resistant Design – Aluminum PCB for efficient heat dissipation.

Applications:

• Raspberry Pi NoIR Camera – Night vision for security, wildlife monitoring.

• DIY Surveillance Systems – Covert lighting for IP cameras.

• Drones & Robotics – Low-light navigation.

• Smart Home Automation – Night-time motion detection.

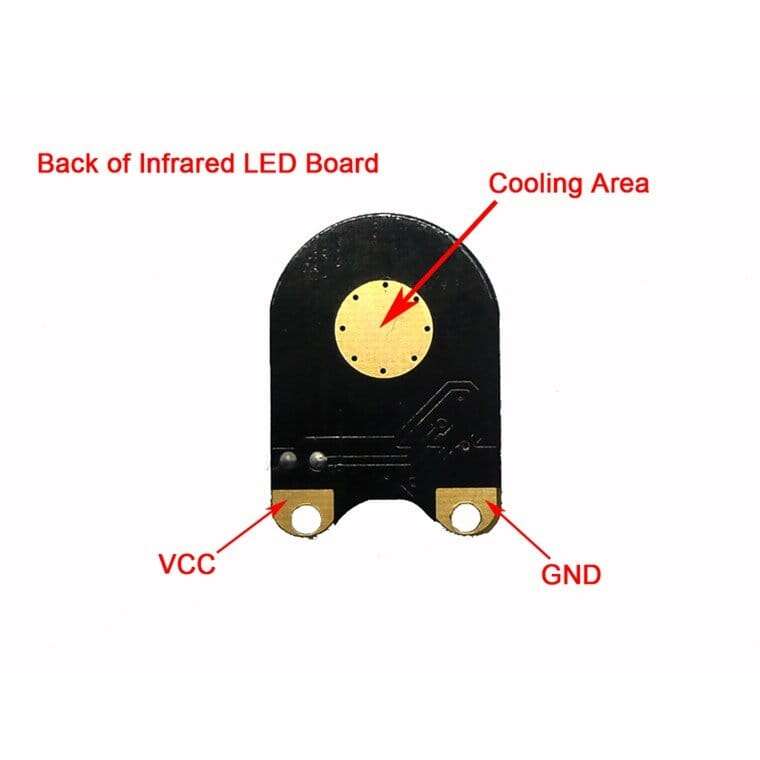

Wiring Guide:

• +12V → Power supply (or RPi 5V with boost converter).

• GND → Common ground.

Technical Specifications:

• Wavelength: 850nm (near-infrared).

• Input Voltage: 12V DC (3V–5V models available).

• Current Draw: ~250mA @ 12V.

• LEDs: 2–6x high-power IR LEDs (depends on model).

• Dimensions: 30mm × 20mm (varies by design).

Package Includes:

• 1x 3W IR Illuminator Board.

Why Choose This IR Light?

✅ Stealthy Illumination – No visible red glow (unlike 940nm). ✅ Plug-and-Play – Works with RPi NoIR Camera v1/v2. ✅ Durable – Resists humidity and minor splashes.
