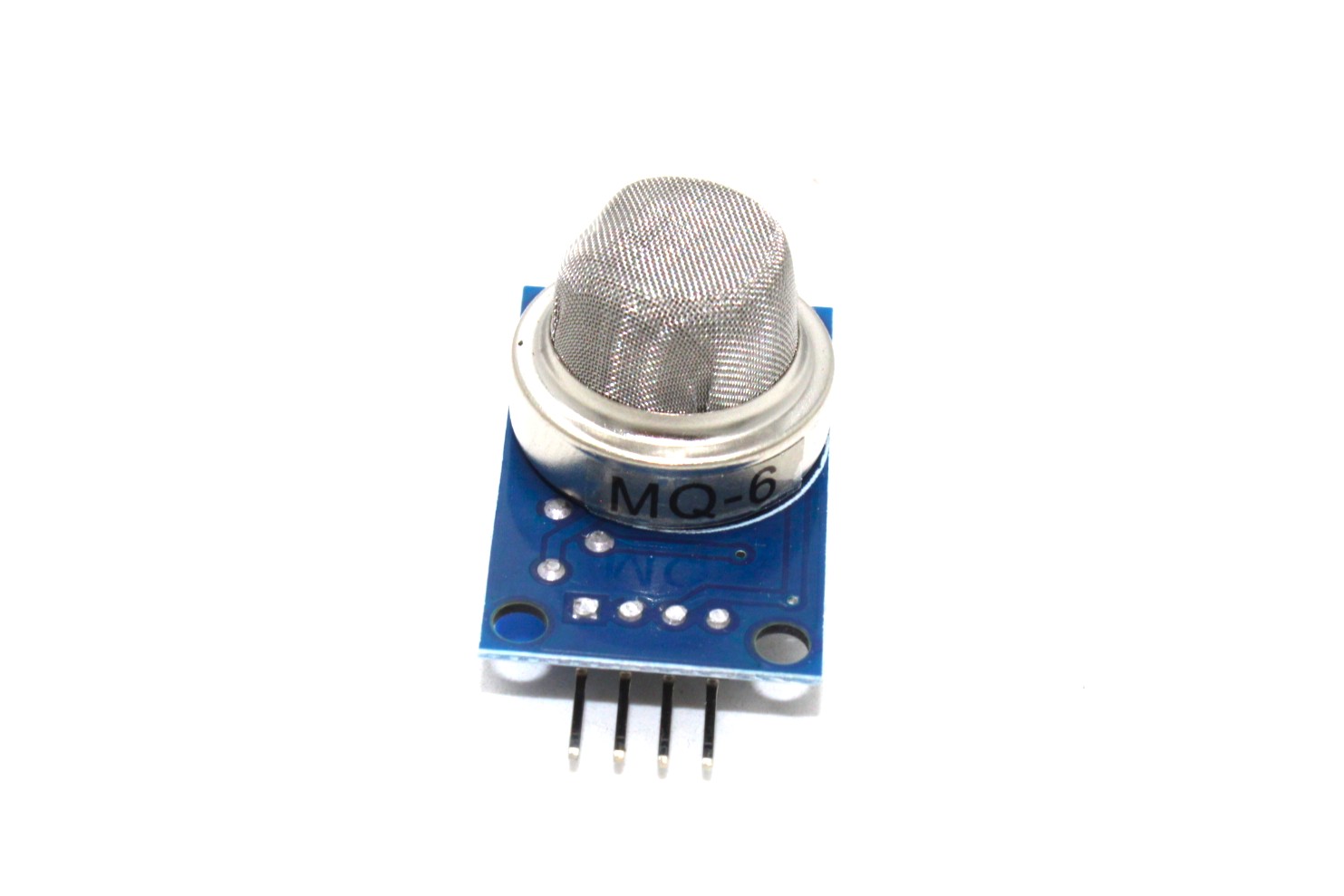

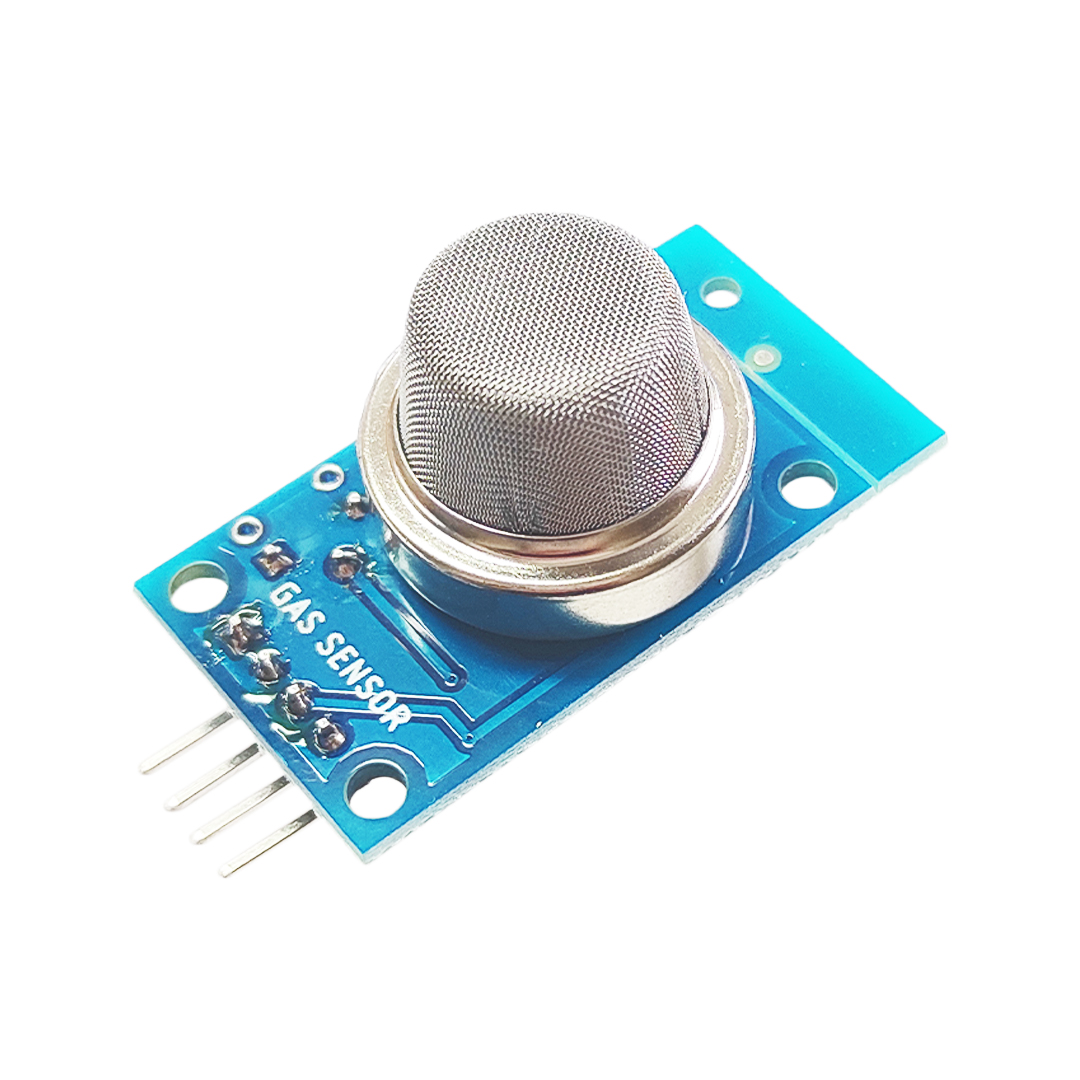

MQ-6 Digital & Analog LPG / Butane Gas Sensor Module
In Stock
Categories: Environment Sensors
Description
🔥 Key Features
✔ LPG/Butane-Specific Detection – 300–10,000 ppm range ✔ Dual Output Modes – Analog (0–5V) + Digital (TTL High/Low) ✔ Adjustable Sensitivity – Digital threshold via onboard potentiometer ✔ Fast Response Time – Detects gas leaks in < 10 seconds ✔ Preheat Required – 24–48 hours for initial stabilization ✔ 5V Compatible – Works with Arduino & 5V logic devices
📊 Technical Specifications
| Parameter | Specification |
|---|---|
| Detection Range | 300–10,000 ppm (LPG/Propane/Butane) |
| Operating Voltage | 5V DC |
| Analog Output | 0–5V (higher voltage = higher gas concentration) |
| Digital Output | TTL (High/Low) – Adjustable threshold |
| Preheat Time | 24–48 hrs (initial use) + 5 min warm-up afterwards |
| Response Time | < 10s (to detect gas changes) |
| Sensor Type | Semiconductor (SnO₂-based) |
🔌 Wiring Guide (Arduino Example)
-
VCC → 5V
-
GND → GND
-
AO (Analog Out) → A0 (for gas concentration readings)
-
DO (Digital Out) → D2 (for threshold-based alerts)
❗ Critical Note:
-
Preheat continuously for 24–48 hours before first use for accurate readings.
-
Use MQ6 Arduino libraries for calibration and ppm conversion.
⚠️ Safety & Usage Notes
-
Not for life-critical systems (use professional detectors in homes/industries).
-
Avoid high humidity & alcohol fumes (may cause false positives).
-
Calibrate in clean air before exposure to LPG/butane.
🔍 Applications
✅ Home Gas Leak Alarms – Kitchen/garage safety ✅ Industrial Monitoring – LPG storage facilities ✅ Smart Ventilation Systems – Auto-trigger exhaust fans ✅ DIY Safety Projects – Portable gas detectors ✅ Educational Kits – Learn gas sensing principles
