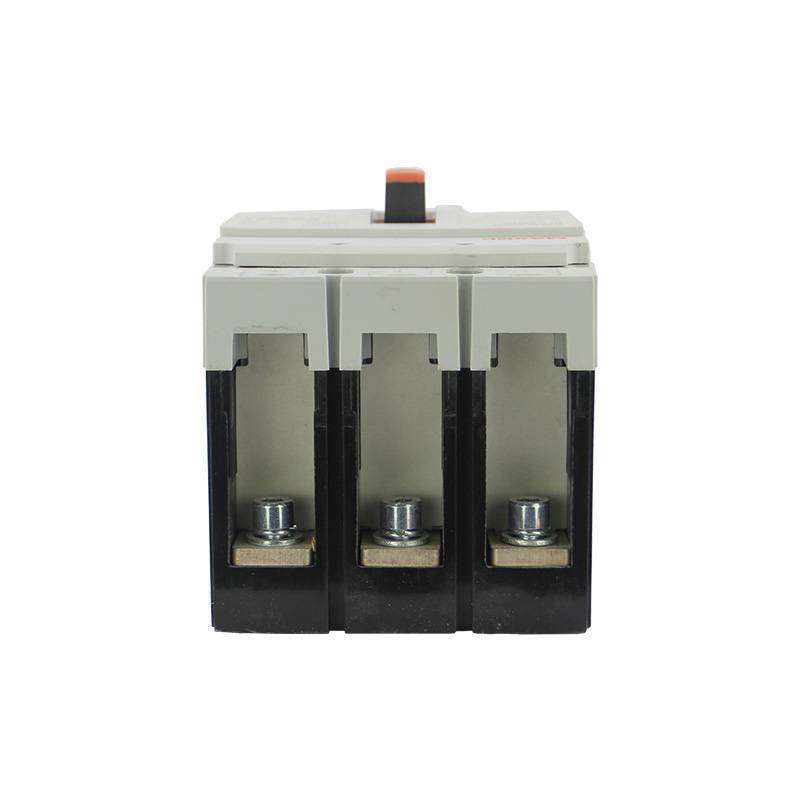

MAXGE SGM3 250A Moulded Case Circuit Breaker (MCCB)
Electra Store
SKU: MC-27917
3,000.00 EGP
Out of Stock
Categories: MAXGE, Circuit Breaker
Overview
<ul>
<li><span style="font-size: medium;color: #000000">Below Rated voltage AC 690V or rated operation current up to 800A for infrequent changing over and starting of the motors</span></li>
<li><span style="font-size: medium;color: #000000">Equipped with the protection devices for over-current,short circuit and under voltage,the products is capable of preventing damage of circuits and supplying units without release but alarm due to overload, Ensure the power supply reliability and continuity</span></li>
<li><span style="font-size: medium;color: #000000">Fixed current, not adjustable mccb</span></li>
<li><span style="font-size: medium;color: #000000">1fold</span></li>
</ul>
Description
| Frame Size | 250 | Rated impluse withstand voltage Uimp (kV) | 8 | |
| Number of poles | 3,4 | Rated ultimate short-circuit breaking capacity lcu(kA) | 36 | 50 |
| Rated current(A) In | 100,125,140,150,160, 175,180,200,225,250 | Rated service short-circuit breaking capacity lcs(kA) | 27 | 36 |
| Standard | IEC60947-2 | Mechanical Endurance Electrical Endurance | 7000 1000 | |
| Reference temperature | 40℃/55℃ | Fixed magnetic trip | YES | |
| Rated insulation voltage Ui (V) | 800 | Dimensions 3P mm(L*W* H) 4P | L：106*165*109 M：106*165*128 | |
| L:141*165*109 M:141*165*128 | ||||
