🔧 Key Features:

• ✅ Converts RS-232 signals to TTL logic and vice versa

• ✅ Built-in Charge Pump: Requires only external capacitors for ±10V generation

• ✅ Dual Channel: Supports 2 transmitters and 2 receivers

• ✅ Standard DIP-16 package for breadboard compatibility

• ✅ Operates with single 5V supply

⚙️ Technical Specifications:

• IC Type: MAX232

• Package: DIP-16

• Supply Voltage: 4.5V to 5.5V

• Data Rate: Up to 120 kbps

• Operating Temperature: 0°C to +70°C

• Applications: RS-232 communication, embedded systems, Arduino, microcontrollers

📦 Typical Applications:

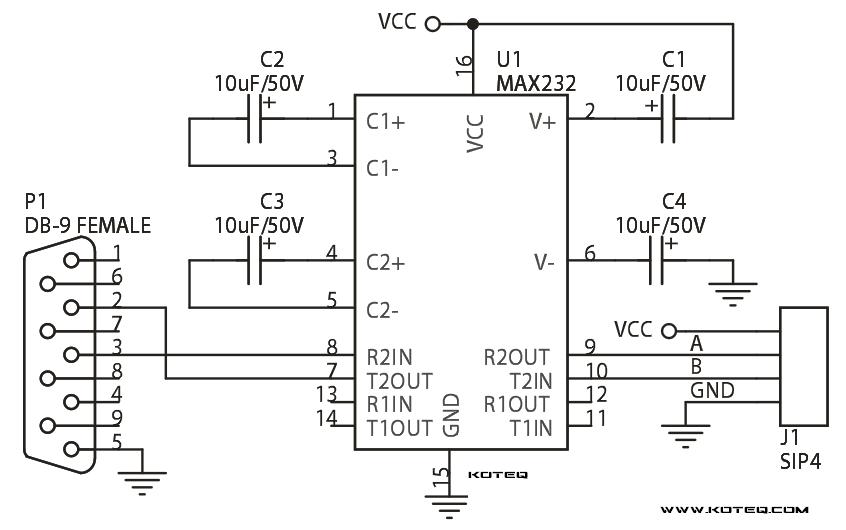

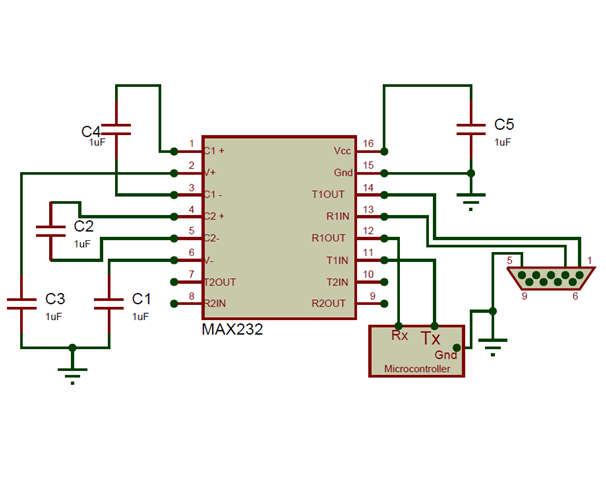

• 🔌 Interfacing microcontrollers with PC via RS-232

• 🖥️ Serial communication with GSM modules or GPS

• 📡 TTL to RS232 conversion in embedded projects

• 🧪 Prototyping and testing on breadboards

🛠️ Package Includes:

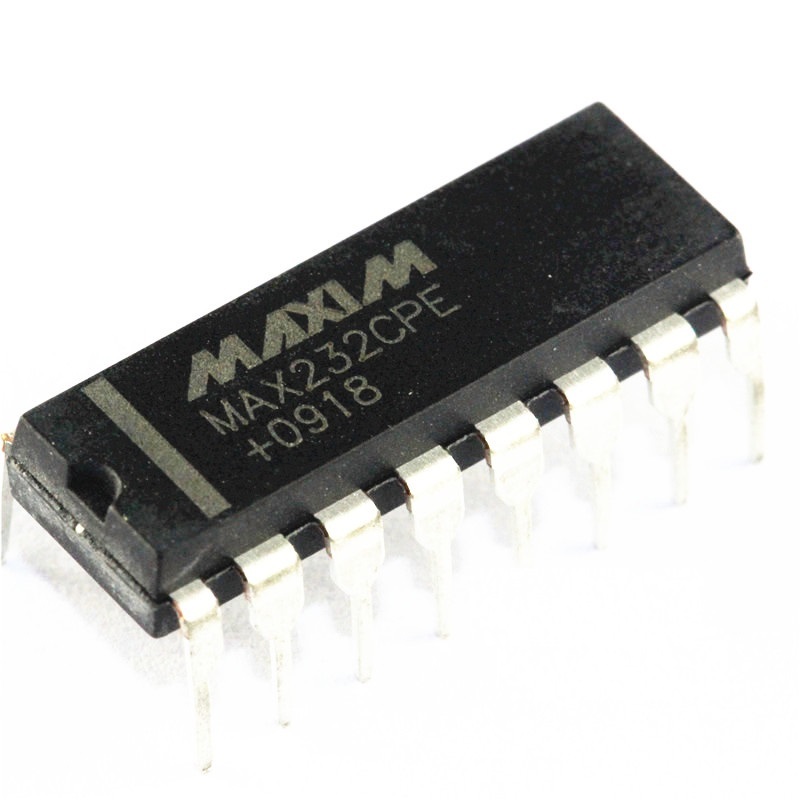

• 1x MAX232 IC – DIP-16 Package
