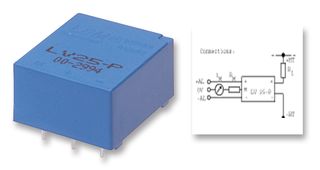

LV25-P LEM Voltage Transducer
Electra Store
SKU: MD-22637
1,188.00 EGP
Out of Stock
Categories: Voltage Transducer
Overview
A PCB mounting voltage transducer based on the Hall effect. The unit provides galvanic isolation between primary and secondary circuits. To enable a voltage to be measured a current proportional to the measured voltage must be collected through an external resistor, selected by the user, in series with the primary circuit of the unit.
Description
_x000D_
Advantages:
_x000D__x000D_
_x000D_- _x000D_
- Suitable for the electronic measurement of voltages associated with DC, AC, and impulse circuits _x000D_
- Provides galvanic isolation between primary and secondary circuits _x000D_
- Closed-loop (compensated) current transducer _x000D_
- Excellent accuracy _x000D_
- Very good linearity _x000D_
- Low thermal drift _x000D_
- Low response time _x000D_
- High bandwidth _x000D_
- High immunity to external interference _x000D_
- Low disturbance in common mode _x000D_
- _x000D_
- Nominal Value: 0.01A _x000D_
- Measuring Range: 0.014A _x000D_
- Second. Nominal Signal: Current _x000D_
- Second. Nominal Signal Value: Instantaneous 25 mA _x000D_
- Primary Signal: AC DC _x000D_
- Supply Voltage: External DC Bipolar _x000D_
- Supply Voltage Range: ± 12 to ± 15 V _x000D_
- Accuracy: 0.9 %Op. _x000D_
- Temperature: 70 °C _x000D_
- Technology: Closed-loop Hall effect _x000D_
- Mounting: PCB _x000D_
_x000D_
_x000D_
Applications
_x000D_- _x000D_
- Motor Drive & Control, _x000D_
- Power Management _x000D_
- Industrial _x000D_
