JGA25-370 DC Gearmotor 126 RPM with Encoder 12V
Electra Store
SKU: MO-22881
650.00 EGP
In Stock
1
Categories: DC Motors
Description
The encoder has 6 color-coded, 15 cm leads terminated by a 6 female header with a 0.1" pitch.
Hall sensor outputs A and B are square waves 0 V to Vdc approximately 90 ° out of phase.

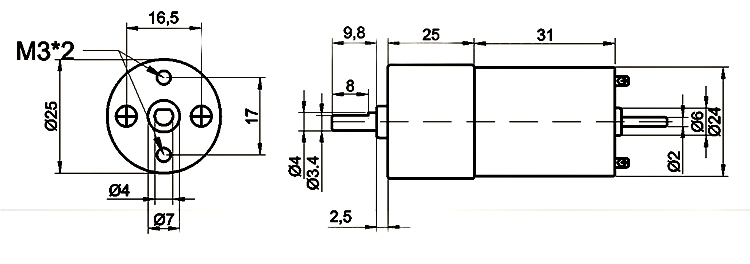

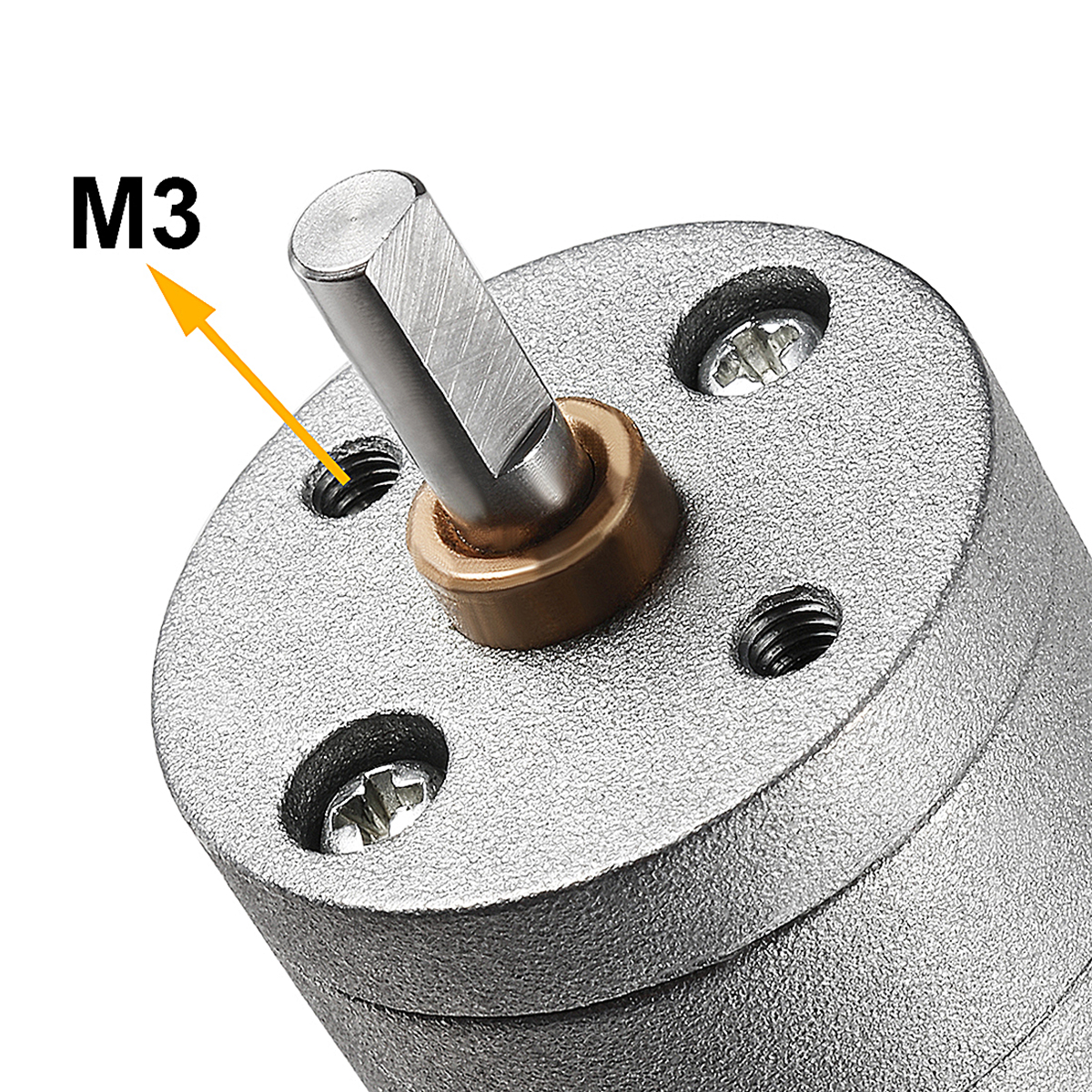

The faceplate has 2 mounting holes evenly spaced around the threaded outer edge for M3 screws.
Mounting holes distance is 18mm apart.
Package Included:
- 1 x JGA25-370 DC Gearmotor 126 RPM with Encoder 12V.
