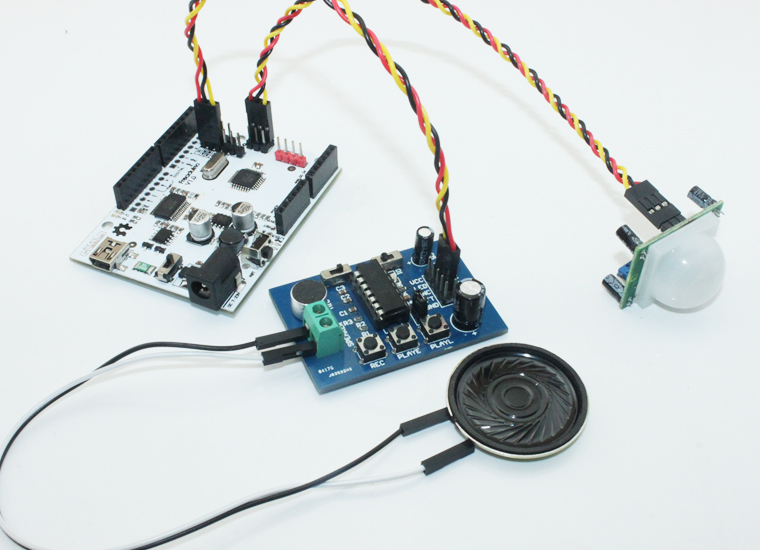

• The ISD1820 Voice Record and Playback Module provides a simple way to record up to 10 seconds of audio and then play it back under MCU or manual control.
• With the built-in microphone, you can record one message that is up to 10 seconds long.  This can be extended up to 20 seconds with a resistor change.  The message can be rerecorded up to 100,000 times and is non-volatile.
• A small built-in audio amplifier can drive an 8-ohm speaker.

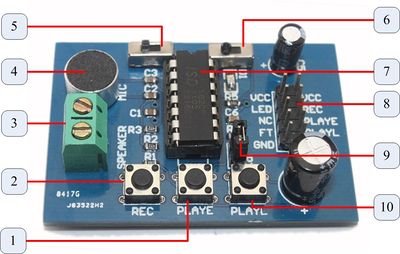

• Functions such as Record, Play E and Play L can be activated by pushing a button or input a logic HIGH on the header pin with the same name.

FEATURES OF ISD1820 VOICE RECORD AND PLAYBACK MODULE:

• Record and playback up to 10 seconds of audio.
• Pushbutton and MCU controllable
• Edge or level activated playback
• Built-in microphone
• On-chip 8 ohm speaker driver
• Duration and sample rate can be modified up to 20 seconds with resistor change
• Auto power down mode
• 2.6 -5V operation

PACKAGE INCLUDED:

• 1 X ISD1820 Voice Record and Playback Module
