Key Features:

✔ 16mm Metal Shell – Durable aluminum alloy body with corrosion-resistant finish (black/gold/silver). ✔ 4-Pin Configuration – Ideal for power + signal combinations (e.g., 12V/24V DC + data lines). ✔ Secure Locking – Threaded coupling ring prevents accidental disconnection (screw-on tightening). ✔ Wiring Options –

• Solder cup terminals (for reliable, permanent connections).

• Optional screw terminals (tool-free assembly, supports 12AWG–18AWG). ✔ Environmental Protection – IP54-rated (dust/splash-resistant; higher IP67 available). ✔ Panel Mount Design – Installs into enclosures, control boxes, or drones (requires 16mm hole).

Applications:

• Professional Audio/Video – XLR alternative for balanced audio or DMX lighting.

• Industrial Automation – Motor controllers, sensor interfaces.

• Drones & RC Vehicles – Power + signal transmission (ESC, gimbal control).

• Power Supplies – Secure DC power connections (up to 10A per pin).

Technical Specifications:

• Current Rating: 5A–10A per pin (depends on wiring).

• Voltage Rating: 250V AC/DC.

• Contact Resistance: <10mΩ.

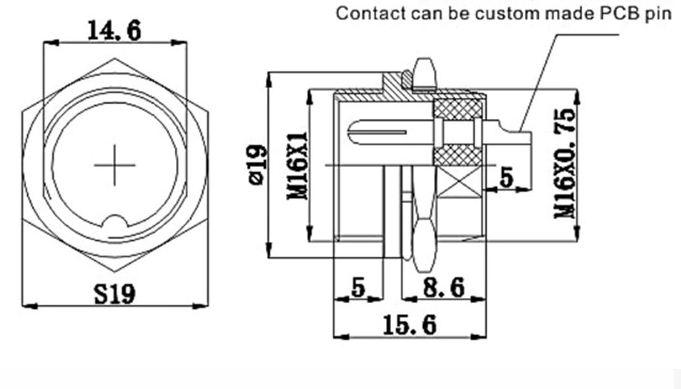

• Mounting Hole: 16mm diameter (M16×1 thread).

• Temperature Range: -30°C to +80°C.

Package Includes:

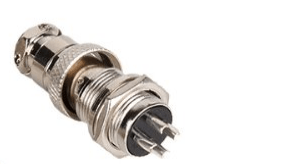

• 1 × GX16-4 Male/Female Chassis Plug (specify gender).

• Mounting nut + washer.

• Rubber sealing ring (for IP54 models).

Why Choose the GX16-4?

✅ Pro-Grade Durability – Handles vibration, moisture, and rough use. ✅ Easy Installation – Fits standard 16mm panel holes. ✅ Versatile Use – Replaces bulky connectors in compact designs.
