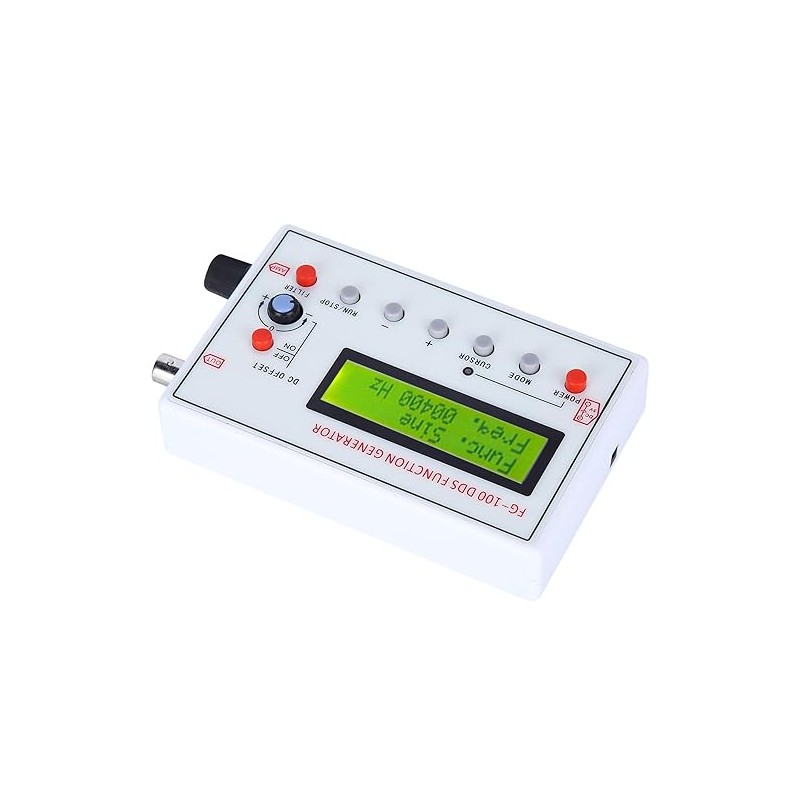

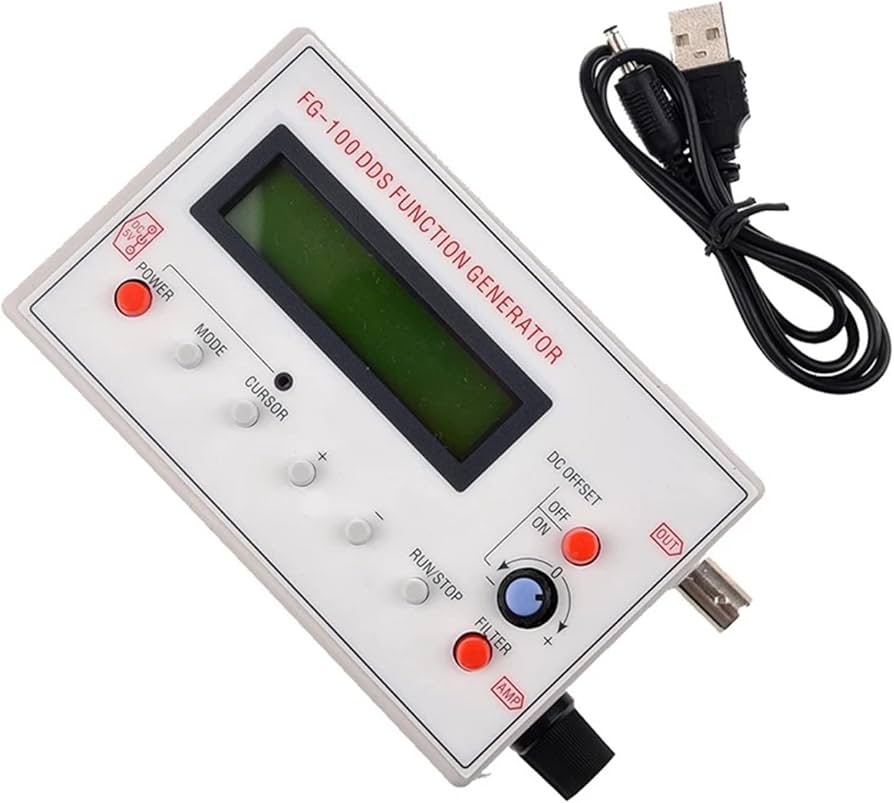

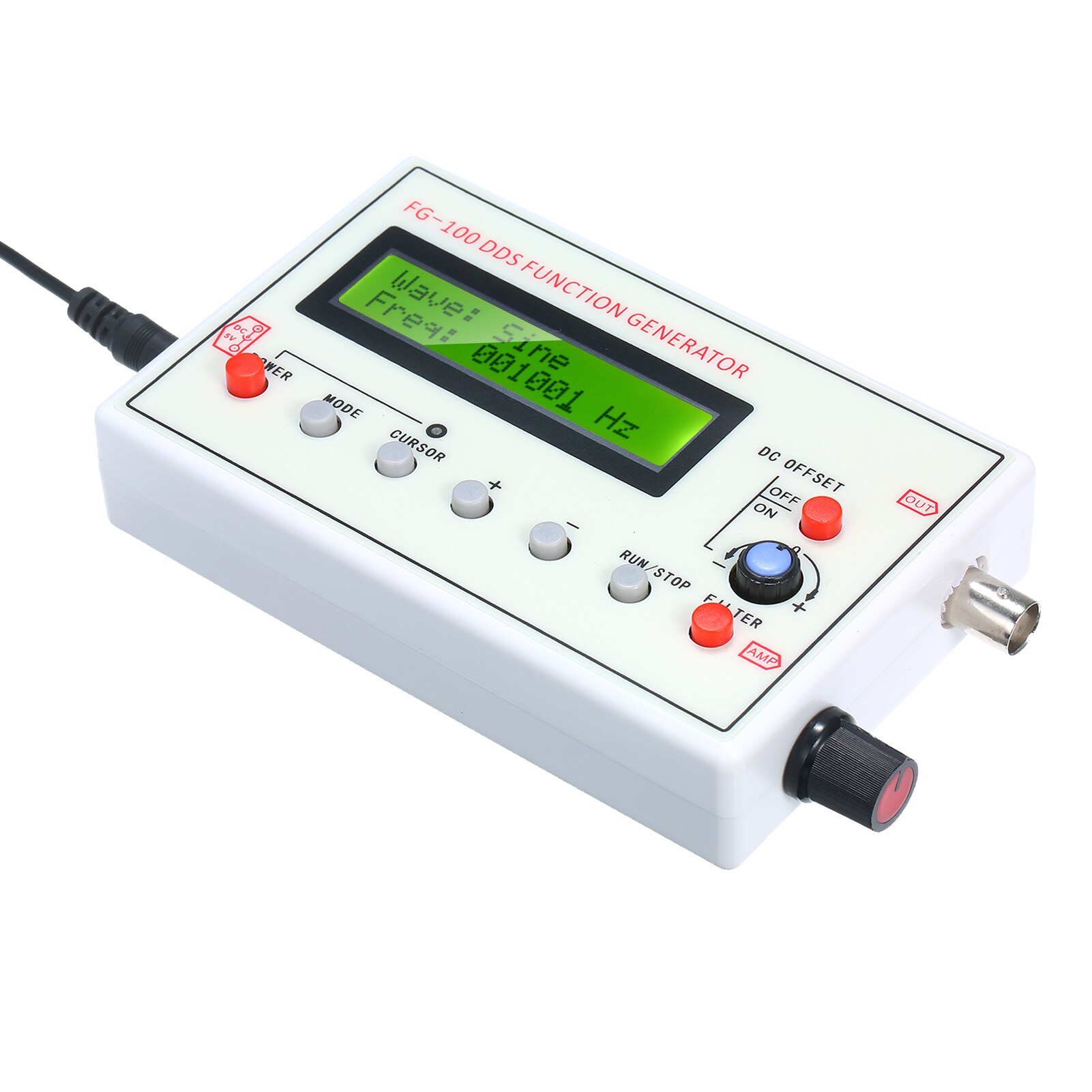

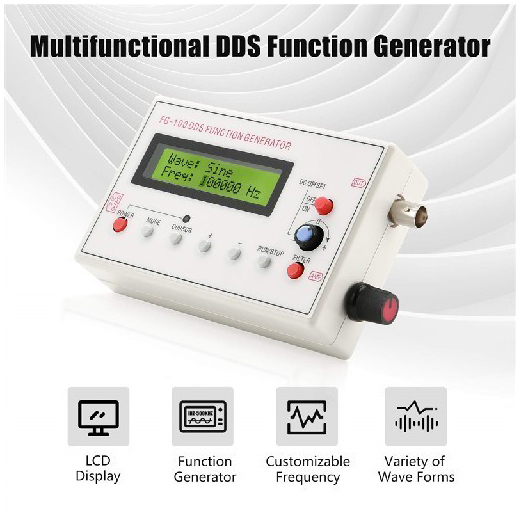

FG-100 DDS Function Generator

⚙️ Key Features:

• ✅ Waveforms: Sine, Square, Triangle, Sawtooth, Reverse Sawtooth, and Pulse

• ✅ Frequency Range: 1Hz – 65534Hz (65.5kHz max)

• ✅ Output Voltage: Up to 20Vpp (adjustable with attenuation)

• ✅ Frequency Resolution: 1Hz

• ✅ Duty Cycle Adjustment: Especially useful for square wave signals

• ✅ Compact & Portable: Pocket-size tool ideal for on-the-go testing

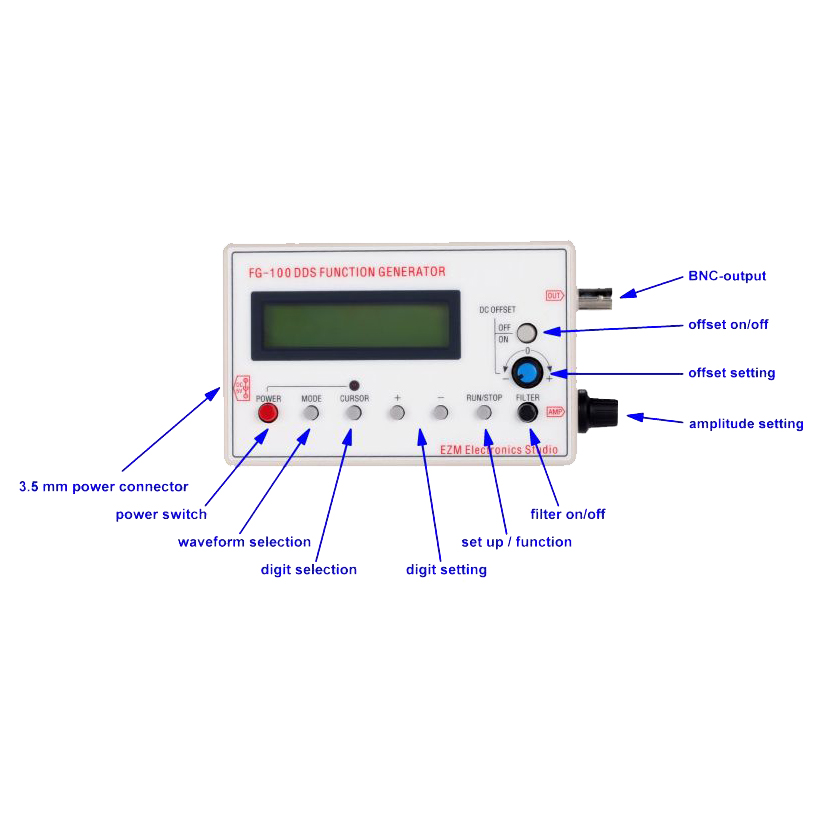

• ✅ Easy Operation: Intuitive controls with LCD display for clear signal parameter readout

• ✅ Power Supply: 9V DC (via standard barrel jack or battery clip)

📐 Physical Specifications:

• Dimensions: Lightweight and compact for bench or field work

• Display: Clear LCD screen for frequency, duty cycle, and waveform type

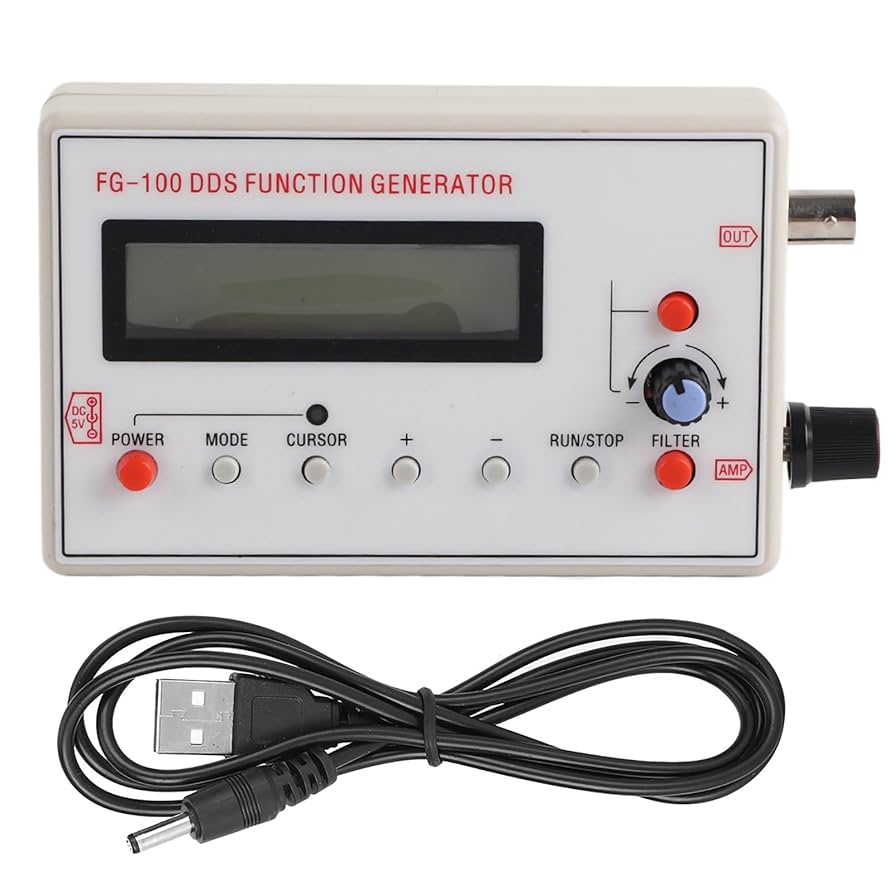

📦 Package Includes:

• 1x FG-100 DDS Function Generator

• 1x BNC to alligator clip cable

• 1x User Manual

🧪 Applications:

• Signal simulation for circuit testing

• Audio and RF circuit development

• Function testing in microcontroller projects

• Educational demonstrations and lab use

• Hobby electronics and DIY signal generation
