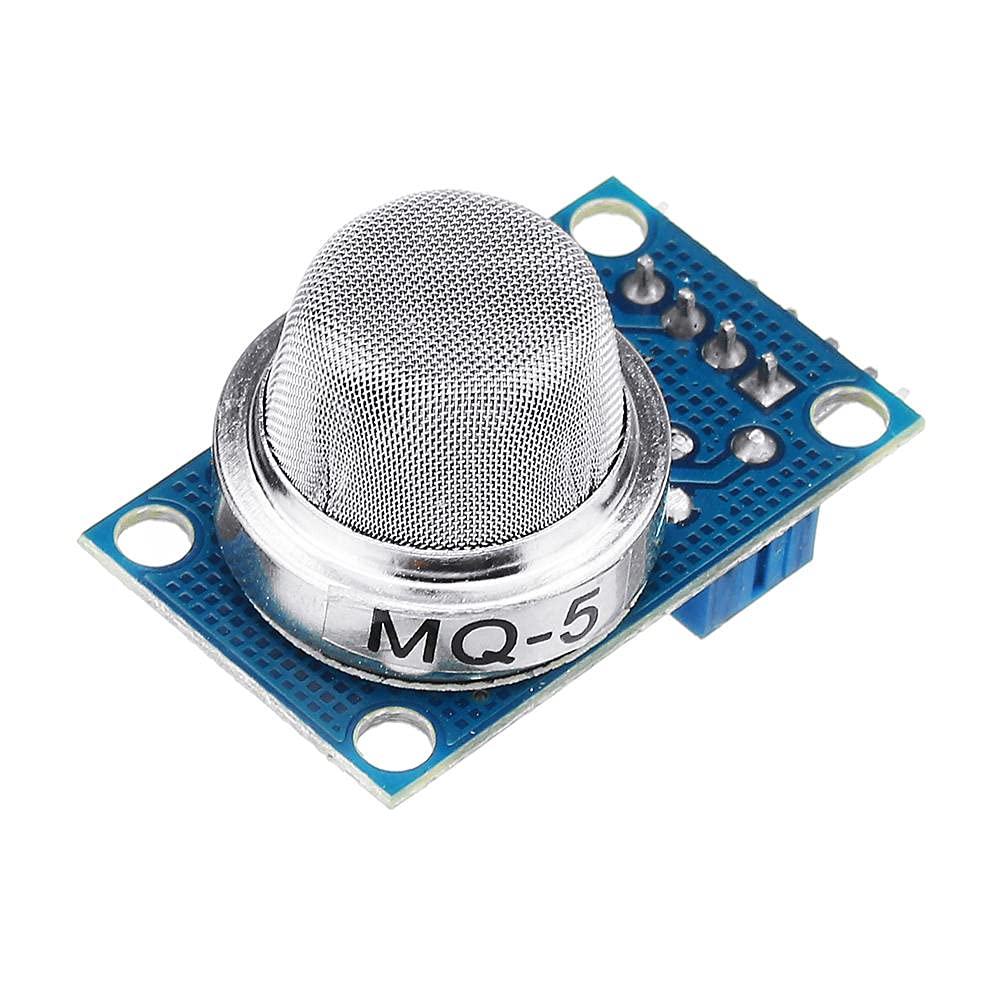

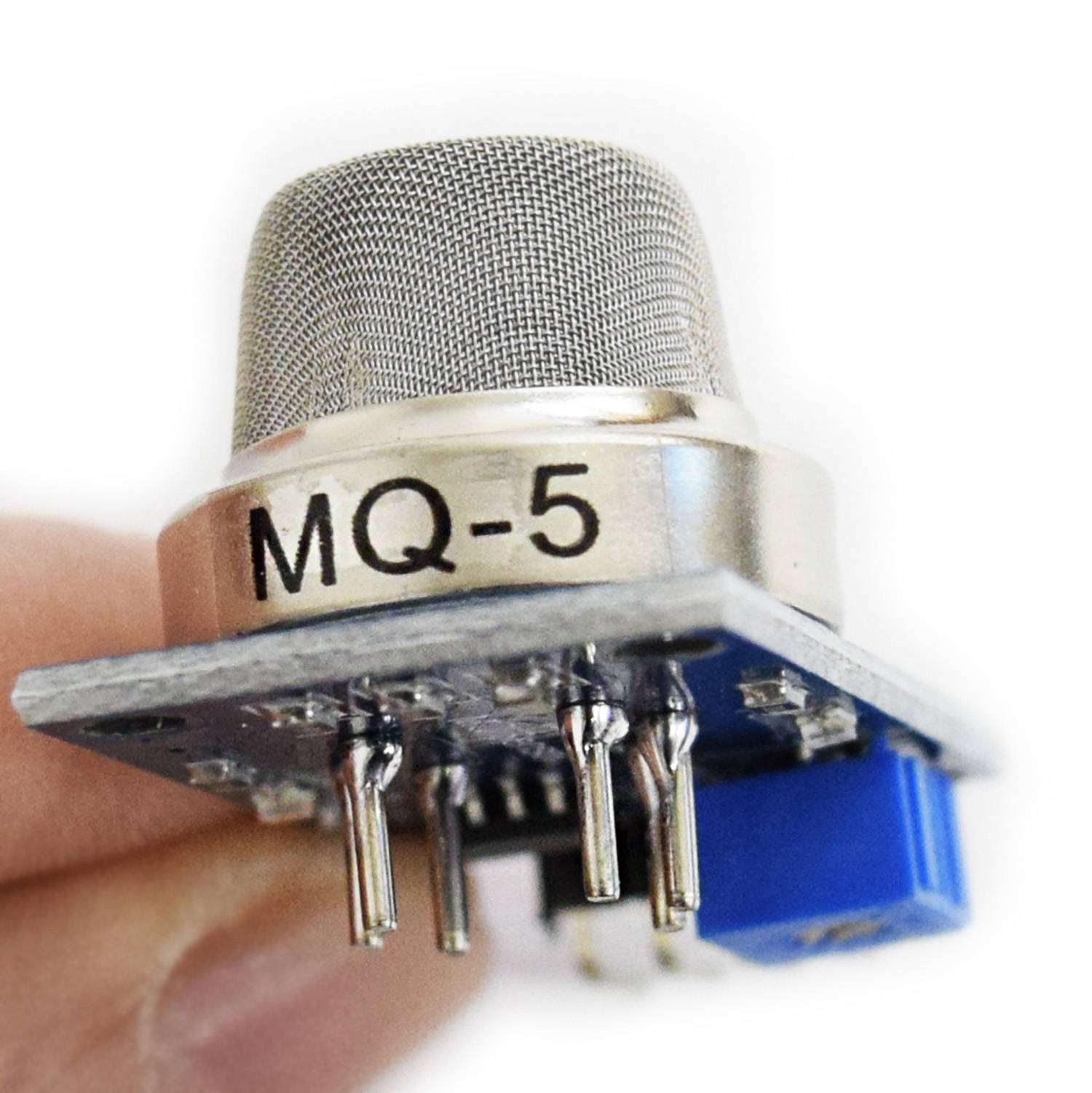

MQ-5 LPG, Natural Gas, and Town Gas Sensor Module for Arduino and Microcontrollers

The MQ-5 Gas Sensor Module is a versatile and highly sensitive device designed to detect LPG (Liquefied Petroleum Gas), Natural Gas (Methane), and Town Gas in the environment. Widely used in home safety systems, industrial monitoring, and DIY electronics, this sensor is ideal for projects where gas leak detection and safety monitoring are critical. Compatible with Arduino, Raspberry Pi, ESP8266, ESP32, and other microcontroller platforms, it offers both analog and digital outputs for flexible integration.

This sensor module is an essential component for building smart gas detection alarms, IoT-based safety systems, or automated ventilation controls. With its fast response time, reliable detection, and ease of use, the MQ-5 module is a top choice for hobbyists, students, and professionals who want to implement gas monitoring solutions in their projects.

Key Features

• Detects Multiple Gases: Sensitive to LPG, Natural Gas (Methane), and Town Gas.

• Analog and Digital Outputs: Analog output provides continuous gas concentration, while digital output signals when a threshold is exceeded.

• Adjustable Sensitivity: On-board potentiometer allows precise adjustment of the detection threshold.

• Fast Response: Quickly detects gas leaks to trigger alarms or automation.

• Compact Design: Easy to integrate into electronic projects or safety systems.

• Wide Operating Voltage: Compatible with 5V systems, ideal for microcontrollers.

• Versatile Applications: Suitable for DIY, industrial, and educational projects.

• Durable Build: Reliable sensor element ensures long-term use.

Applications

The MQ-5 Gas Sensor Module can be used in a variety of applications across different sectors:

1. Home Safety and Automation

• Gas leak alarms for kitchens and homes

• Smart home safety systems with automated ventilation

• IoT-based gas monitoring for remote alerts

2. Industrial Gas Monitoring

• Detecting gas leaks in factories or storage facilities

• Environmental monitoring in industrial plants

• Safety systems for LPG and methane handling

3. DIY Electronics Projects

• Arduino-based gas detection alarms

• IoT projects with real-time gas monitoring

• Educational kits for learning sensor integration

4. Robotics and Smart Systems

• Robots or drones equipped with gas leak detection capabilities

• Automated control systems triggered by gas detection

Technical Specifications

• Model: MQ-5 Gas Sensor Module

• Detectable Gases: LPG, Natural Gas (Methane), Town Gas

• Operating Voltage: 5V DC

• Outputs:

  • Analog Output (AO): Provides continuous gas concentration

  • Digital Output (DO): Triggered when threshold is exceeded

• Response Time: Fast (detects leaks in seconds)

• Sensitivity Adjustment: Via on-board potentiometer

• Dimensions: Compact module suitable for breadboard and PCB integration

• Operating Temperature: -10°C to 50°C

• Compatibility: Arduino, ESP32, ESP8266, Raspberry Pi, STM32, and other microcontrollers

How It Works

The MQ-5 sensor contains a heating element and a gas-sensitive resistor. When the sensor is exposed to combustible gases such as LPG or methane, the resistance of the sensing material changes. This change is then converted to an analog voltage output or compared to a set threshold to provide a digital signal.

• Analog Mode: Allows continuous measurement of gas concentration. Ideal for projects requiring precise monitoring.

• Digital Mode: Outputs HIGH or LOW signal when gas concentration exceeds a set limit. Ideal for triggering alarms, fans, or other automation systems.

The sensor’s adjustable potentiometer allows users to fine-tune the sensitivity to suit specific environments and safety requirements.

Advantages

1. Multi-Gas Detection: Capable of detecting LPG, Natural Gas, and Town Gas.

2. Dual Output Options: Analog and digital outputs provide flexibility in project design.

3. Fast Response: Quickly reacts to the presence of combustible gases.

4. Adjustable Sensitivity: Customize detection thresholds according to your needs.

5. Easy Integration: Works with popular microcontrollers and IoT platforms.

6. Durable and Reliable: Long-lasting performance for continuous monitoring.

Example Use Case

Consider a smart kitchen gas alarm system: By connecting the MQ-5 Gas Sensor Module to an Arduino or ESP32, the system can monitor LPG or methane levels in real-time. When gas levels exceed safe thresholds, the digital output triggers a buzzer or sends an alert via Wi-Fi to a mobile device. This provides an automated safety solution, reducing the risk of accidents caused by gas leaks.

Conclusion

The MQ-5 LPG, Natural Gas, and Town Gas Sensor Module is an essential tool for anyone building gas detection, safety, or IoT monitoring systems. With its dual output modes, adjustable sensitivity, and compatibility with popular microcontrollers, it offers both flexibility and reliability for DIY enthusiasts, students, and professionals. Its fast response and durable design make it ideal for projects ranging from home safety alarms to industrial gas monitoring systems.
