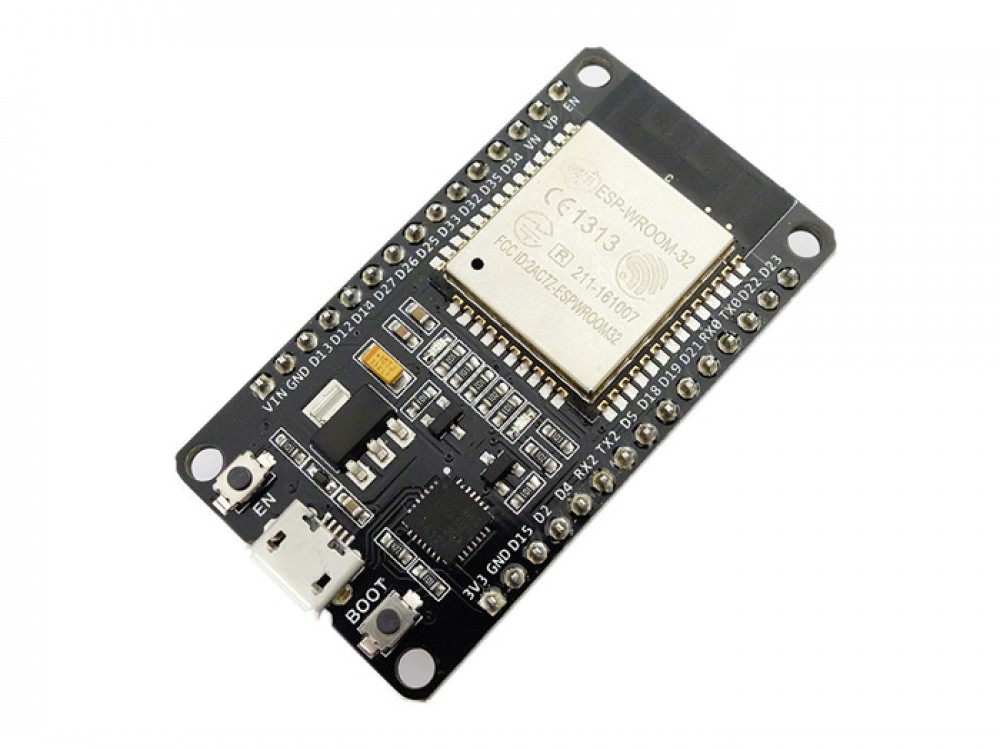

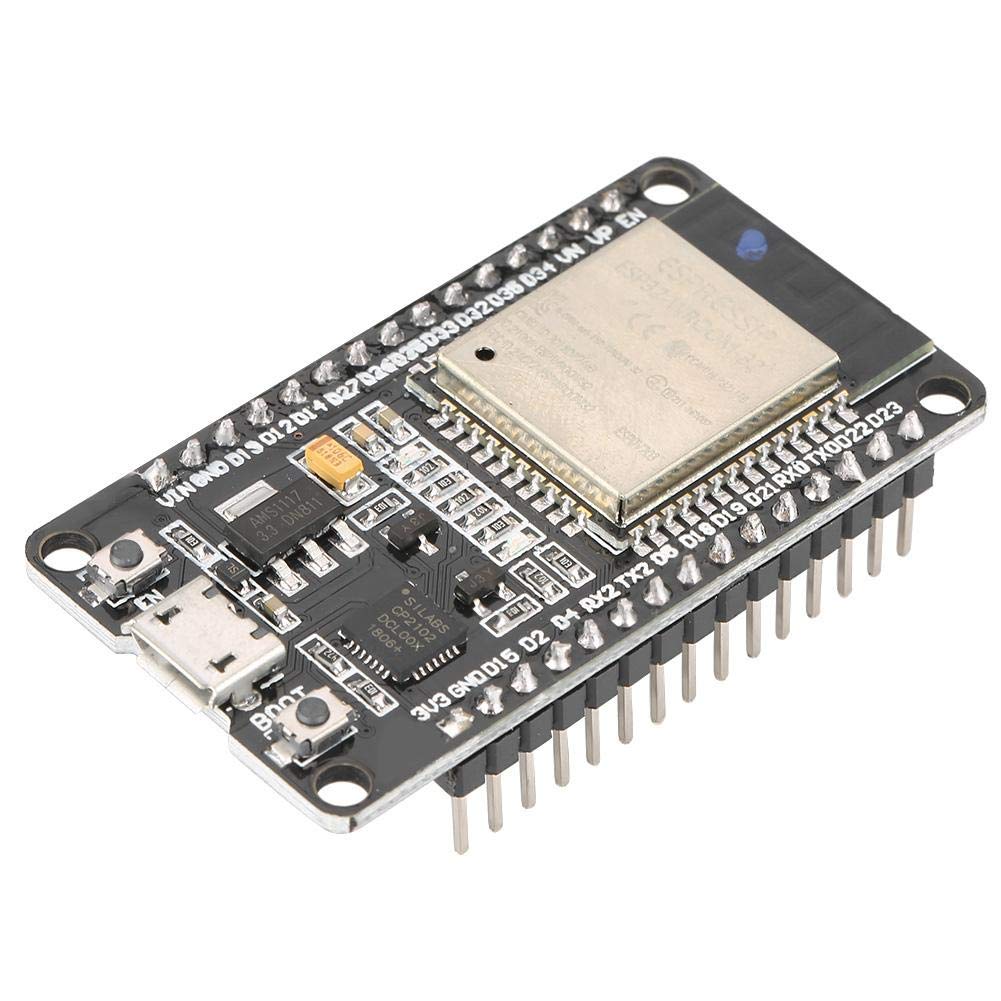

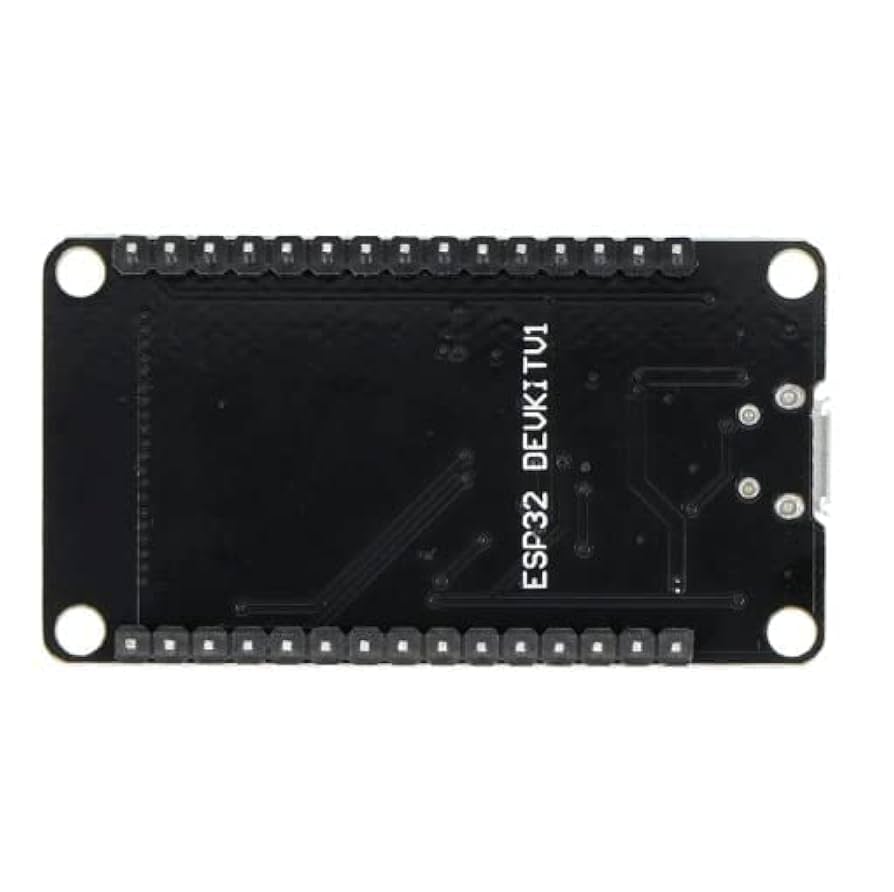

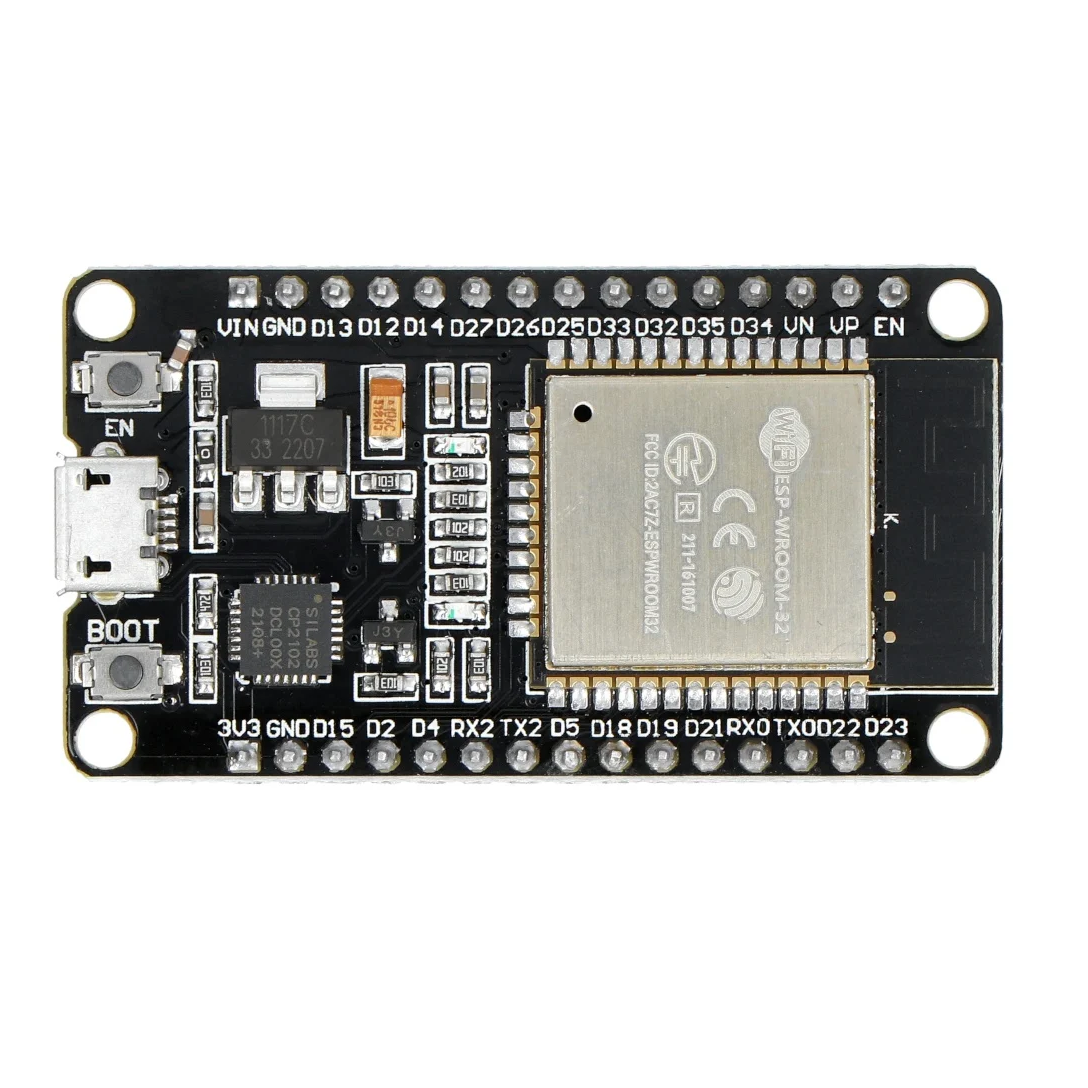

ESP32 Development Board (WIFI and Bluetooth) 30-Pin Micro usb

Key Features:

📶 Dual WiFi & Bluetooth – Supports 2.4GHz WiFi (802.11 b/g/n) and Bluetooth 4.2 (BLE + Classic). ⚡ Dual-Core Xtensa LX6 CPU – 240MHz clock speed for multitasking. 🔌 30-Pin GPIO Breakout – Includes ADC, DAC, PWM, UART, SPI, I2C, and capacitive touch. 💻 Micro USB Port – Easy programming & power (5V input). 🔋 Low Power Modes – Ideal for battery-powered IoT devices. 🛠️ Arduino & ESP-IDF Compatible – Works with Arduino IDE, MicroPython, and Lua.

Technical Specifications:

• Chipset: ESP32-WROOM-32 (or equivalent)

• CPU: Dual-core 32-bit LX6 (up to 240MHz)

• Wireless: WiFi 2.4GHz + BT/BLE 4.2

• GPIO Pins: 30 (multifunctional, some input-only)

• Analog Inputs: 12-bit ADC (15 channels)

• Analog Outputs: 8-bit DAC (2 channels)

• Flash Memory: 4MB (default)

• SRAM: 520KB

• Operating Voltage: 3.3V (5V tolerant inputs)

• USB Interface: Micro USB (CP2102 or CH340G chip)

• Dimensions: ~55mm × 28mm

Applications:

🌐 IoT Devices (Smart Home, Sensors)📱 Bluetooth/WiFi Controllers🤖 Robotics & Automation🔊 Wireless Audio Streaming🎮 DIY Game Consoles

Package Includes:

• 1 × ESP32 Development Board (30-pin, Micro USB)

• (Optional) Header pins (unassembled)

⚠️ Usage Notes:

• 3.3V logic level – Use level shifters for 5V peripherals.

• WiFi/BT antenna is PCB-integrated – Keep away from metal obstructions.

• Power via Micro USB or 5V pin (built-in regulator).
