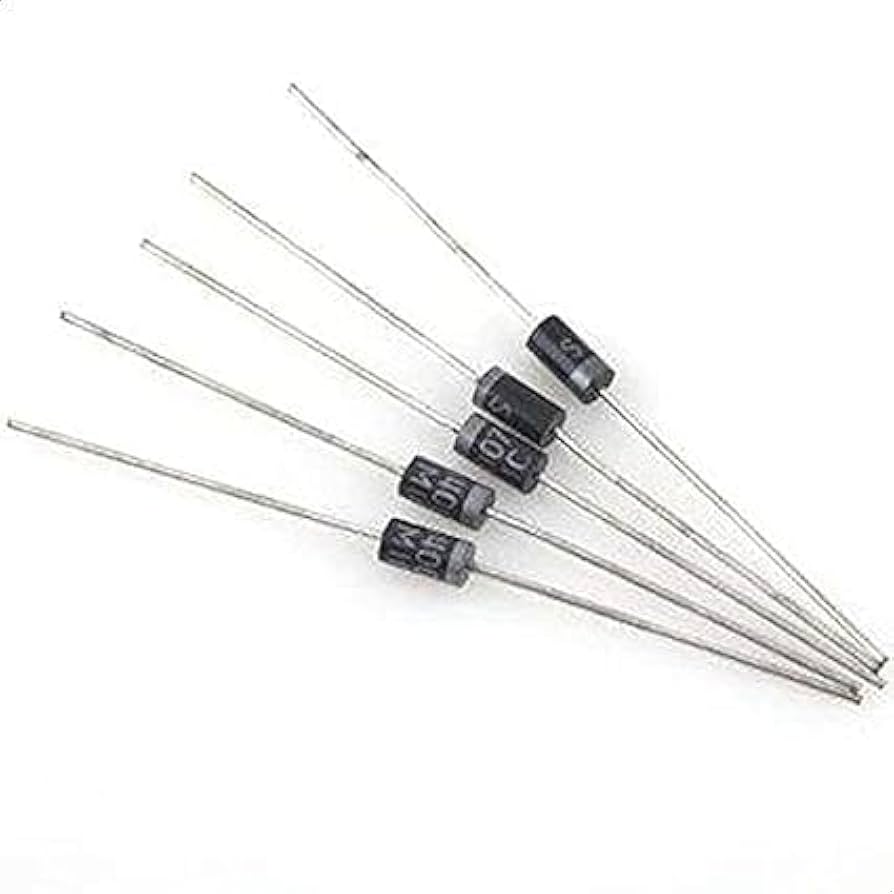

1N4007 General Purpose Silicon Diode 1A - 1000V
In Stock
Categories: Diodes
Overview
Description
🔹 Key Features
✅ High Voltage Rating – 1000V Peak Reverse Voltage (PIV). ✅ 1A Forward Current – Suitable for general-purpose power applications. ✅ Low Forward Voltage Drop – ~0.6V to 1.1V (typical for silicon diodes). ✅ Fast Recovery Time – Efficient for 50/60Hz rectification. ✅ Durable Construction – Axial-leaded package for easy PCB or breadboard mounting. ✅ Widely Available – Industry-standard replacement for 1N4001-1N4007 series.
🔹 Technical Specifications
| Parameter | Details |
|---|---|
| Diode Type | General-Purpose Rectifier |
| Max Forward Current (IF) | 1A (Continuous) |
| Peak Reverse Voltage (PIV) | 1000V |
| Forward Voltage Drop (VF) | ~1.1V @ 1A |
| Reverse Leakage Current (IR) | <5µA @ 25°C |
| Operating Temperature | -65°C to +175°C |
| Package Type | DO-41 (Axial Lead) |
| Typical Applications | Power Supplies, Rectifiers, Protection Circuits |
🔹 Pin Configuration (DO-41 Package)
-
Anode (A) → Positive side (marked with a stripe on the diode body).
-
Cathode (K) → Negative side (unmarked).
🔹 Common Applications
-
AC to DC Full-Wave / Half-Wave Rectification
-
Used in bridge rectifiers for converting AC to DC.
-
-
Reverse Polarity Protection
-
Prevents damage if power is connected backward.
-
-
Freewheeling Diode (Flyback Diode)
-
Protects circuits from voltage spikes (e.g., relays, motors).
-
-
Voltage Clipping & Signal Demodulation
-
Basic AM radio signal detection.
-
