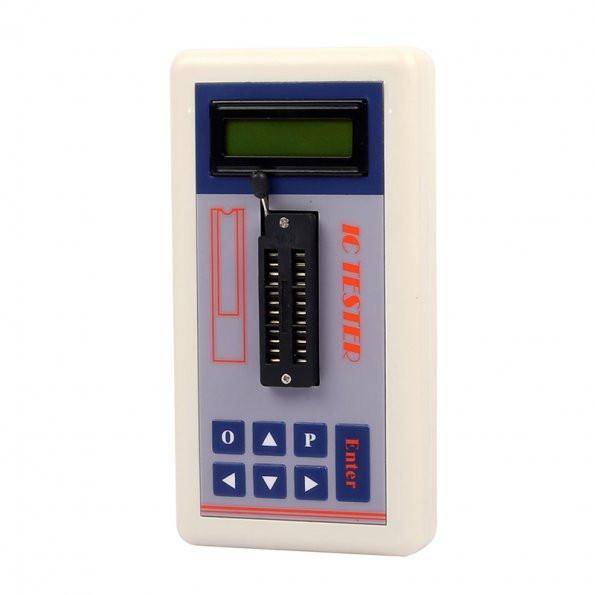

Digital IC Tester
Electra Store
SKU: TL-26574
1,650.00 EGP
In Stock
1
Categories: Digital Multimeter
Description
Description
| Catalogue | Function | |
| Search | Auto mode | Device search , the unknown model chip inserted in ic seat can automatically identify the part number ( Automatic identification without input) ( other directories are auto- mode ) |
| 5.0v mode | ||
| 3.3v mode | ||
| 74HC | 74HC series of logic device test (of the same, and 74LS series base drive level (different) need to manually enter the model) | |
| 74LS | 74LS series of logic device test (of the same, and 74HC series base drive level (different) need to manually enter the model) | |
| CD40 | CD4000 series of logic device test (different, and HEF40 series base drive level (the same) need to manually enter the model) | |
| HEF40 | HEF4000 series of logic device test (different, and CD40 series base drive level (the same) need to manually enter the model) | |
| 45/145 | 45 series 145 series logic device test (the need to manually enter the model) | |
| OTHER | Interface drive device testing, such as: MAX232, MAX485, 75175, 75176, 75c11.. (the need to manually select the model) | |
| AMP | Operational amplifier, comparator class testing, such as: LM324, LM358, LM339, LM393, LM2902...(the need to manually enter the model). | |
| TR | Transistor identification , and automatically determine the transistor types and pin order . Identifiable NPN , PNP, transistors , N- MOS , P -MOS way thyristor , triac , common anode common cathode rectifier automatic identification without input ) | |
| ZD | Zener regulator value test , test regulator regulator 0v-50v range accuracy 0.01v automatic identification without the need to enter | |
| LIGHT | Optocoupler secondary the saturation voltage test , can test the the ordinary 4 feet optocoupler secondary saturation voltage automatic identification without input ) | |
| OFF | Shutdown | |
| rompt | explanation |
| OK | Tests are normal |
| Batter | Battery voltage |
| Not found | Can’t find |
| Fault | The chip damaged or type mismatch |
| Open | Open circuit |
| Not supported | non-support |
| NPN | Triode |
| PNP | Triode |
| N-MOS | FET |
| P-MOS | FET |
| 1-SCR | Way SCR |
| 2-SCR | Triac |
| 2D | Common cathode and common anode rectifier |
| A?k?b?c?e?g | Specific pin |
| Out of range | Zener voltage beyond the scope |
| ERR1?2 | Self-test failure |
