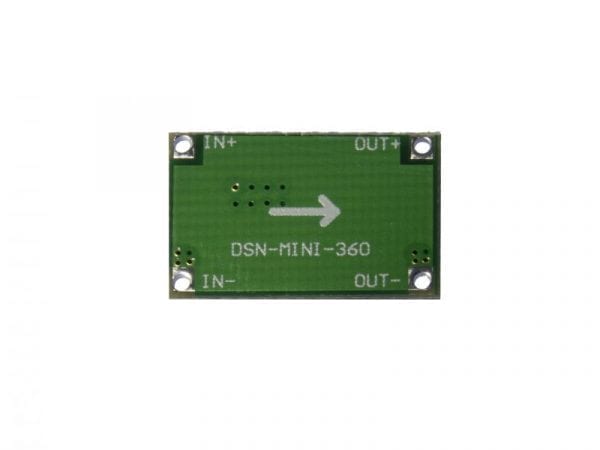

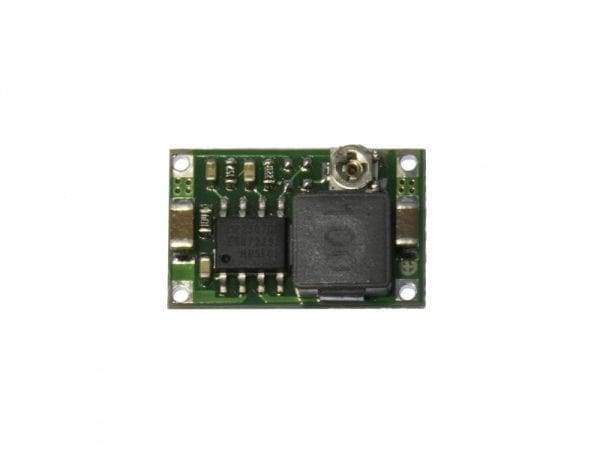

DC-DC Step-Down Mini 360 Buck Converter
Electra Store
SKU: MD-27845
40.00 EGP
In Stock
1
Categories: Converters
Description
Specifications:
- MPS MP2307DN buck regulator IC
- Input Voltage: 4.75 – 23VDC
- Output Voltage: 1.0 – 17VDC selectable
- 3A surge current, 1.8A continuous rated current
- Maximum conversion efficiency of 95% (5Vin, 3.3Vout ~200mA output)
- 340kHz switching frequency
- 30mV no-load output ripple
- 0.5% load regulation
- 2.5% voltage regulation
- -40 to 85°C operational temperature range
- Built-in 160°C thermal shutdown
- Size: 17x11x3.8mm (LxWxH)
