CYS-S0650 55Kg Digital Metal Steering Gear Servo Motor
Electra Store
SKU: MO-27077
1,210.00 EGP
In Stock
1
Categories: Servo Motors
Description
Description
| Type | Digital |
|---|---|
| Control System | ( )Pulse Width Control 1500usec Neutral |
| Operating Voltage | 6.0~7.4Volts |
| Operating Temperature Range | (-)10 to 50 degree C |
| Operating Speed (6.0V) | 0.13sec/60° at no load |
| Operating Speed (7.4V) | 0.11sec/60° at no load |
| Stall Torque (6.0V) | 52kg.cm |
| Stall Torque (7.4V) | 55kg.cm |
| Operating Angle | 45deg.one side pulse traveling 500 usec |
| Direction | Anticlockwise/Pulse Traveling 1000~2000usec |
| Current Drain (6.0V) | 20mA/idle and 120mA no load operating |
| Current Drain (7.4V) | 20mA/idle and 150mA no load operating |
| Stall Current | 10A/13.4A |
| Dead Band Width | 4usec |
| Motor Type | NdFeB motor |
| Bearing Type | Dual Ball Bearing |

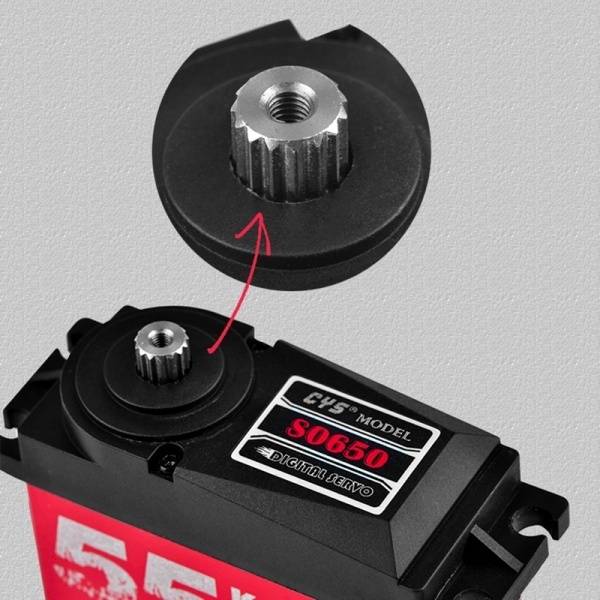

| Horn gear spline | 15T |
| Gear Type | Steel |

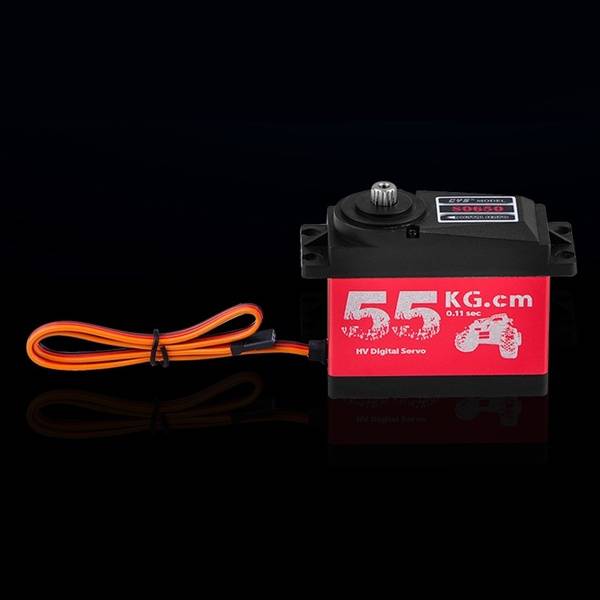

| Connector Wire Length | 300mm |
| Weight | 202± 1 g |

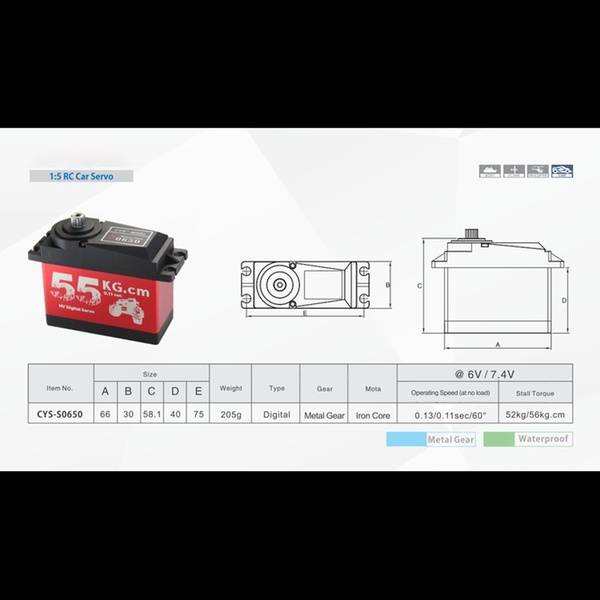

| Size | 66*30*56mm |
| Wire info | Brown/Black = Negative |
| Red = Positive | |
| Orange/White = Signal |
