Key Features:

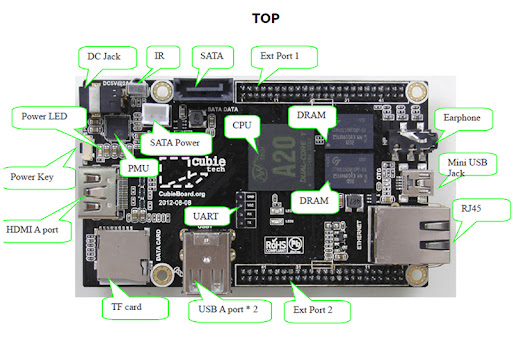

✔ Dual-Core ARM Cortex-A7 CPU – 1.0 GHz (Allwinner A20) + Mali-400MP2 GPU for light graphics. ✔ 1GB DDR3 RAM – Smooth multitasking for Linux-based applications. ✔ 4GB NAND Flash + microSD Slot – Expandable storage (supports up to 64GB). ✔ Rich I/O Connectivity:

• HDMI 1080p output

• 10/100M Ethernet

• 2x USB 2.0, 1x OTG

• SATA 2.0 (for HDD/SSD connection)

• IR receiver, 96-pin GPIO (for hardware hacking) ✔ OS Support – Runs Linux (Debian, Ubuntu, Android) via microSD or NAND. ✔ Low Power – 5V DC input (ideal for 24/7 embedded projects).

Applications:

• Home Server/NAS – File storage with SATA support.

• IoT Gateway – Sensor data aggregation and cloud connectivity.

• Media Center – Lightweight Kodi/XBMC playback via HDMI.

• Robotics/Automation – GPIO-controlled projects.

• Educational Tool – Learn ARM architecture and Linux.

Technical Specifications:

• SoC: Allwinner A20 (2x Cortex-A7 + Mali-400MP2).

• Memory: 1GB DDR3 @480MHz.

• Storage: 4GB NAND + microSD (bootable).

• Video Out: HDMI 1.4 (1080p), CVBS (composite).

• Networking: 10/100M Ethernet, Wi-Fi (via USB dongle).

• Power: 5V/2A DC (barrel jack or GPIO header).

Package Includes:

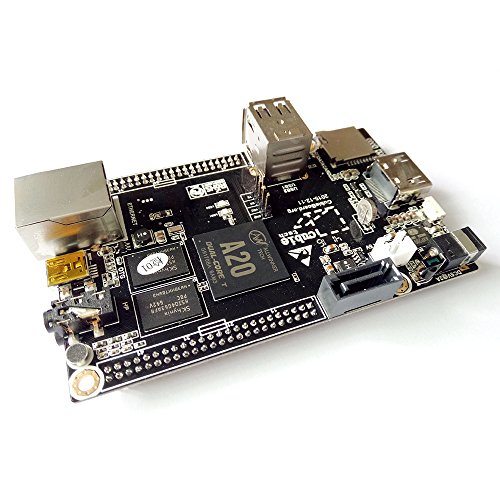

• 1x Cubieboard2 A20 Mini PC (board only)

Why Choose the Cubieboard2?

✅ Open-Source Friendly – Active community and kernel support. ✅ SATA Advantage – Rare in mini PCs for direct HDD/SSD use. ✅ GPIO Richness – 96 pins for sensors, motors, and peripherals.
