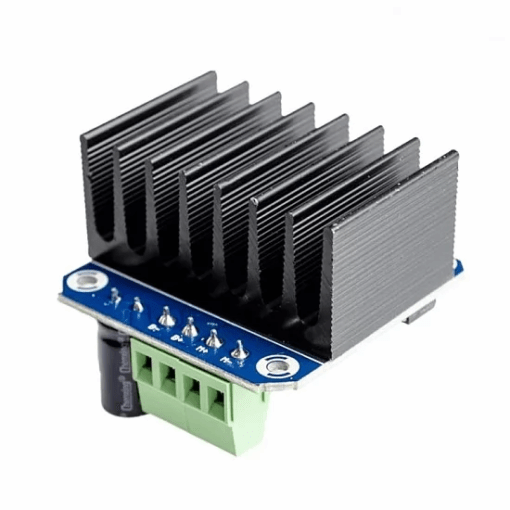

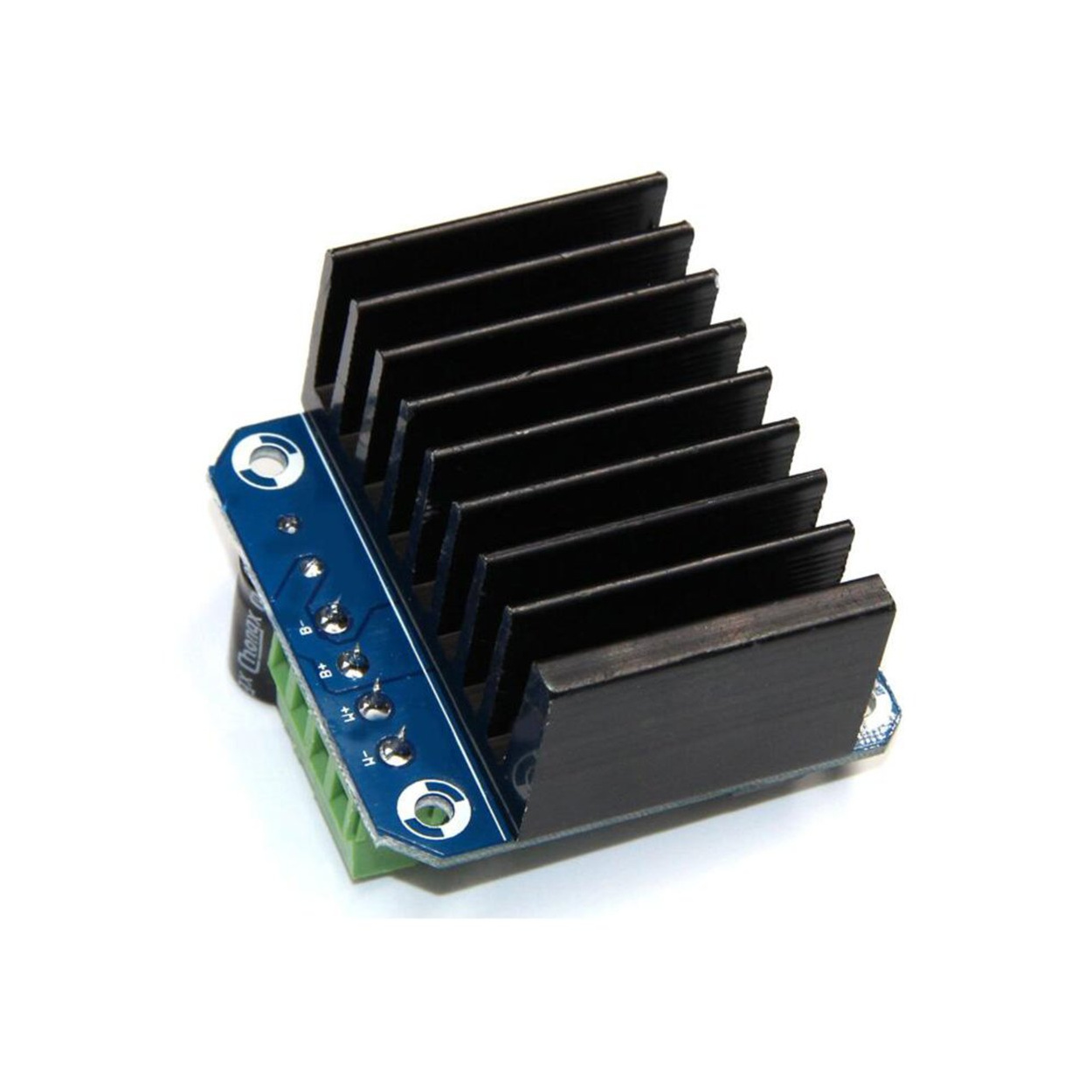

BTS7960 H-Bridge High-Power DC Motor Driver 43A

BTS7960 H-Bridge High-Power DC Motor Driver 43A

Key Features:

✔ Massive 43A Peak Current (27A continuous) - Handles high-torque motors effortlessly ✔ Integrated BTS7960 ICs - Dual high-efficiency MOSFET H-bridges with low R_DS(on) (16mΩ) ✔ Wide Voltage Range - 5.5V~27V input (supports 12V/24V systems) ✔ PWM & Direction Control - Up to 25kHz PWM frequency for smooth speed regulation ✔ Built-in Protections - Thermal shutdown, overcurrent, and undervoltage lockout ✔ Diagnostic LEDs - Visual feedback for power & fault conditions

Technical Specifications:

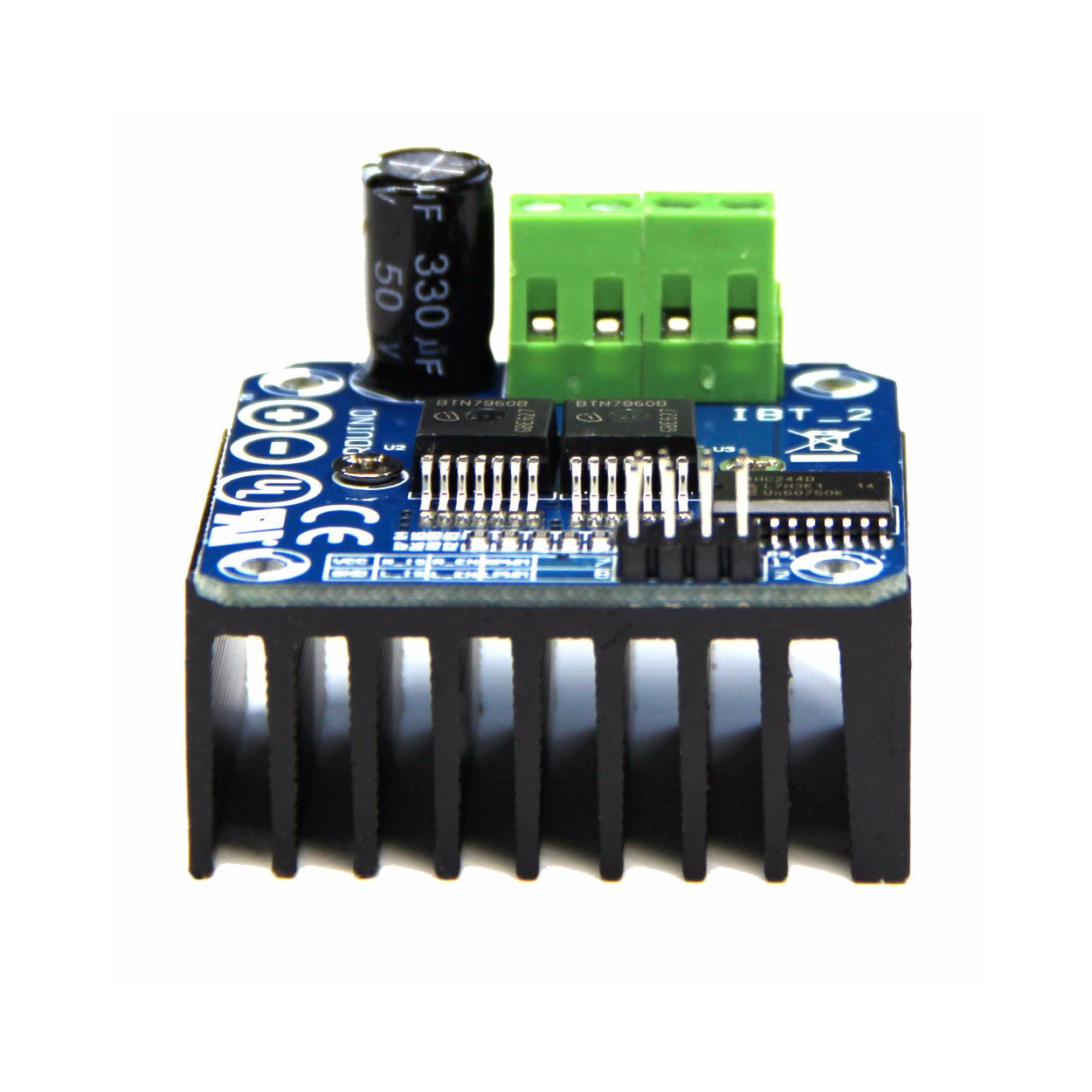

• Driver IC: BTS7960 (2x for full H-bridge)

• Operating Voltage: 5.5V–27V DC

• Current Capacity:

  • Continuous: 27A

  • Peak (10sec): 43A

• PWM Frequency: 0–25kHz

• Efficiency: >95% (typ.)

• Control Signals:

  • INH/IN (Enable/Direction)

  • PWM (Speed control)

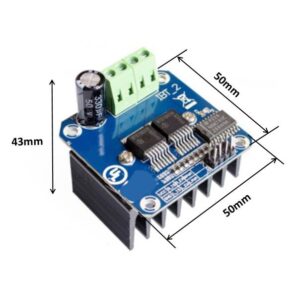

• Dimensions: ~50mm × 50mm

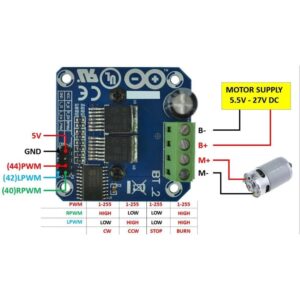

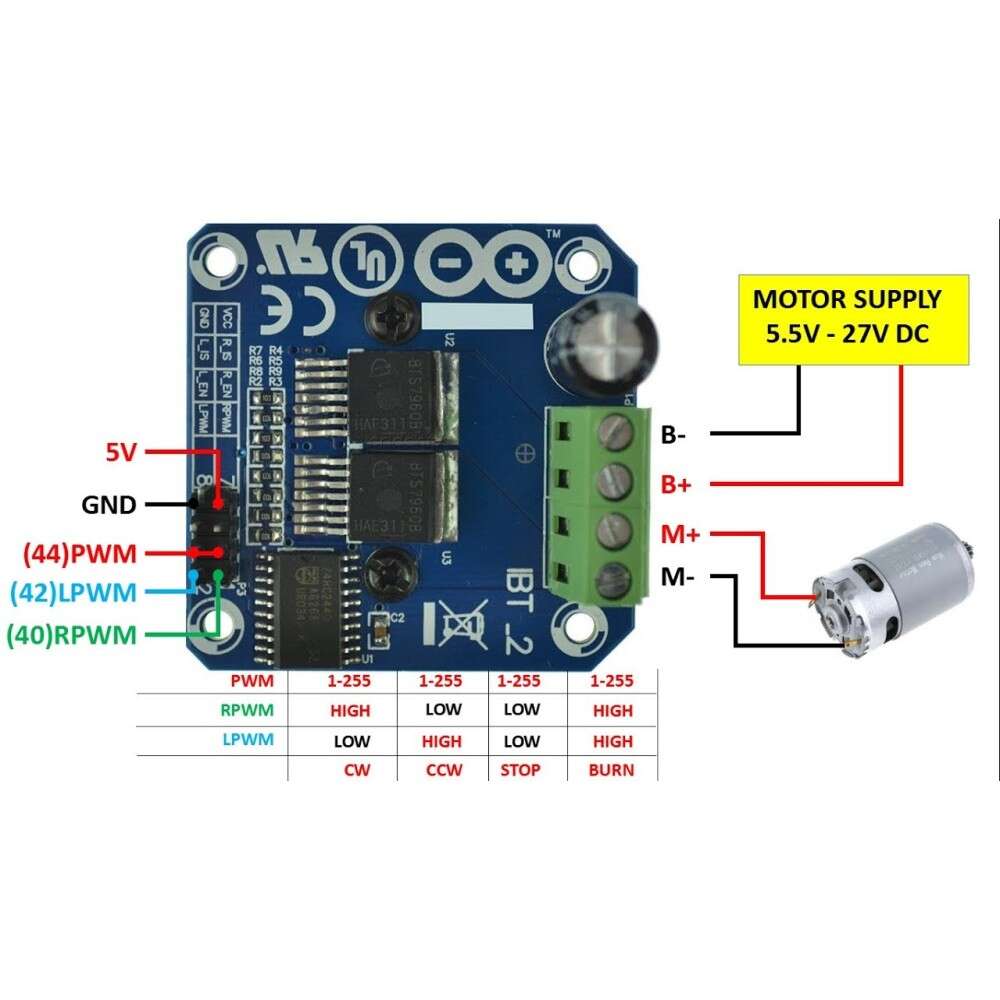

Wiring & Control:

1. Motor Connections:

   • OUT1/OUT2 → Motor terminals

2. Control Logic:

   • INH (Enable): HIGH = active

   • IN (Direction): HIGH/LOW = CW/CCW

   • PWM (Speed): 0–100% duty cycle

Applications:

• Electric Vehicles (e-bikes, scooters)

• Industrial Robots (actuators, CNC axes)

• Heavy-Duty Drones (lift motors)

• High-Torque Automation (conveyors, winches)

Package Includes:

• 1 × BTS7960 driver module

• 1 × Terminal block (for motor/power)

⚠ Critical Usage Notes:

• Heat Management: Requires active cooling (heatsink/fan) at >15A

• Power Supply: Use low-ESR capacitors near module

• Never short motor leads during operation

The ultimate solution when SG90/L298N drivers just won’t cut it! ⚡🤖
