Bluetooth Audio Receiver Module 3.3Vdc CA-6928

Bluetooth Audio Receiver Module 3.3V DC – CA-6928

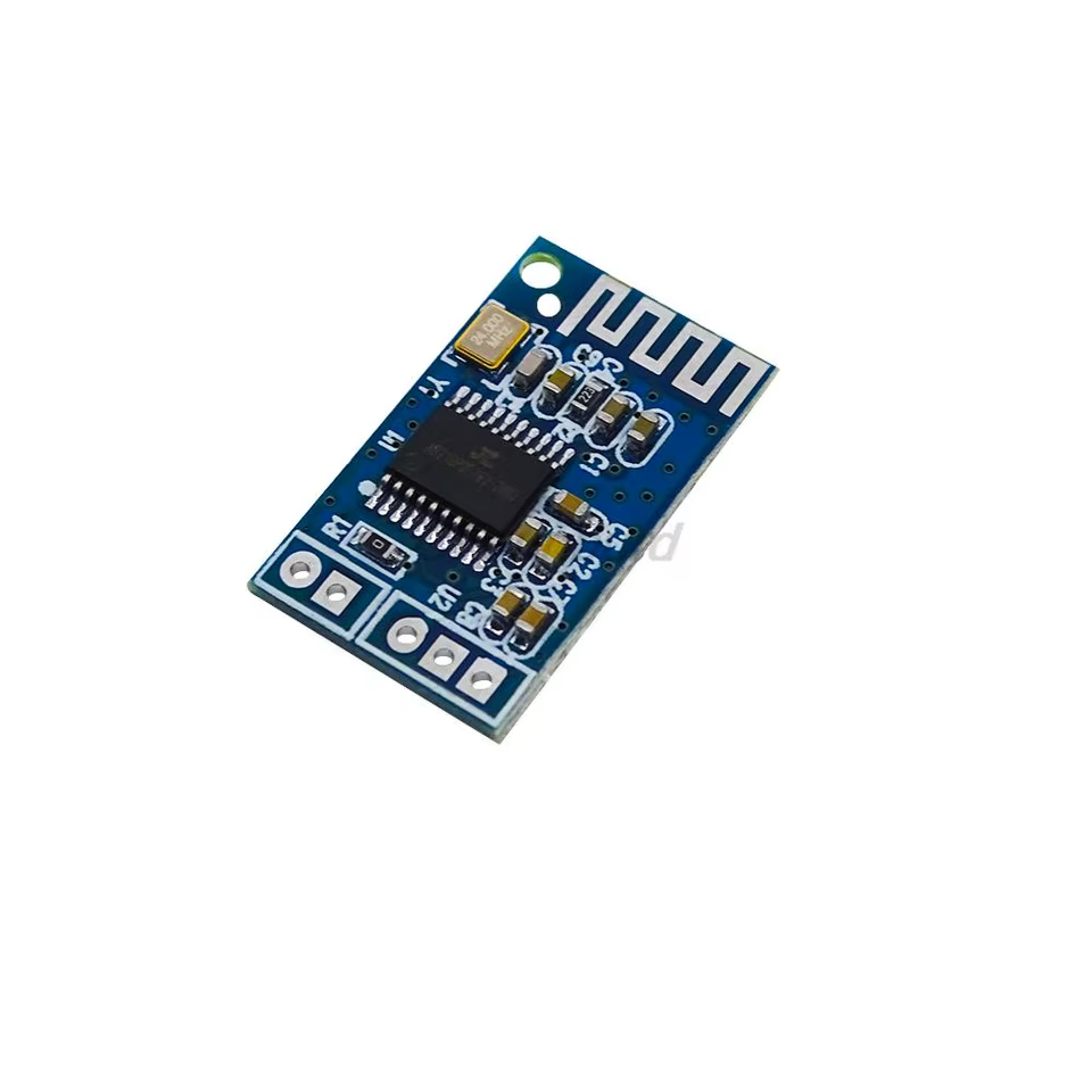

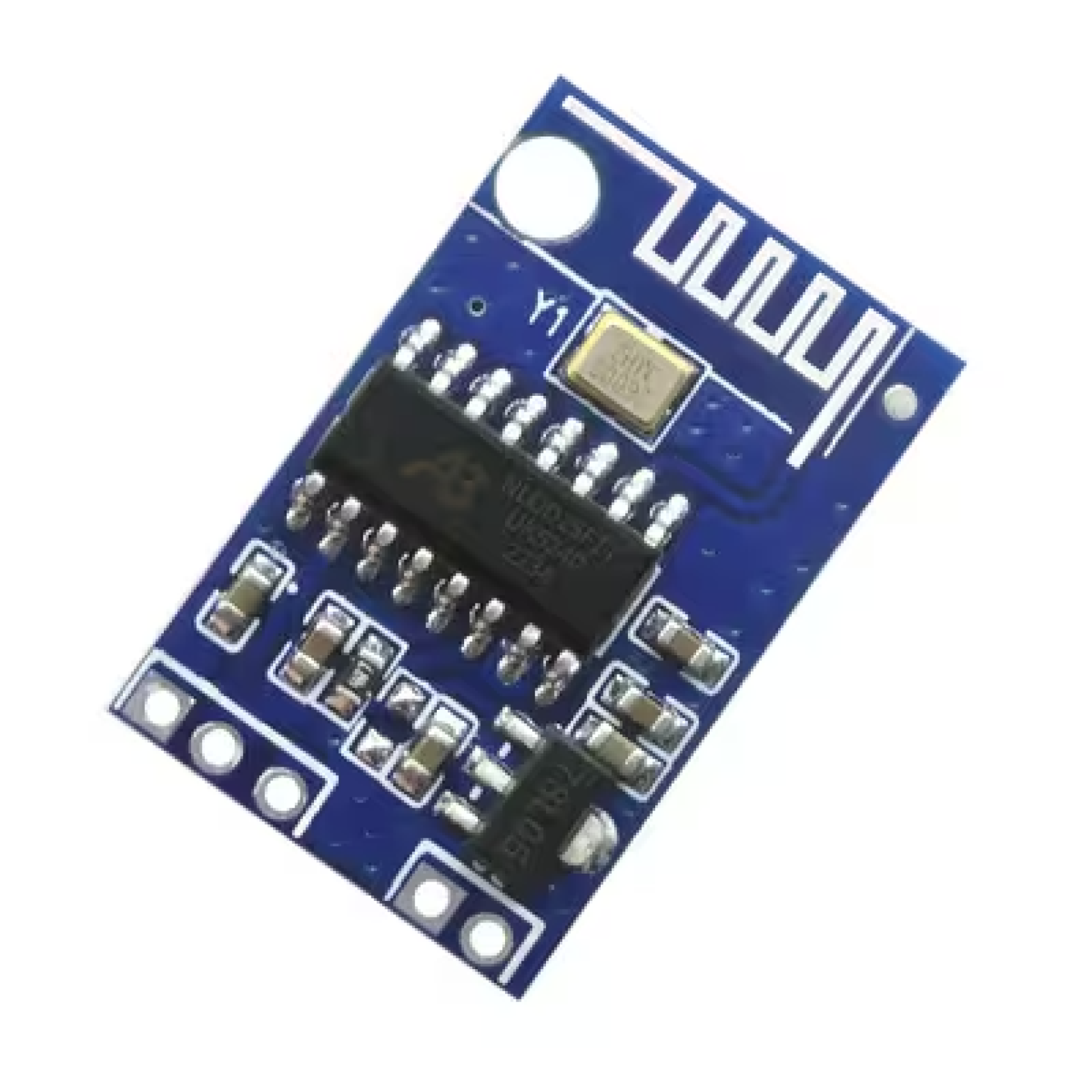

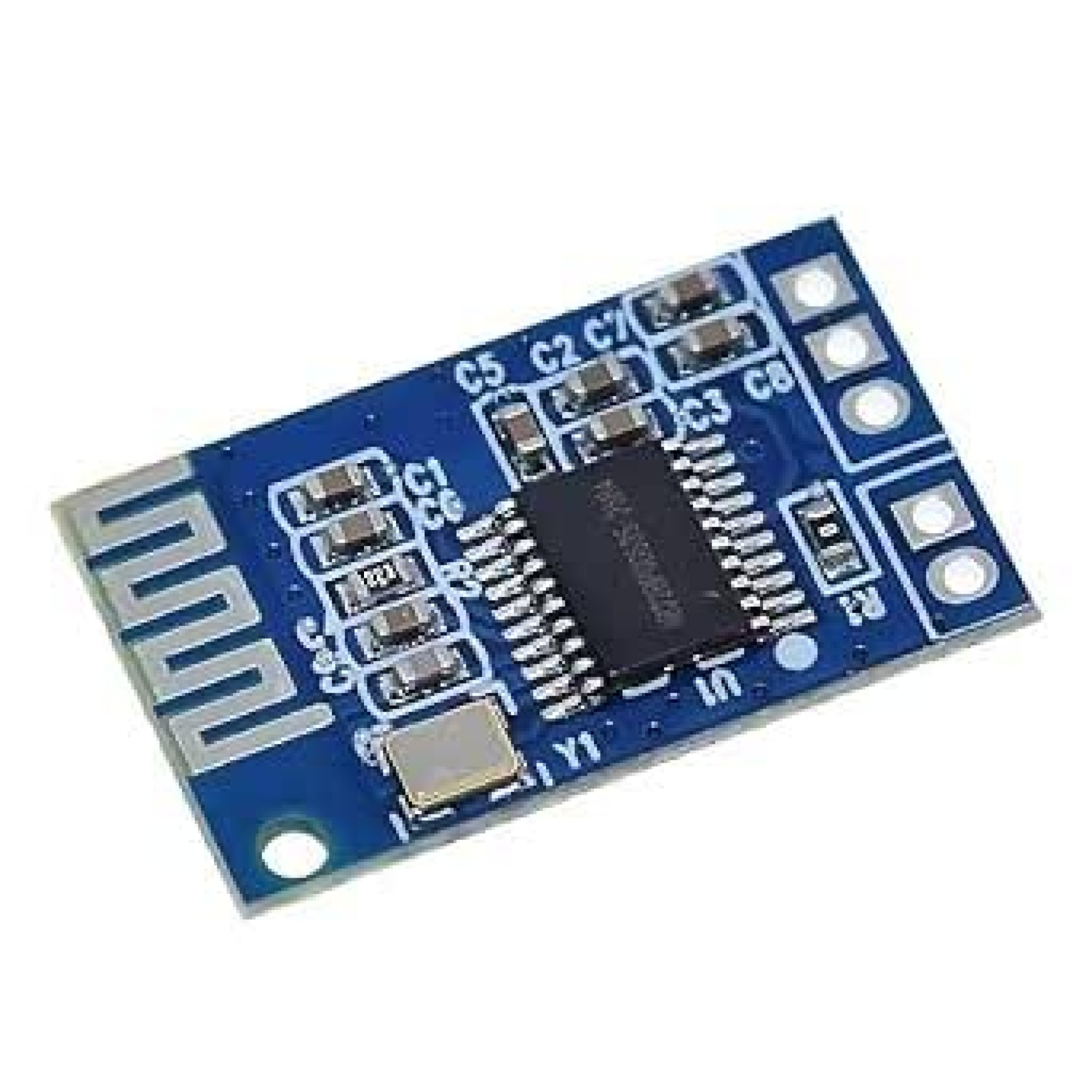

The CA-6928 Bluetooth Audio Receiver Module is a compact and efficient wireless audio solution designed to add Bluetooth functionality to amplifiers, speakers, and DIY audio systems. Built around the CA-6928 Bluetooth audio receiver module, this module enables seamless audio streaming from smartphones, tablets, and other Bluetooth-enabled devices.

Operating within a low voltage range of 3.3V to 5V DC, the CA-6928 is ideal for embedded systems and portable electronics. It uses Bluetooth technology (commonly version 4.1 or 5.0 depending on the variant), providing stable wireless connectivity with a typical range of up to 10 meters.

This module outputs stereo audio signals (L/R channels) that can be connected directly to an external amplifier or active speakers. Some versions also include a small onboard amplifier (up to 2×3W), allowing direct connection to speakers without additional circuitry.

Its ultra-compact size (around 24 × 15 mm) and low power consumption make it perfect for space-constrained projects. The module also features LED indicators for pairing and connection status, making it user-friendly and easy to integrate.

Whether you're upgrading a traditional speaker system to wireless, building a DIY Bluetooth speaker, or integrating audio streaming into an embedded system, the CA-6928 module offers a simple and cost-effective solution.

Features:

• Bluetooth audio receiver module (v4.1 / v5.0 depending on version)

• Operating voltage: 3.3V – 5V DC

• Wireless range up to 10 meters

• Stereo audio output (L/R channels)

• Some variants include built-in 2×3W amplifier

• Compact and lightweight design

• Low power consumption

• LED status indicator (pairing/connected)

• Easy integration with amplifiers and speakers

Specifications:

• Model: CA-6928

• Supply Voltage: 3.3V – 5V DC

• Bluetooth Version: 4.1 / 5.0 (varies)

• Transmission Distance: ≥10 meters

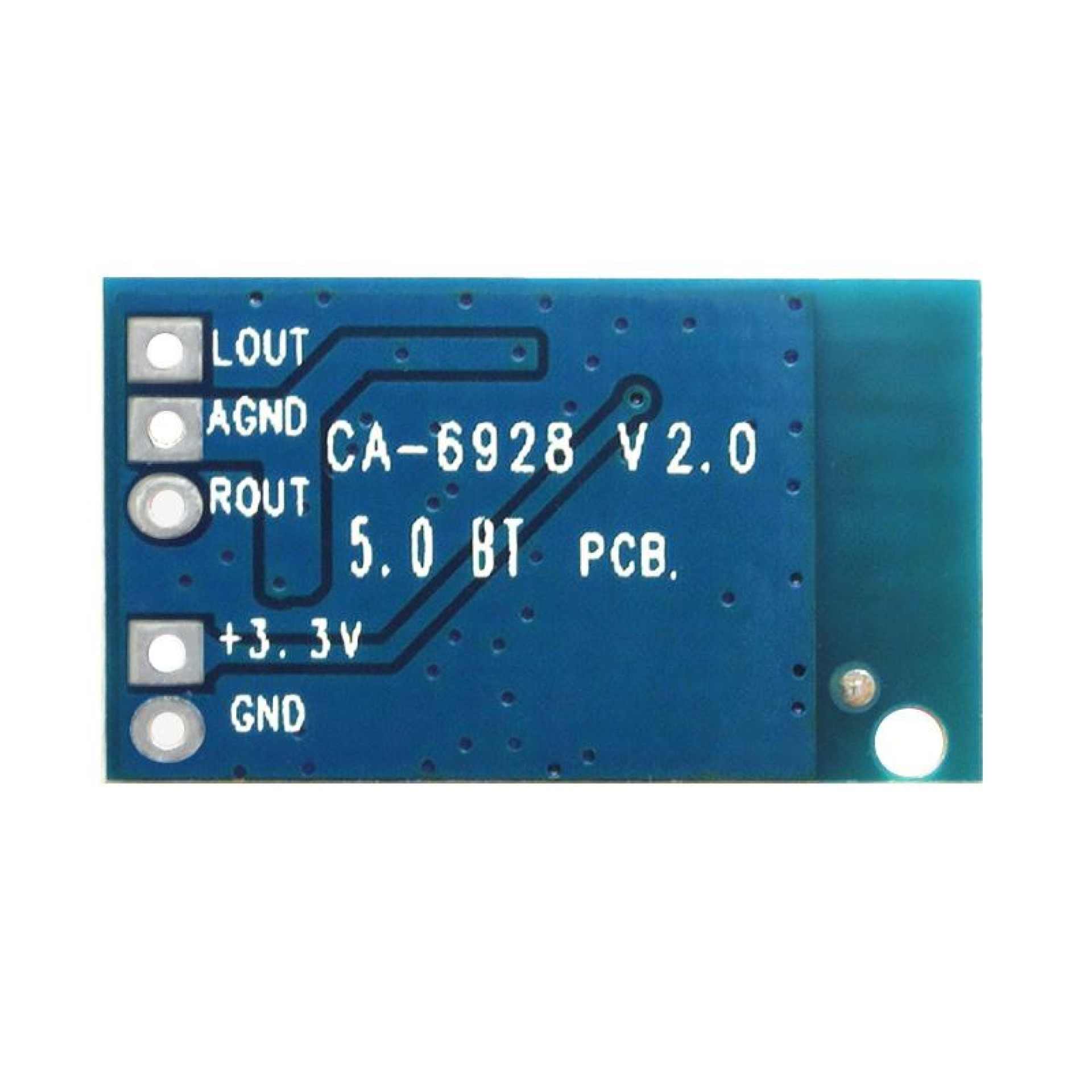

• Audio Output: Stereo (L, R, GND)

• Output Power: Up to 3W per channel (if amplifier version)

• Speaker Impedance: 4Ω – 8Ω (for amp versions)

• Dimensions: ~24mm × 15mm

• Operating Temperature: -40°C to +80°C

Applications:

• DIY Bluetooth speaker systems

• Wireless audio receivers for amplifiers

• Car audio upgrades (Bluetooth input)

• Home audio systems

• Portable music players

• IoT and embedded audio projects

• Consumer electronics and gadgets
