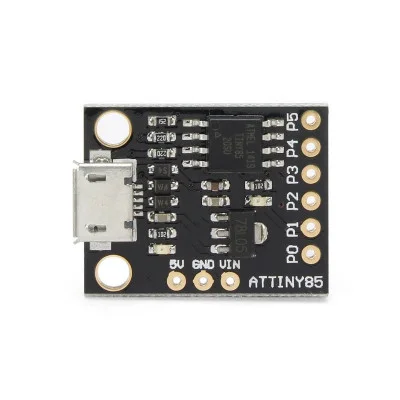

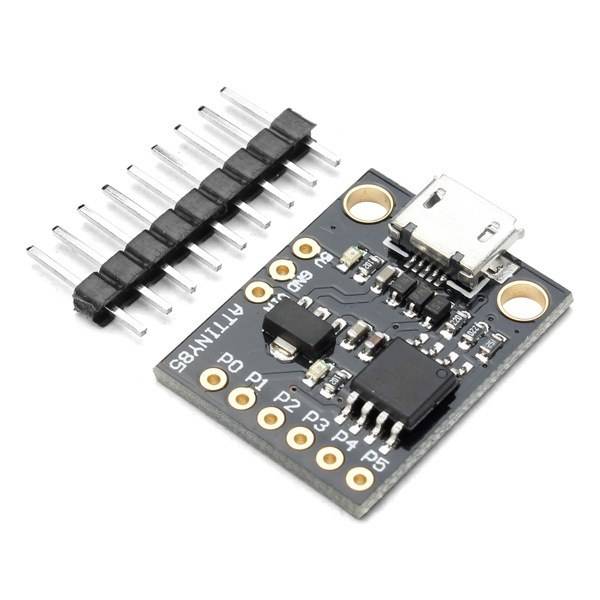

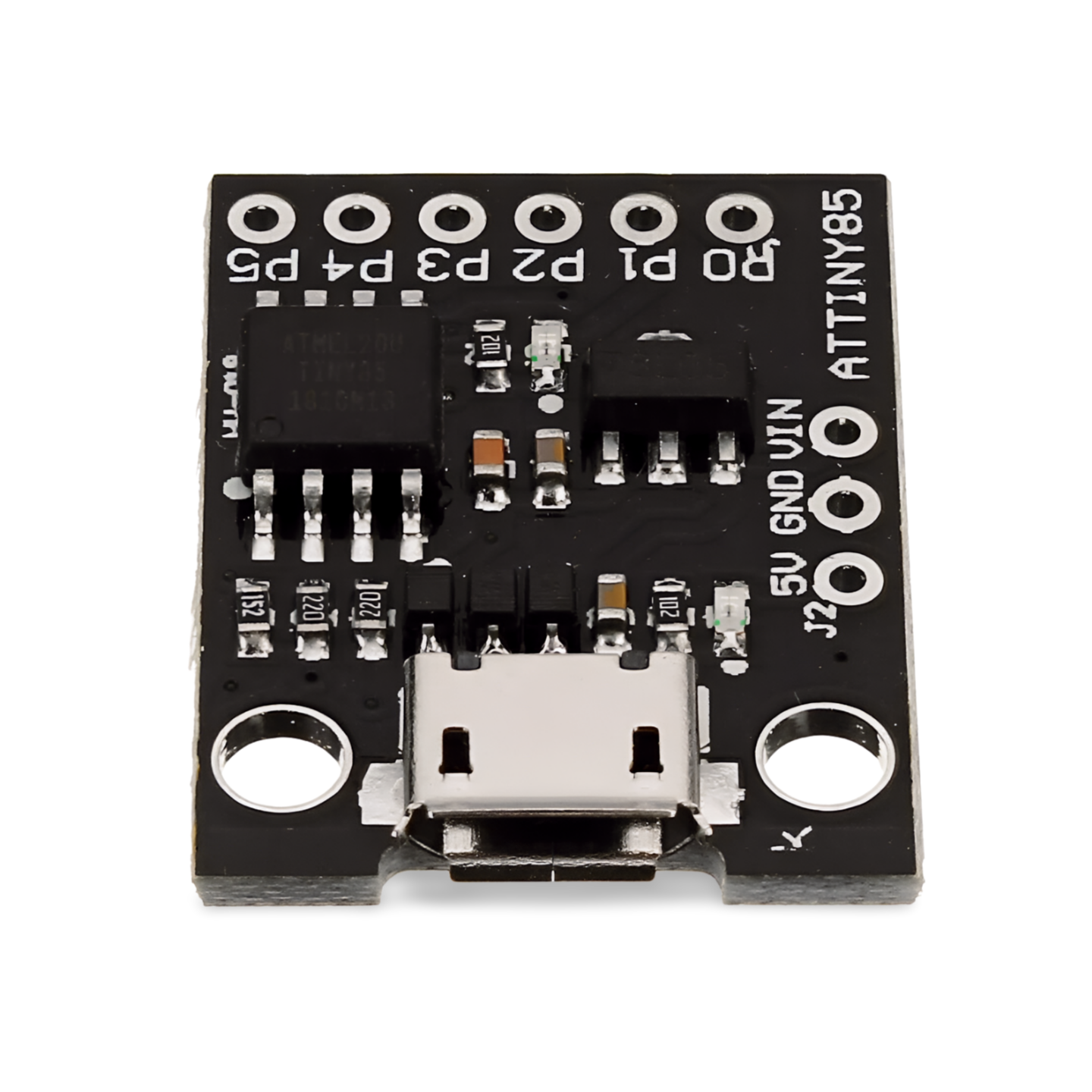

Mini ATTinY85 Micro USB Development Board
Electra Store
SKU: DB-26616
200.00 EGP
In Stock
1
Categories: Arduino Boards
Description
Attiny85 Arduino Micro Development Board
The ATtiny85 based mini development board is similar to the Arduino, but cheaper and smaller (of course a bit less powerful). Through the whole host of shields to extend its functionality and the ability to use the familiar Arduino IDE, this board is a great way to jump into microcontroller electronics.| Microcontroller: | ATtiny85 |
| Operating Voltage: | 5 V |
| Input Voltage: | 5 - 12 V |
| Digital I/O Pins: | 6 (of which 2 are used for USB) |
| PWM Pins: | 3 |
| Analog Input Pins: | 4 |
| DC Current per I/O Pin: | 40 mA |
| Flash Memory: | 8 KB (of which about 2 KB are used by bootloader) |
| LEDs | 2, Power and Status LEDs |
| Dimensions: | 21 mm x 14 mm |
- Support for the Arduino IDE 1.0 (OSX/Win/Linux).
- 8KB program memory (~2KB is used by bootloader)
- 512 byte EEPROM
- 512 byte SRAM
- Internal USB support
- 6 I/O Pins (2 are used for USB only if your program actively communicates over USB, otherwise you can use all 6 even if you are programming via USB)
- PWM on 3 pins (more possible with Software PWM)
- ADC on 4 pins
- I2C and SPI (via USI)
- Power LED and Test/Status LED
- Power via USB or External Source - 5v or 7-16v (automatic selection)
- On-board 150ma 5V Regulator
- Low-power consumption
Attiny85 Arduino Micro Development Board
Ā Package Included:
- 1 X Attiny85 Arduino Micro Development Board
- 1 X PIN Header
