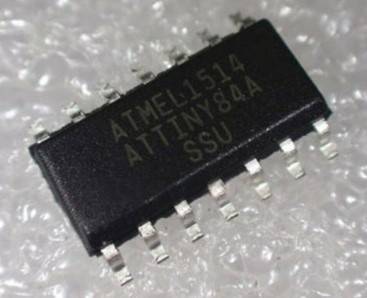

The ATTINY84A-SSU is a 8-bit picoPower AVR RISC-based Microcontroller Unit combines 8kB ISP flash memory, 512-byte EEPROM, 512-byte SRAM, 12 general purpose I/O lines, 32 general purpose working registers, an 2 timers/counters (8-bit/16-bit) with two PWM channels each, internal and external interrupts, 8-channel 10-bit A/D converter, programmable gain stage (1x, 20x) for 12 differential ADC channel pairs, programmable watchdog timer with internal oscillator, internal calibrated oscillator and four software selectable power saving modes. By executing powerful instructions in a single clock cycle, the device achieves throughputs approaching 1MIPS per MHz, balancing power consumption and processor speed.

features

Product Range: AVR ATtiny Family ATtiny84 Series Microcontrollers

CPU Speed 20MHz

Program Memory Size 8KB

RAM Memory Size 512Byte

No. of Pins 14Pins

MCU Case Style SOIC

No. of I/O’s 12I/O’s

Embedded Interface Type SPI

Supply Voltage Min 1.8V

Supply Voltage Max 5.5V
