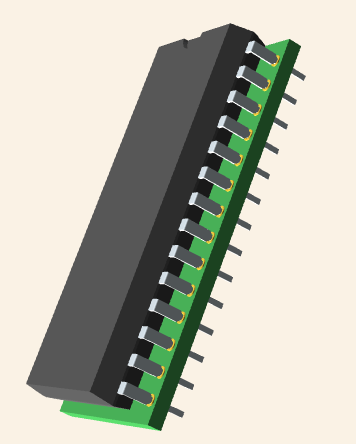

ADC0809 8-bit A/D Converter

55.00 EGP

In Stock

0 available

Quantity

Overview

<h3 class="wp-block-heading">The <strong data-start="145" data-end="156">ADC0809</strong> is a versatile 8-bit analog-to-digital converter (ADC) with an 8-channel multiplexer, allowing it to convert up to eight different analog input signals into digital data. It offers accurate and efficient analog-to-digital conversion, making it ideal for a wide range of data acquisition, sensor interfacing, and embedded system applications.</h3>

Description

✅ Key Features

Resolution: 8-bit output resolution
Input Channels: 8 multiplexed analog inputs
Conversion Time: Approximately 100 µs per conversion
Interface: Parallel data output for fast digital data readout
Operating Voltage: 5V supply voltage
Successive Approximation Architecture: For precise and reliable conversion
Clock Input: External clock input to control conversion timing
Easy Interfacing: Compatible with microcontrollers and digital systems

⚙️ Technical Specifications

Specification	Details
Resolution	8-bit
Input Channels	8
Conversion Time	~100 µs
Operating Voltage	5 V
Input Voltage Range	0 - 5 V
Interface	Parallel Output
Architecture	Successive Approximation
Package	DIP-28

📌 Applications

Data acquisition systems
Sensor signal digitization
Embedded control systems
Industrial automation
Analog signal processing

The ADC0809 provides a practical and efficient solution for converting multiple analog signals into digital data for microcontroller-based systems.
