AAST computer engineering KIT -Digital Logic Lab

🔌 Power & Connectivity

Reliable power and connectivity options are included to keep your experiments stable and safe:

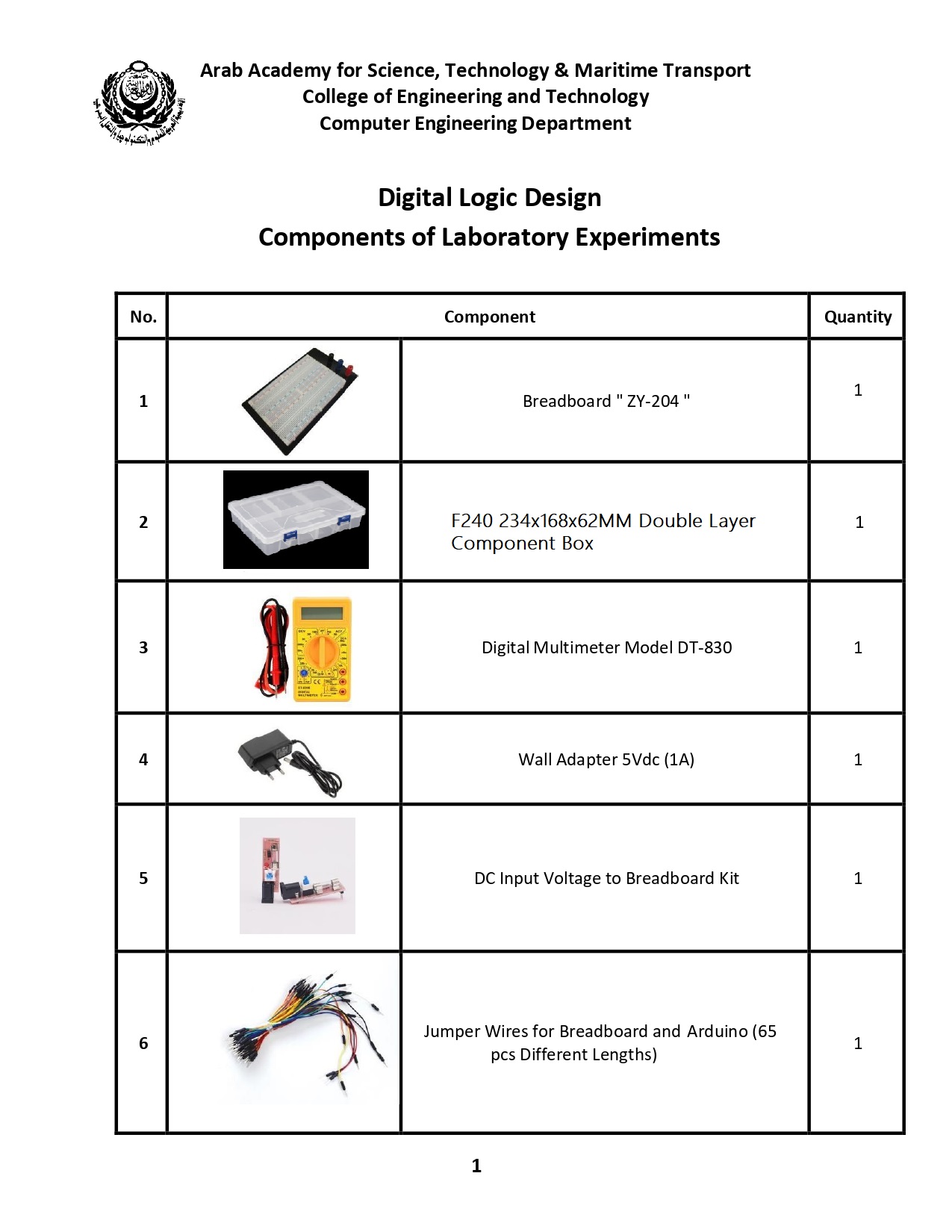

• Breadboard (ZY-204) – Solderless 1660 Tie-points for easy circuit prototyping.

• DC Input Module – 5V with DC Jack & Switch for convenient circuit powering.

• Wall Power Adapter – 5V DC 1A (High Quality) to ensure consistent performance.

• Jumper Wires – BB-J65 (65 pieces) for flexible connections.

• Component Box – F240 Double Layer (234×168×62 mm) for organized storage.

🔲 Integrated Circuits (ICs)

Experiment with the most important logic ICs, widely used in digital electronics and circuit design:

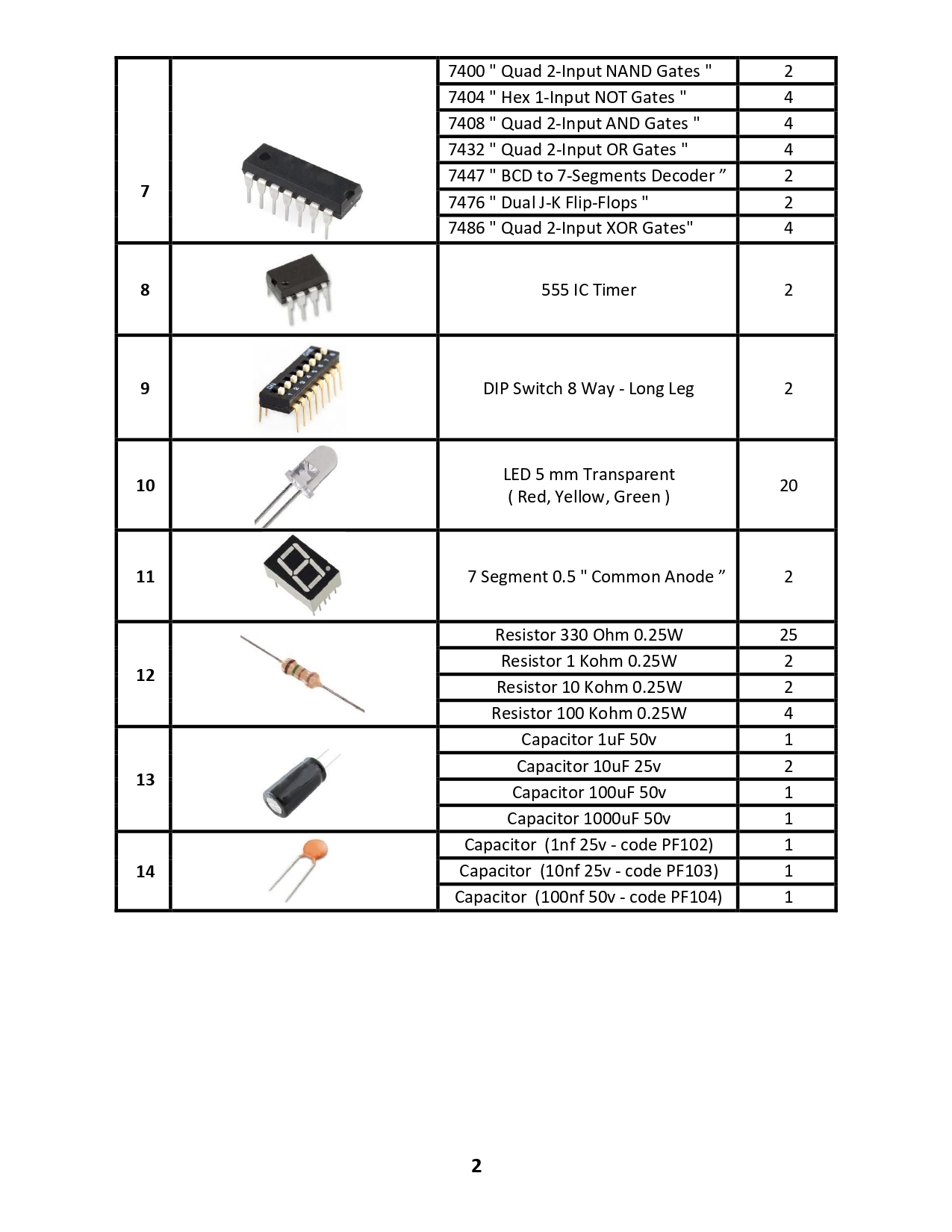

• IC 7400 – Quad 2-Input NAND Gate (2 pcs)

• IC 7404 – Hex Inverter NOT Gate (4 pcs)

• IC 7408 – Quad 2-Input AND Gate (4 pcs)

• IC 7432 – Quad 2-Input OR Gate (4 pcs)

• IC 7447 – BCD to 7-Segment Decoder/Driver (2 pcs)

• IC 7476 – Dual J-K Flip-Flop with Preset & Clear (2 pcs)

• IC 7486 – Quad 2-Input XOR Gate (4 pcs)

• NE555 / LM555 – Precision Timer IC (2 pcs, DIP-8)

These ICs cover all the basics of combinational and sequential logic circuits, making the kit ideal for practical lab work.

🎛️ Input & Output Devices

Add real-world interaction to your logic circuits:

• DIP Switch – 8 Way (2 pcs) for manual input.

• LEDs – 5mm Round, assorted colors (20 pcs) for output indicators.

• 7-Segment Display – Common Anode 5161BS (2 pcs) to display digital results.

📏 Passive Components

A full set of resistors and capacitors for timing circuits, filtering, and voltage control:

Resistors:

• 330Ω 1/4W 5% (25 pcs)

• 1kΩ 1/4W 5% (2 pcs)

• 10kΩ 1/4W 5% (2 pcs)

• 100kΩ 1/4W 5% (4 pcs)

Capacitors:

• 1µF 50V Aluminum Electrolytic (1 pc)

• 10µF 25V Aluminum Electrolytic (2 pcs)

• 100µF 50V Aluminum Electrolytic (1 pc)

• 1000µF 50V Aluminum Electrolytic (1 pc)

• 1nF Ceramic (1 pc)

• 10nF Ceramic (1 pc)

• 100nF 50V Ceramic (1 pc)

⚡ Tools

• Digital Multimeter – DT-830D (with buzzer) for measuring voltage, current, resistance, and continuity.

🎯 Why Choose This Digital Logic Lab Kit?

• ✅ All-in-One Solution – Complete set of digital logic components, ICs, passive parts, and tools.

• ✅ Ideal for Students & Beginners – Perfect for digital logic design labs and practical coursework.

• ✅ Organized & Portable – Comes with a durable double-layer component box.

• ✅ Supports Practical Learning – Helps students understand logic gates, flip-flops, counters, timers, and display systems.

• ✅ High-Quality Components – Reliable, long-lasting parts for repeated use in experiments.

📌 Applications

This Digital Logic Lab Kit is suitable for:

• University digital electronics courses.

• Hands-on lab experiments for logic design & microprocessors.

• DIY electronics projects.

• Training in sequential and combinational circuits.

• Developing a strong foundation in digital system design.
