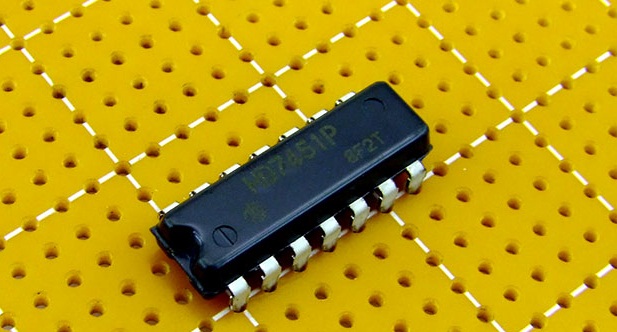

7451 DIP Dual 2-Wide 2-Iput AND-Or-Invert Gate

7451 DIP Dual 2-Wide AND-Or-Invert Gate

The 7451 DIP Dual 2-Wide AND-Or-Invert Gate is a versatile logic IC from the 74 Series. It combines two AND-OR-INVERT functions in one package. This makes it ideal for complex logic circuits. Hobbyists and engineers use it for digital projects. It saves space on your breadboard or PCB.

This gate works with standard TTL logic levels. It operates reliably at high speeds. The dual design lets you implement two functions at once. You can reduce component count and simplify your design. Electra Store ensures quality and fast delivery.

The 7451 DIP Gate performs a specific logic operation. It takes two sets of two inputs each. Each set goes through an AND gate first. Then the results go through an OR gate. Finally, the output is inverted. This creates a single output for each section. You get two independent gates in one chip. This saves space and power. The 7451 DIP Gate is a classic part of the 74 Series. It works well in many digital systems. You can use it for data selection or control logic. It also helps with arithmetic functions. The design is robust and proven. Many engineers trust this chip for reliable results. It operates at standard TTL voltages. This means 5V supply is typical. The inputs are compatible with other TTL chips. You can connect it directly to counters or flip-flops. The outputs drive standard loads. This makes integration easy. The 7451 DIP Gate is a must-have for any digital toolkit. It handles complex logic with ease. You will find it useful in many projects.

Key Features

• Dual 2-wide AND-OR-INVERT logic in a single DIP package
• Compatible with standard TTL voltage levels for easy integration
• High-speed operation suitable for clocked and combinatorial circuits
• Compact 14-pin DIP design saves board space
• Wide operating temperature range for industrial use
• RoHS compliant and lead-free for modern standards

Use Cases

The 7451 DIP Gate is for many different users. Hobbyists building digital clocks or games will love it. Students learning logic design find it very helpful. Engineers prototyping control systems use it often. It works in data processing and signal routing. You can build adders or comparators with it. The 7451 DIP Gate also fits in educational kits. Teachers use it to explain Boolean algebra. It is perfect for breadboard experiments. Anyone working with 74 Series logic needs this chip. It simplifies complex designs into one package. You can reduce wiring and errors. This gate is a staple for any electronics lab. It helps you learn and build faster. Order one today for your next project.

Order your 7451 DIP Dual 2-Wide AND-Or-Invert Gate from Electra Store today. We offer competitive prices and fast shipping. Upgrade your project with this reliable 74 Series IC. Buy now and get building!
