The 74156 Dual 2-Line to 4-Line Decoder/Demultiplexer is a high-performance TTL logic IC designed for decoding binary signals into multiple outputs or routing a single input signal to one of several outputs. It contains two independent 2-to-4 line decoders/demultiplexers with open-collector outputs, making it ideal for driving LEDs, interfacing with higher voltage circuits, or creating logic-controlled signal routing systems. Housed in a 16-pin Dual Inline Package (DIP), the 74156 is widely used in digital electronics, microcontroller projects, LED displays, and control circuits.

Open-collector outputs allow multiple outputs to be connected together to create wired-AND logic functions or drive higher voltage loads. The IC’s dual 2-line to 4-line design enables it to decode two separate sets of binary inputs, effectively doubling its utility in compact designs.

⚙️ Key Features:

• Function: Dual 2-Line to 4-Line Decoder / Demultiplexer

• Logic Family: TTL

• Inputs: Two 2-bit binary inputs per decoder (A, B)

• Outputs: Four open-collector outputs per decoder (Y0–Y3)

• Enable Input: Active LOW enable for each decoder

• Open-Collector Outputs: Can interface with higher voltage devices or wired-AND logic

• Dual Design: Two independent 2-to-4 decoders in one IC

• Operating Voltage: 4.75V – 5.25V (TTL standard)

• Low Power Consumption: Efficient for digital circuits

• Standard 16-Pin DIP Package: Easy integration with breadboards and PCBs

🧩 Pin Configuration (16-Pin DIP):

This layout provides independent decoding of two separate 2-bit inputs, allowing flexible digital logic designs with minimal component count.

⚡ Electrical Characteristics:

• Supply Voltage (VCC): 5V TTL standard

• Input High Voltage (VIH): ≥ 2V

• Input Low Voltage (VIL): ≤ 0.8V

• Output Low Voltage (VOL): ≤ 0.4V (for sinking current)

• Max Sinking Current: 20 mA per output

• Propagation Delay: ~20 ns typical

• Power Dissipation: ~50 mW

Open-collector outputs enable interfacing with higher voltages or multiple devices, providing versatility in complex digital designs.

🧠 How It Works:

Each 2-to-4 decoder in the 74156 IC converts a 2-bit binary input into four mutually exclusive outputs, with only the selected output going LOW (active) while the others remain HIGH (inactive) due to open-collector configuration.

• Enable Input (G): Must be LOW to activate the decoder outputs

• Binary Inputs (A, B): Select which output line is activated

• Open-Collector Outputs (Y0–Y3): Pull LOW when selected; can sink current for LEDs or other loads

The dual design allows two independent decoding operations from one IC, doubling efficiency in compact circuits.

🛠️ Applications:

• LED and Display Drivers – Control multiple LEDs or 7-segment displays

• Data Routing / Multiplexing – Route signals to selected channels

• Microcontroller Expansion – Extend I/O capabilities

• Logic Function Implementation – Wired-AND or high-voltage interfacing

• Educational Projects – Teach decoding and demultiplexing concepts

• Digital Counters & Timers – Select outputs based on binary input states

💡 Advantages:

• Dual 2-to-4 decoding reduces component count and saves space

• Open-collector outputs allow higher voltage and multiple-device connections

• TTL compatible for easy integration with standard digital circuits

• High-speed operation ensures reliable signal decoding

• Standard DIP package simplifies breadboard and PCB integration

📦 Package Includes:

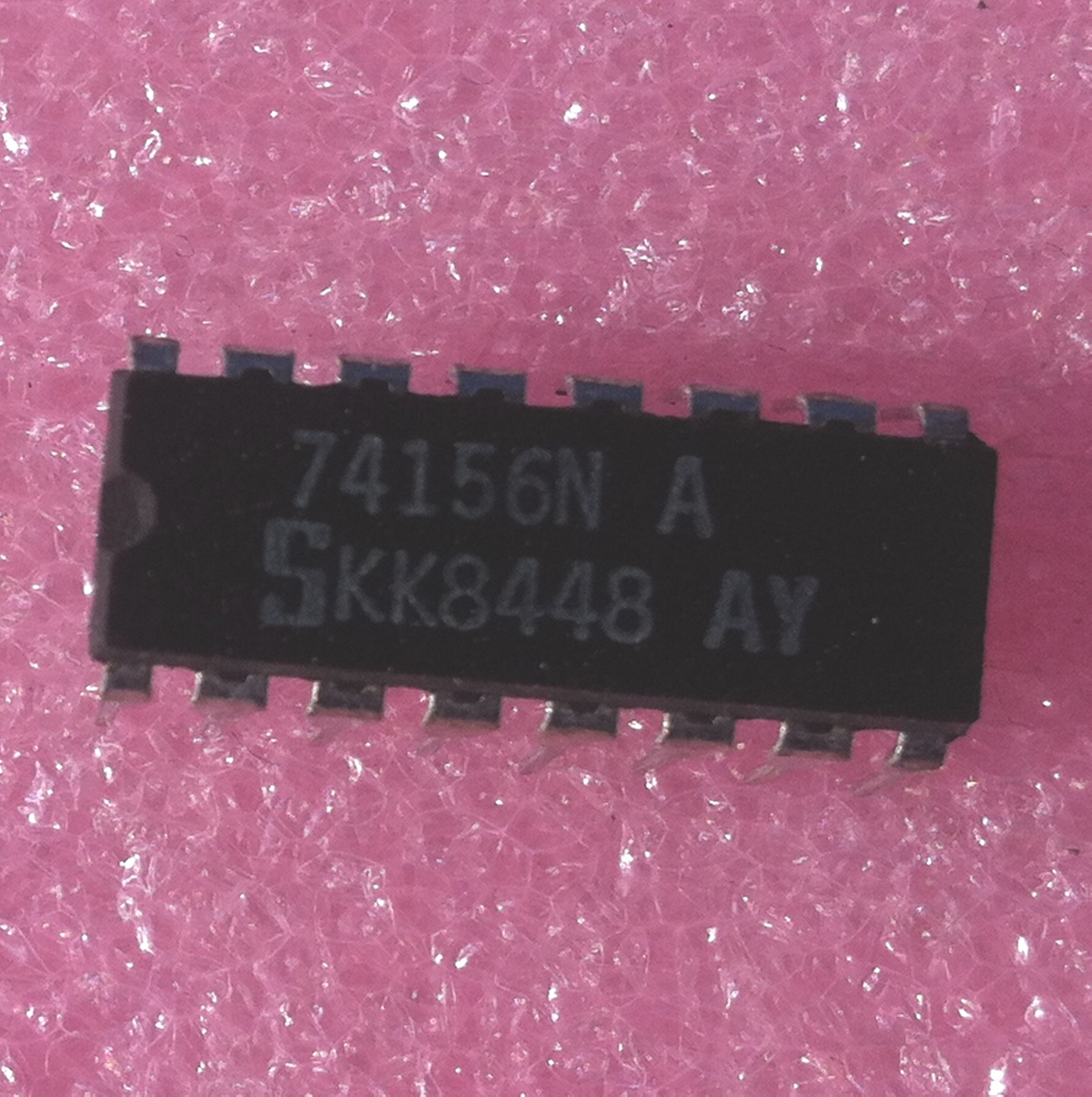

• 1 × 74156 Dual 2-Line to 4-Line Decoder/Demultiplexer IC (DIP-16)

📘 Conclusion:

The 74156 DIP Dual 2-Line to 4-Line Decoder/Demultiplexer is a versatile, high-speed TTL IC designed for efficient binary decoding and digital signal routing. With dual decoders, open-collector outputs, and TTL compatibility, it provides a compact, flexible, and reliable solution for LED driving, logic expansion, multiplexing, and educational digital electronics projects.
