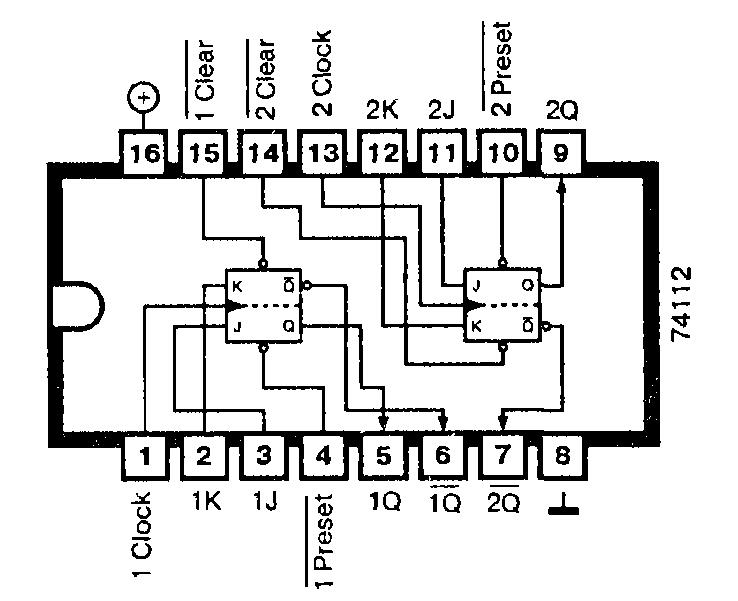

74112 DIP Dual J-K Negative-Edge-Triggered Flip-Flop With Clear AND Preset
Electra Store
SKU: CM-21314
25.00 EGP
In Stock
1
Categories: 74 Series
Overview
The 74112 dual JK flip-flop features individual J, K, clock, and asynchronous set and clear inputs for each flip-flop.
Description
- The 74112 is a high speed CMOS DUAL J-K FLIP-FLOP WITH PRESET AND CLEAR fabricated in silicon gate C2MOS technology.
- It has the same high speed performance of LSTTL combined with true CMO Slow power consumption.
- When the clock goes high, the inputs are enabled and data will be accepted.
- The logic level of the J and K inputs may be allowed to change when the clock pulse is high and the bistable will function as shown in the truth table.
- Input data is transferred to the input on the negative going edge of the clock pulse.
- All inputs are equipped with protection circuits against static discharge and transient excess voltage.
