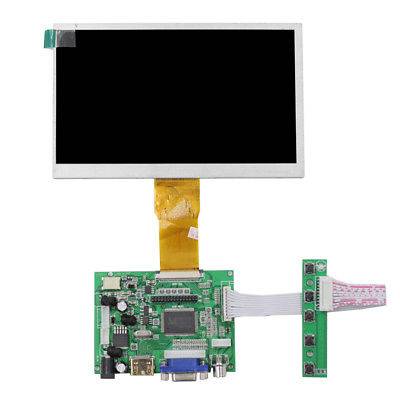

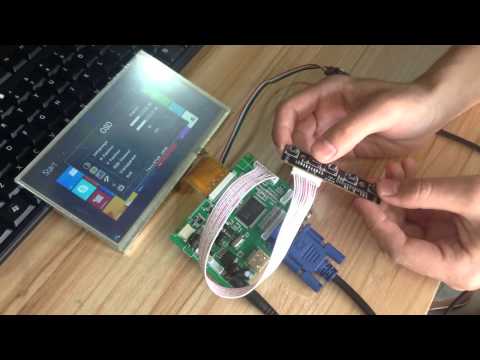

Description This 7 inch High-resolution 800*480 LCD display module kit is especially designed as a monitor for Raspberry Pi 2 Model B and Raspberry Pi B B A .

This controller board support Automatically Switch to AV2(Reversing View camera). Please connected ACC to 12V.

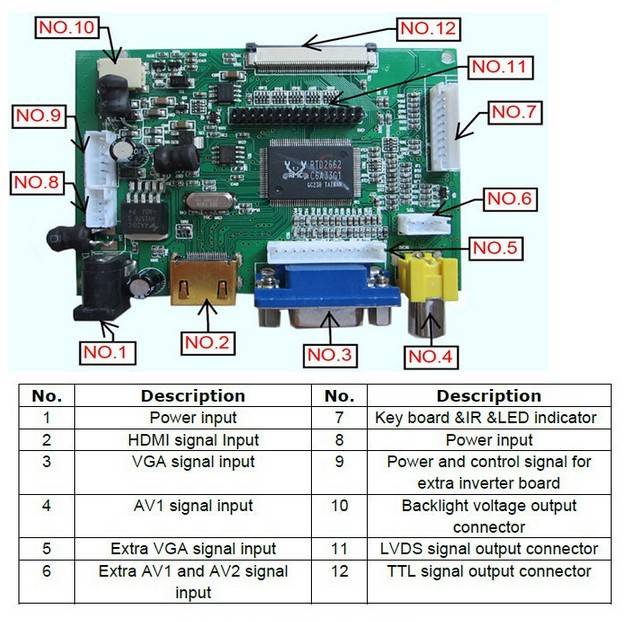

1. 12V LED backlight	2. 50 pin TTL signal output
3. signal output lvds	4. External high pressure plate
5. Built-in power supply	6. 5 ~ 12V input voltage
7. HDMI	8. VGA signal input
9. AV	10. Built-in VGA signal input
11. reverse signal input	12. AV1 entry
13. AV2 entry	14. keyboard plate

Feature:

Screen size: 7 inches LCD
Operating voltage: 5 V (current requirement 1a-2a)
Nominal power: 6-7 W
Signal input: 2 av VGA HDMI (HDMI 1.2)
Support input voltage of 5 V DC, you can use USB or power bank, but the positives and negatives can not be reversed, to avoid damaging the circuit board
Resolution: 800 × 3 (RGB) × 480

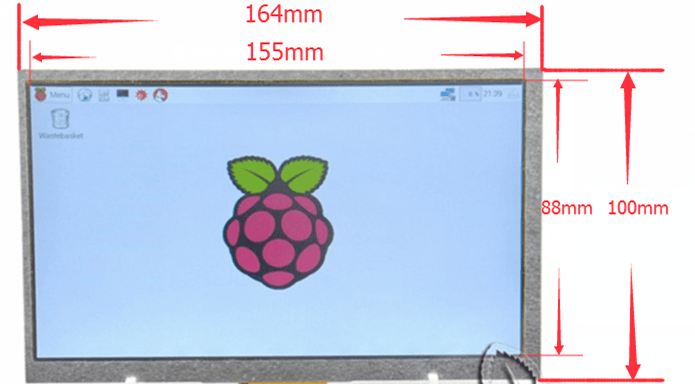

Dimensions: 165 (W) × 100 (h) × 5 (d) mm
Panel type: TFT
Interface type: digital
Connection number: 50 digital pin (TTL) tcon
Light Background: LED
Applications: Mobile DVD, digital photo frame, car systems, multimedia applications and other audiovisual systems

Package included:

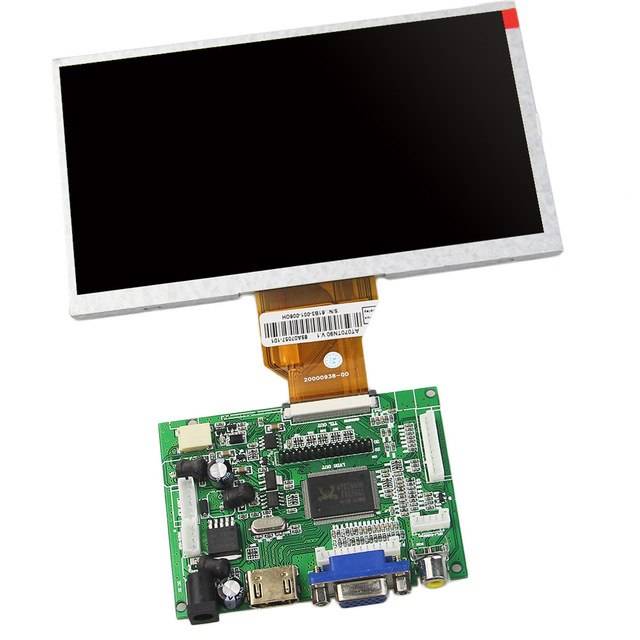

1× HDMI VGA 2AV Rear View Monitors Controller Board (Support Automatically switch to AV2).

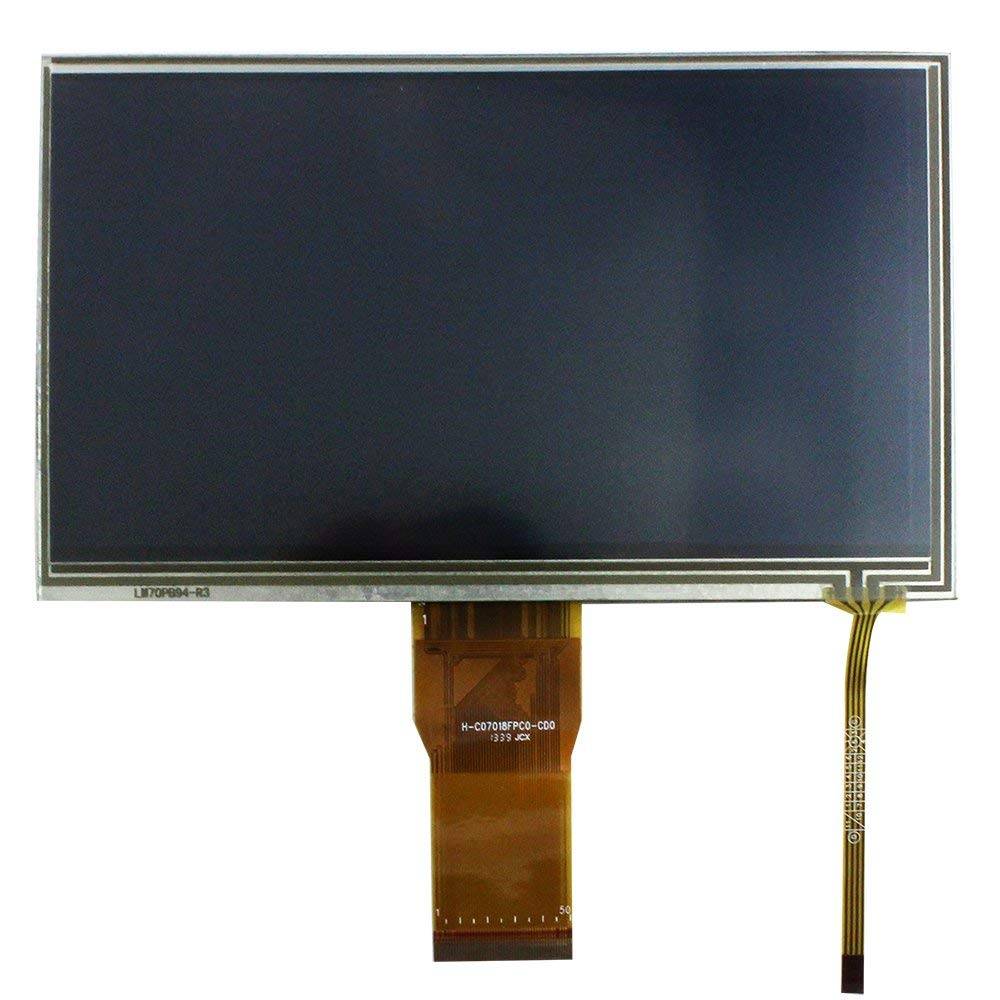

1× 7inch 800*480 LCD Panel.

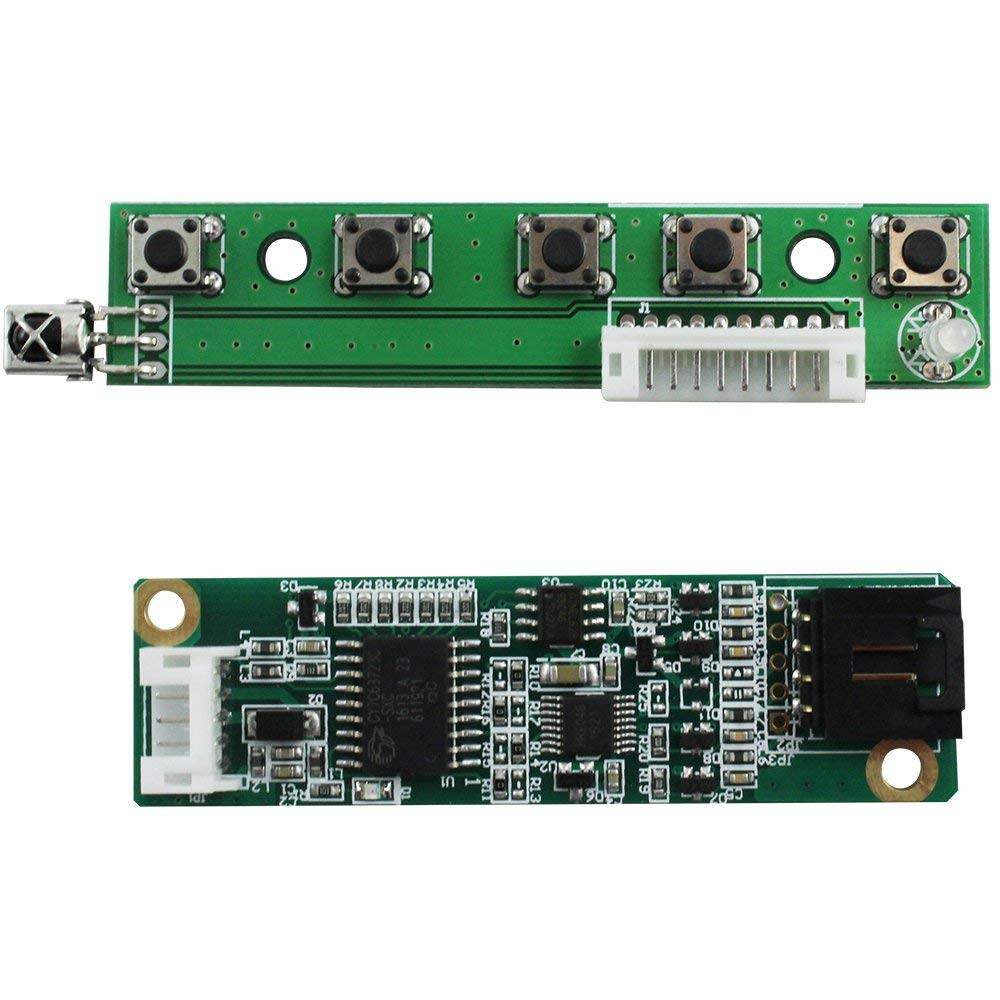

1× Keyboard with 10 pin Keyboard connecting cable.
1x USB to DC Power Line

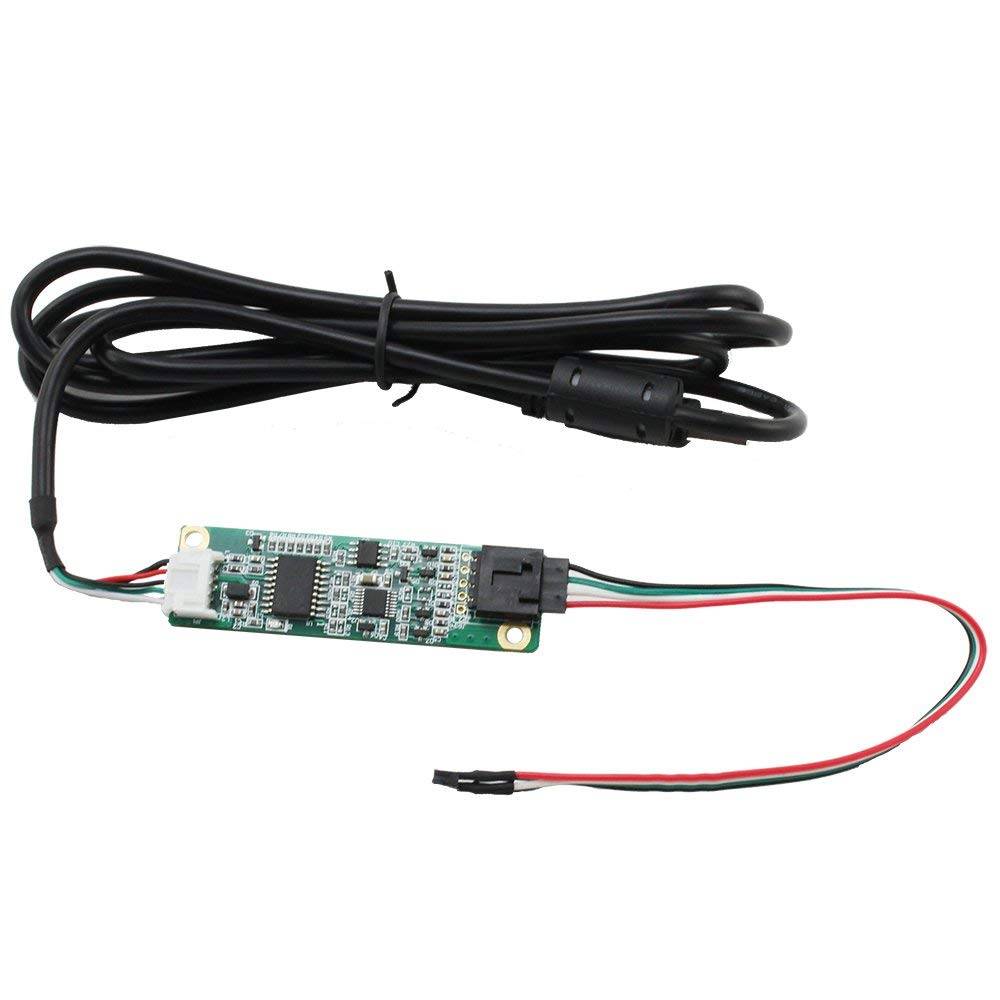

1x Resistive screen control board
Driver CD for Touch Panel controller Card
