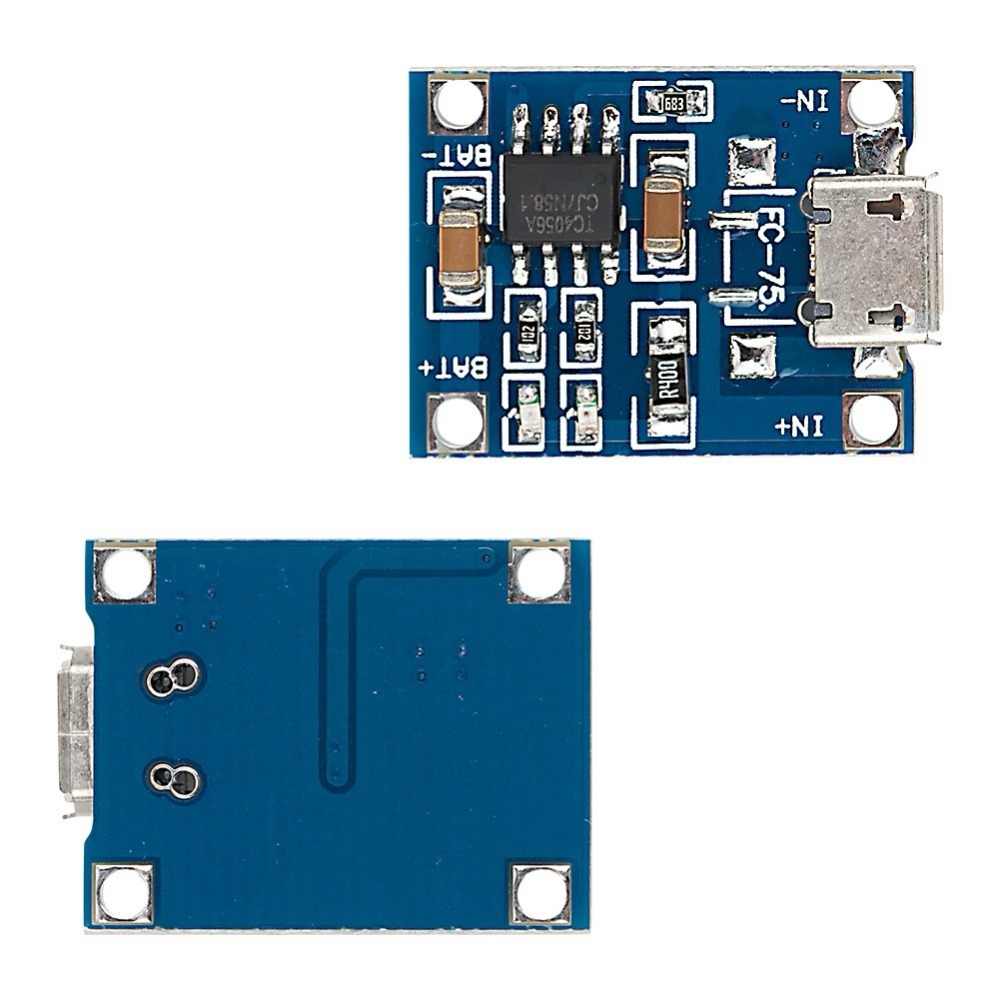

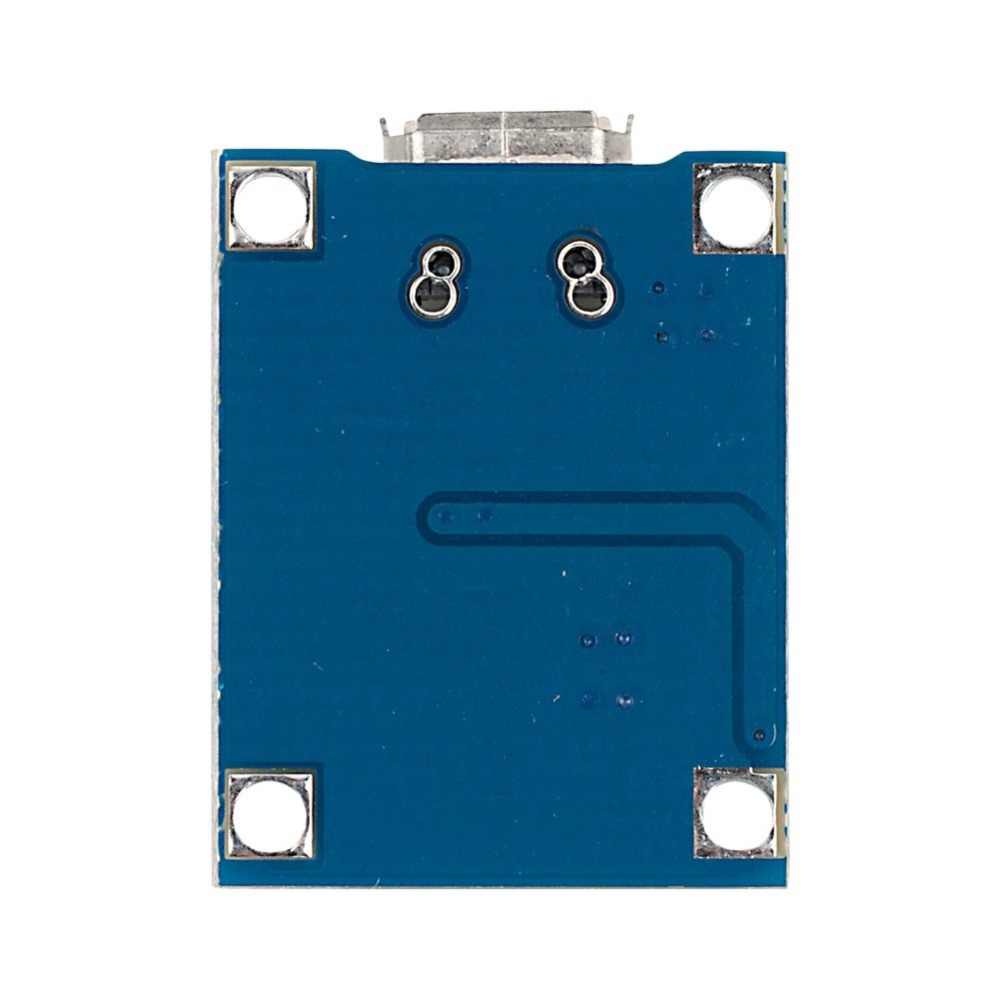

5V 1A TP4056 Lithium Battery Charging Module – Micro USB
Electra Store
SKU: CH-26646
30.00 EGP
In Stock
1
Categories: Chargers
Description
- Input voltage: 5V
- Charging cut-off voltage: 4.2V ± 1%
- maximum charge current: 1000mA
- Battery over-discharge protection voltage: 2.5V
- Battery over-current protection current: 3A

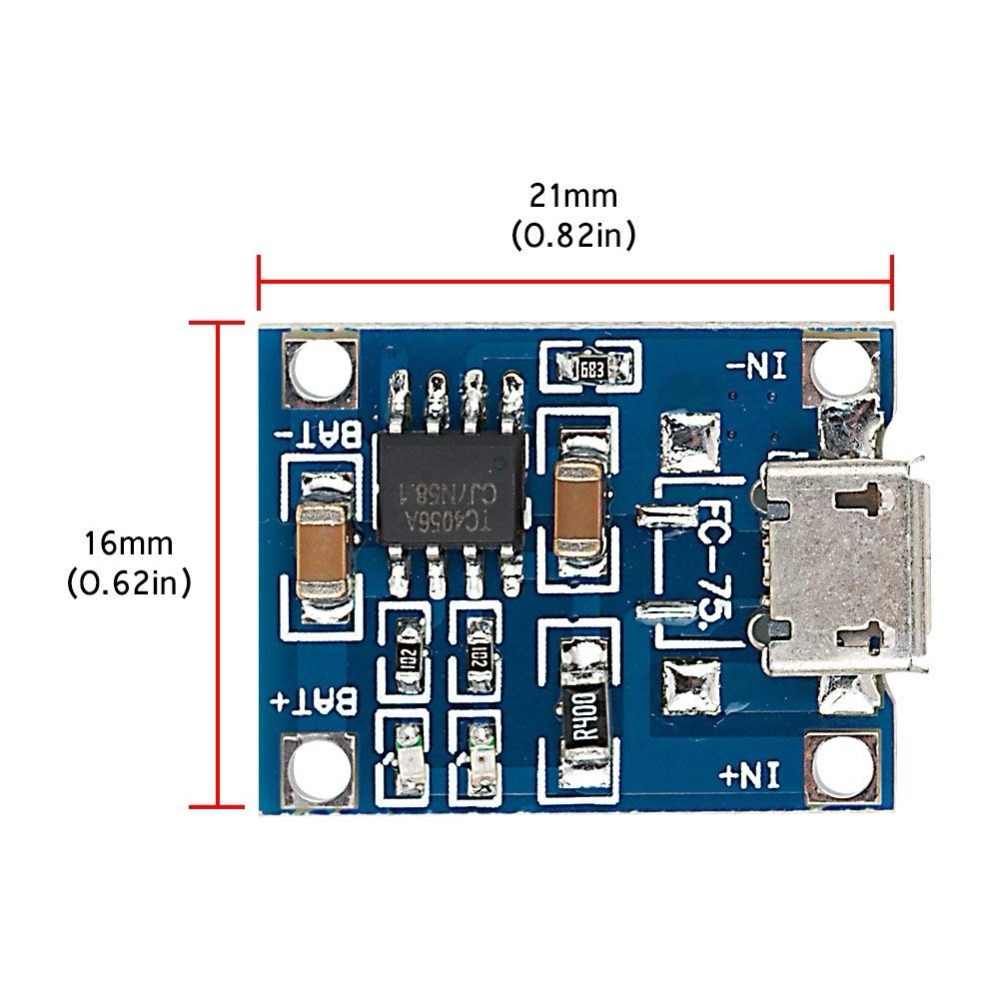

- Board size: 2.1 * 1.7CM
- Note that the charger must be able to output 1A or more when using a mobile phone charger do enter, or may not charge
- Lithium battery operating voltage: 3.6V ~4.2V
- 3.6V (3.6V * 1S) lithium battery & packs
- 3.7V (3.7V * 1S) lithium battery & packs
- 4.2V (4.2V * 1S) lithium battery & packs
- Cylindrical Lithium battery (Li-ion)
- Maximum protection voltage: 4.255V ± 0.05V
- Minimum protection voltage: 2.35V ± 0.05V
- Maximum operating current: 2A
- Short circuit protection
- Overcharge protection
- Over-discharge protection
- Over-current protection

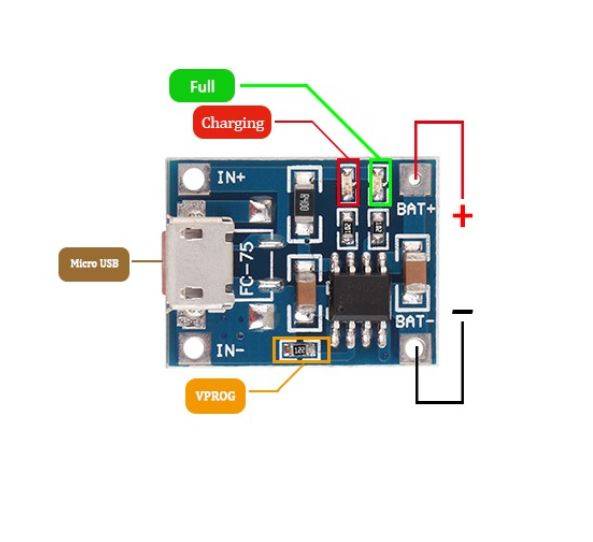

- B : Battery Positive ( )
- B- : Battery Negative (-)
- Ampere meter can only be connected to 5v input end of the module.
- It is better that the charging current is 37% of the battery capacity. If you charge to the battery of 1000mAH, current of 400 is enough.
- The connection wire should not be too thick.
- Make sure the connect point is good.
- If the input voltage is too high, like 5.2v, the current will be less than 1000mA, it is normal. It is protection function, auto-subs tract the charging current to avoid burn damage to chip.
- NO Reveal polarity.
- 1 X 5V 1A TP4056 Lithium Battery Charging Module – Micro USB
