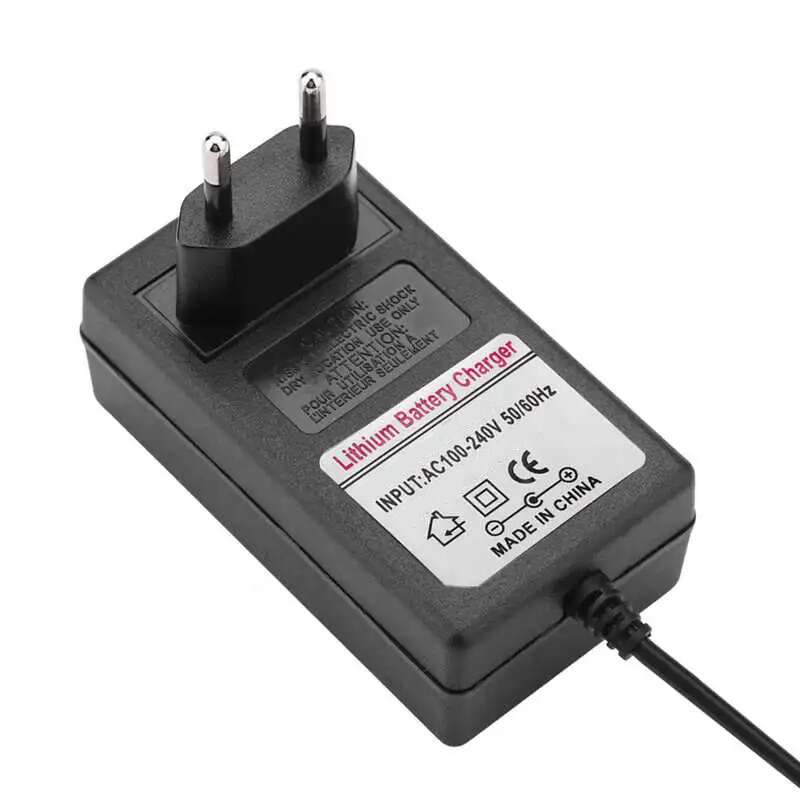

3S Lithium Battery Charger Adapter 12.6VDC 1A 5.5*2.5mm
In Stock
Categories: Rechargeable Batteries, Lithium Batteries
Description
3S Lithium Battery Charger Adapter 12.6VDC 1A 5.5*2.5mm
🔌 Key Features
✔ Output: 12.6V DC, 1A (Constant Current / Constant Voltage) ✔ Input: 100-240V AC (50/60Hz) – Worldwide voltage compatible ✔ Plug Type: 5.5×2.5mm DC barrel jack (standard for many battery packs) ✔ Protections:
-
Overcharge protection (auto-shutoff at 12.6V)
-
Short-circuit & reverse polarity protection
-

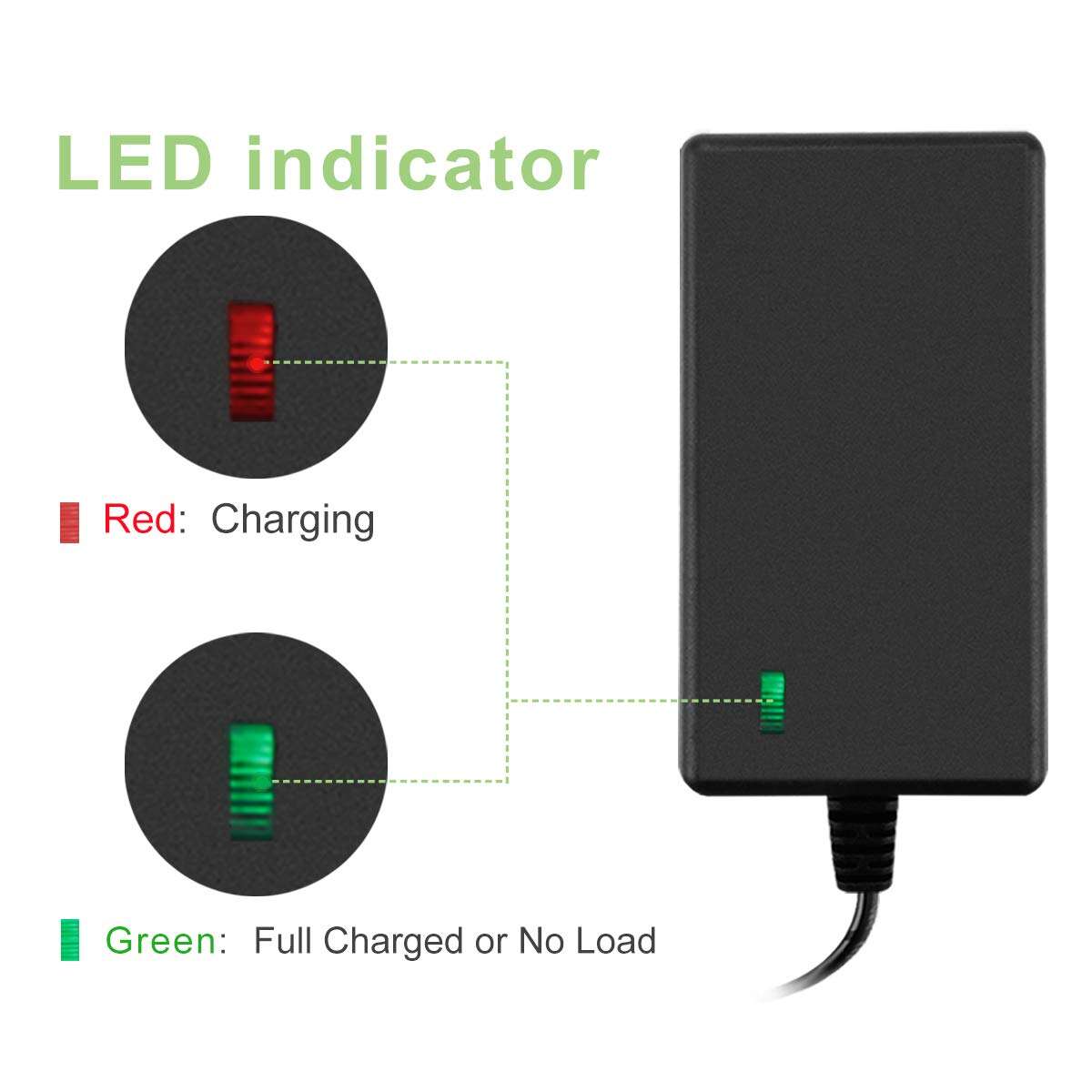

Over-temperature protection ✔ LED Indicators:
-
Red (charging) / Green (fully charged) ✔ Compact & Lightweight: Portable for travel & fieldwork
🔋 Compatible Batteries
-
3S Li-ion (11.1V nominal, 12.6V full charge)
-
3S LiPo (11.1V nominal, 12.6V full charge)
-
RC drones, DIY electronics, portable LED systems
⚙️ Technical Specs
| Parameter | Value |
|---|---|
| Input Voltage | 100-240V AC, 50/60Hz |
| Output Voltage | 12.6V DC (±1%) |
| Output Current | 1A (1000mA) |
| Charging Mode | CC/CV (Auto cut-off) |
| Efficiency | ≥85% |
| Operating Temp. | 0°C to 40°C |
⚠️ Safety Notes
-
For 3S Li-ion/LiPo batteries ONLYÂ (do not use with other chemistries)
-
Charge in a fireproof area & never leave unattended
-
Check polarity before connecting
