OLED 0.96 inch 128x64 Module ( Unsoldered )
Out of Stock
Categories: OLED
Overview

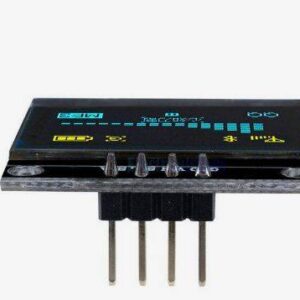

The 0.96 inch OLED Display Module is a compact, high-contrast display that offers crisp and clear visual output for a wide range of electronics projects. With a resolution of 128x64 pixels, this module uses OLED (Organic Light-Emitting Diode) technology, which doesn’t require a backlight, making it highly power-efficient.
This version comes unsoldered, allowing for custom wiring or integration into PCBs as needed. It's perfect for Arduino, Raspberry Pi, and other microcontroller platforms via the I2C interface.
Description
Key Features:
-
Display Size: 0.96 inch
-
Resolution: 128x64 pixels
-
Display Type: White/Blue/Yellow (varies by version) OLED
-
Interface: I2C (VCC, GND, SCL, SDA)
-
Operating Voltage: 3.3V – 5V
-
Low Power Consumption: No backlight required
-
Fast refresh rate and wide viewing angle
-
Compact and lightweight design
-
Unsoldered Header Pins: Allows flexible mounting and customization
Specifications:
-
Screen Technology: OLED (self-emitting)
-
Communication Protocol: I2C (IIC)
-
I2C Address: 0x3C (default)
-
Working Temperature: -40°C to +85°C
-
Viewing Angle: >160°
-
Module Dimensions: Approx. 27mm x 27mm x 4mm
Applications:
-
DIY electronics and hobby projects
-
Wearable devices and compact displays
-
IoT dashboards and indicators
-
Smart home systems
-
Battery-powered systems due to low power usage
-
Mini user interfaces for embedded systems
Note: This module is unsoldered – header pins are included but not pre-attached. Soldering is required before use.
