Description

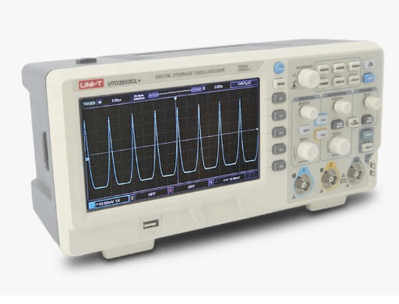

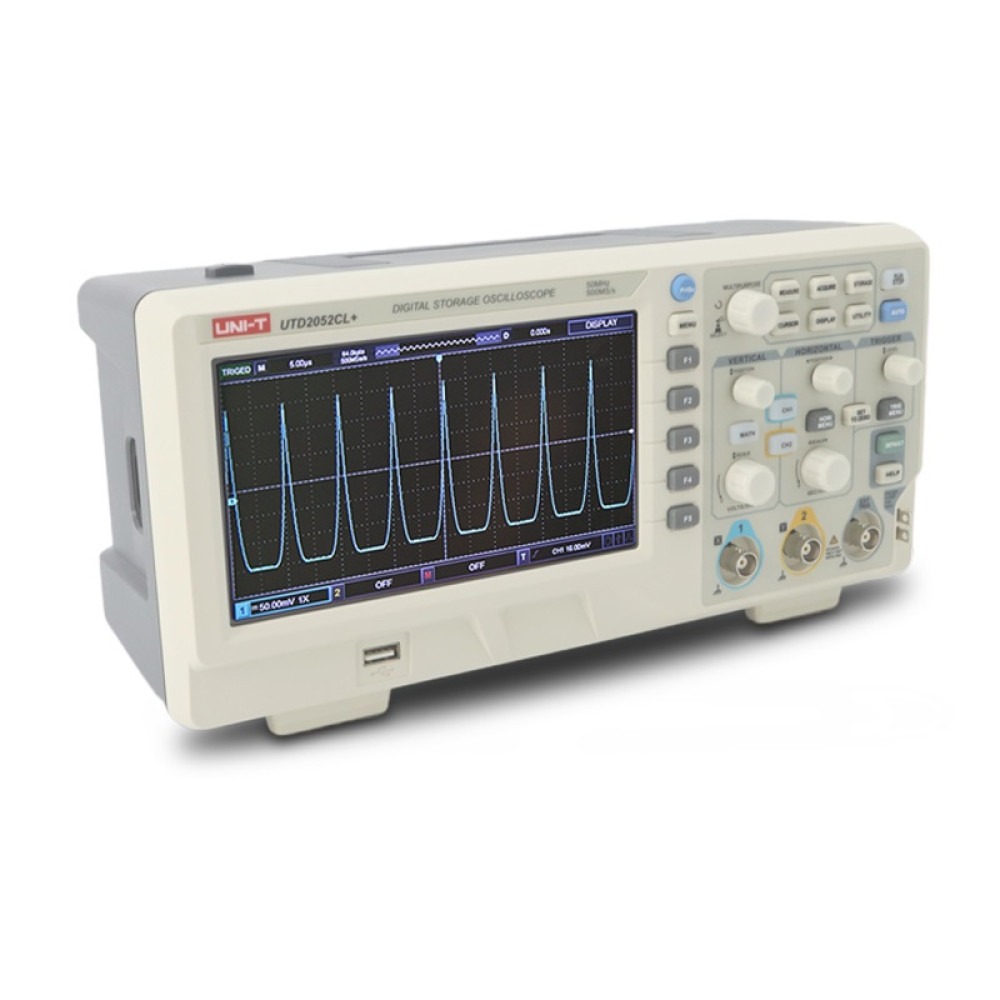

UTD2052CL Digital Color Oscilloscope – 50MHz

Key Features:

• Bandwidth: 50MHz

• Real-Time Sample Rate: 1GSa/s

• Display: 7-inch TFT LCD, 64K color, 800×480 resolution

• Memory Depth: 25Kpts

• Input Channels: 2 independent channels

• Vertical Resolution: 8 bits

• Vertical Sensitivity: 2mV/div to 5V/div

• Time Base Range: 5ns/div to 50s/div

• Trigger Modes: Edge, Pulse, Video, Slope

• Waveform Capture Rate: Up to 2000 wfms/s

Additional Features:

• Auto Setup Function for quick waveform detection

• USB Host and Device Ports for data transfer and PC connectivity

• Multiple Language Interface and help menu

• Math Functions: Add, Subtract, Multiply, FFT

• Save & Recall Function for waveform and settings

• Compact and Lightweight Design – ideal for both lab and field use

Applications:

• Circuit design and debugging

• Electronic maintenance and servicing

• Education and training

• Embedded system development

• Signal analysis and troubleshooting

Package Includes:

• 1× UTD2052CL Digital Oscilloscope

• 2× Passive Probes

• 1× Power Cable

• 1× USB Cable

• 1× User Manual

• 1× Software CD

Get reliable, high-speed signal measurement with the UTD2052CL, combining performance, ease of use, and affordability in one compact package
