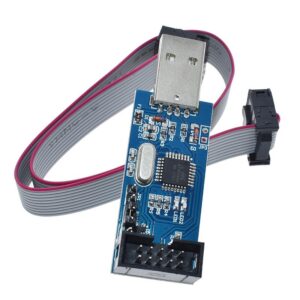

USB ASP AVR Programming Device for ATMEL Processors HW-437 – Reliable Microcontroller Programmer

The USB ASP AVR Programming Device for ATMEL Processors HW-437 is a compact, efficient, and highly reliable programmer designed for AVR microcontrollers. It provides an easy way to upload code, flash firmware, and debug programs for a wide range of ATMEL processors. With its plug-and-play USB interface, this programmer is perfect for hobbyists, students, and professionals working with Arduino, ATMEL AVR, and other embedded systems.

Designed for simplicity and performance, the HW-437 supports in-system programming (ISP), allowing users to program AVR chips directly on their development boards without removing them. This feature makes the programming process faster, cleaner, and more convenient.

Key Features

• Wide Compatibility: Supports most ATMEL AVR microcontrollers, including ATmega, ATtiny, and AT90 series.

• USB Interface: Standard USB connection for direct PC interface without additional power supply.

• Plug-and-Play: Compatible with Windows, Linux, and Mac OS with appropriate drivers.

• High-Speed Programming: Fast and stable programming for AVR devices.

• Compact Design: Lightweight and portable, ideal for both labs and fieldwork.

• LED Indicators: Provides visual feedback during programming and debugging.

• Easy to Use: Compatible with popular programming software like AVRDUDE, Arduino IDE, and other AVR development tools.

Technical Specifications

• Model: USB ASP AVR Programmer HW-437

• Interface: USB 2.0 / 1.1

• Supported Microcontrollers: ATMEL AVR series (ATmega, ATtiny, AT90)

• Programming Voltage: 5V / 3.3V selectable

• Frequency Range: Up to 12 MHz ISP programming support

• Driver Support: Windows XP / 7 / 8 / 10, Linux, Mac OS

• Connection Type: 10-pin ISP connector

• Power Supply: USB powered (no external adapter needed)

• Dimensions: Approx. 55mm x 25mm x 10mm



Benefits of Using the USB ASP HW-437

1. Efficient Programming: Quickly upload firmware to AVR microcontrollers with minimal hassle.

2. Versatile Use: Works with multiple AVR chips and is suitable for both hobby and professional projects.

3. No External Power Needed: Draws power directly from the USB port, making it highly convenient.

4. Reliable Performance: Ensures stable communication between PC and AVR microcontroller for error-free programming.

5. Portable and Lightweight: Easy to carry and integrate into your workspace or electronics lab.

Applications

The USB ASP AVR Programming Device HW-437 is suitable for various applications, including:

• Arduino Development: Upload sketches and bootloaders to Arduino boards.

• AVR Microcontroller Programming: Program ATmega, ATtiny, and other AVR chips directly.

• DIY Electronics Projects: Flash custom firmware for robotics, sensors, and IoT devices.

• Embedded Systems Development: Ideal for prototype testing, firmware upgrades, and debugging.

• Educational Use: Perfect for electronics and embedded systems students learning AVR programming.

How the USB ASP Programmer Works

The HW-437 connects to a PC via a USB cable, and the 10-pin ISP interface connects directly to the AVR microcontroller. Using supported programming software like AVRDUDE or Arduino IDE, users can easily:

1. Read Microcontroller Data: Extract the current firmware or configuration.

2. Write Firmware: Flash compiled programs to the AVR chip.

3. Verify Firmware: Ensure data is correctly written with a verification step.

4. Erase Flash: Clear existing program memory to prepare for new firmware.

The LED indicators on the module provide visual feedback during the programming process, showing power, activity, and success/failure status, which helps users troubleshoot quickly.

Advantages Over Other Programmers

Compared to other AVR programmers, the USB ASP HW-437 stands out due to:

• Affordable Price: Provides professional-grade features at a low cost.

• Compatibility: Works with a wide range of AVR chips and operating systems.

• Portability: Small, lightweight, and easy to transport.

• USB Powered: No need for extra adapters or power sources.

Example Project

A common use case is flashing a bootloader to a new Arduino board. By connecting the HW-437 programmer to the Arduino’s ISP pins, you can install or update the bootloader quickly. Another example is a robotics project, where custom firmware for AVR microcontrollers is uploaded to control motors, sensors, and communication modules.

This programmer is also widely used in educational labs to teach students AVR programming without complicated setups, making learning simple and efficient.

Conclusion

The USB ASP AVR Programming Device for ATMEL Processors HW-437 is an essential tool for anyone working with AVR microcontrollers. With its USB connectivity, dual compatibility with multiple operating systems, and wide AVR chip support, it offers an efficient, reliable, and convenient solution for programming and debugging. Whether for Arduino, DIY electronics, embedded systems, or educational purposes, the HW-437 provides fast, accurate, and hassle-free programming.
