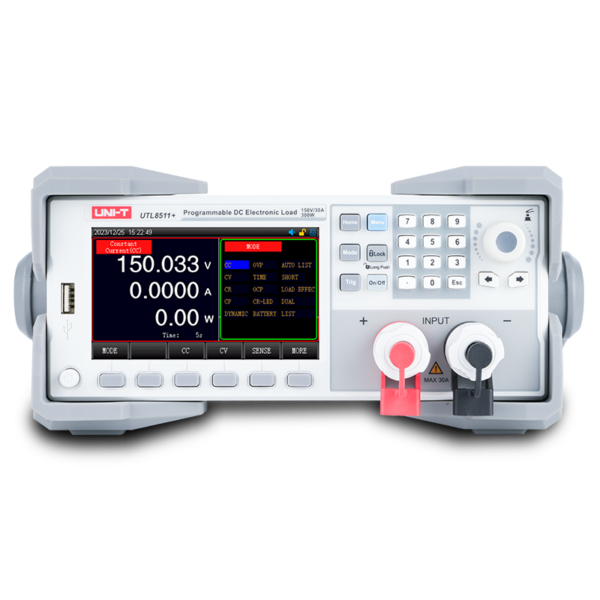

UNI-T UTL8511+ Programmable DC Electronic Load
UNI-T UTL8511+ Programmable DC Electronic Load
UNI-T UTL8511+ Programmable DC Electronic Load

UNI-T UTL8511+ Programmable DC Electronic Load

Original price was: 13,500.00 EGP.Current price is: 13,250.00 EGP.

The UTL8511+ is a 1.5kW/150V/60A programmable DC electronic load designed for rigorous power testing applications. With 0.03% basic accuracy and 16-bit resolution, this bench-top unit delivers laboratory-grade performance for power supply validation, battery testing, and energy system evaluation.

SKU: UTL8511+ Category:

Description

Key Features

✔ High-Power Testing – 1500W continuous/1800W peak (5s)
✔ Multi-Mode Operation – CC/CV/CR/CP/CW dynamic loading
✔ Ultra-Fast Sampling – 500kHz waveform capture rate
✔ Programmable Sequences – 100-step sequences with 10ms transitions
✔ Comprehensive Interfaces – USB/LAN/RS232/GPIB (optional)
✔ Advanced Protection – OVP/OCP/OPP/OTP safeguards

Technical Specifications

Basic Parameters

  • Power Rating: 1500W (continuous), 1800W (peak)

  • Voltage Range: 0-150V

  • Current Range: 0-60A

  • Resolution: 0.1mV/0.1mA

  • Accuracy: ±(0.03% of setting + 0.03% of range)

Operation Modes

Mode Range Resolution Accuracy
CC 0-60A 0.1mA ±(0.03%+0.03%)
CV 0-150V 0.1mV ±(0.03%+0.03%)
CR 0.1Ω-10kΩ 0.1mΩ ±(0.1%+0.1%)
CP 0-1500W 0.1W ±(0.1%+0.1%)

Dynamic Characteristics

  • Slew Rate: Up to 2.5A/μs

  • Minimum Pulse Width: 100μs

  • Rise Time: <50μs (10%-90%)

Advanced Functions

  • Battery Test Mode: Capacity/discharge curve analysis

  • Waveform Simulation: Arbitrary load profile generation

  • Harmonic Analysis: Up to 50th order distortion

  • Data Logging: 1M points internal storage

Package Contents

  • Main unit with power cord

  • Remote sense cables

  • USB communication cable

  • Test leads (25mm²)

  • User manual & calibration certificate

Applications

  • Power Supply Testing: Ripple, transient response

  • Battery Characterization: Cycle life, capacity tests

  • Renewable Energy: Solar panel IV curve tracing

  • Automotive Electronics: EV battery simulation

  • Aerospace Power: Satellite power system validation

Why Choose UTL8511+?

  1. Cost-Performance Leader: Comparable to Keysight at 40% lower cost

  2. Future-Ready Design: Supports SCPI commands for automation

  3. Reliable Protection: 6-stage safety protection system

  4. Upgrade Options: Rack-mount kit & high-power expansion

Compliance Standards: IEC 61010-1, ISO 9001, CE/RoHS
