Description

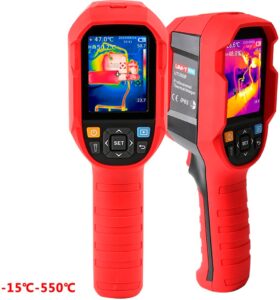

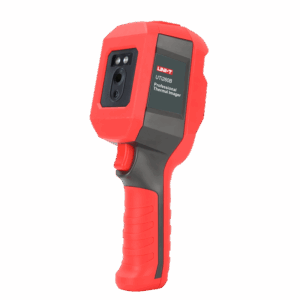

UNI‑T UTi260B Heavy Duty Thermal Camera
The UNI‑T UTi260B Heavy Duty Thermal Camera is a professional‑grade handheld infrared imaging device engineered for a wide range of industrial, mechanical, electrical, and building inspection applications. As part of UNI‑T’s Heavy Duty series, the UTi260B combines robust performance with intuitive usability and rugged durability, making it an indispensable tool for technicians, engineers, and maintenance professionals who demand reliable thermal diagnostics in challenging environments. UNI-T Thermal Imaging

Built to deliver detailed thermal insights and precise temperature measurements, the UTi260B features a high‑resolution 256×192 infrared detector paired with a crisp 2.8‑inch TFT LCD display. The camera captures both thermal data and visual imagery, empowering users to identify hot spots, cold zones, and thermal anomalies with clarity and confidence. With a wide temperature measurement range from ‑20 °C to 550 °C (equivalent to ‑4 °F to 1022 °F), this thermal imager excels in diverse diagnostic scenarios—from power distribution systems to HVAC performance analysis. UNI-T Thermal Imaging

Designed with on‑site professionals in mind, the UNI‑T UTi260B is rugged enough to withstand harsh conditions. It meets IP65 ingress protection standards and survives drops from up to 2 meters, ensuring dependable performance on job sites where dust, moisture, and rough handling are common. The ergonomic form factor, combined with a user‑friendly interface and long‑lasting Li‑ion battery, maximizes productivity during long inspection sessions. UNI-T Thermal Imaging

For comprehensive technical information and official details, you can view the manufacturer’s product page here: UNI‑T UTi260B on the official UNI‑T website. UNI-T Thermal Imaging

Detailed Features & Benefits

High‑Resolution Thermal Imaging

The UTi260B is equipped with a 256×192 pixel infrared sensor, offering superior thermal image detail compared to lower‑resolution models. This enhanced resolution helps reveal subtle thermal differences, critical for accurate diagnostics in electrical panels, motor components, and mechanical systems. UNI-T Thermal Imaging

Wide Temperature Measurement Range

With a measurement capability from ‑20 °C to 550 °C (‑4 °F to 1022 °F), the UTi260B handles a broad array of applications—from low‑temperature building inspections to high‑temperature industrial monitoring. This wide range helps professionals detect potential failures before they escalate. UNI-T Thermal Imaging

Vivid 2.8″ Display

Featuring a 2.8‑inch TFT LCD screen with 320×240 pixel resolution, the UTi260B ensures clear on‑device visualization of thermal and visual images. The intuitive display makes it easy to scan surfaces, analyze hot spots, and make informed decisions rapidly. UNI-T Thermal Imaging

Multiple Color Palettes & Display Modes

The camera includes 7 customizable color palettes (e.g., White Hot, Black Hot, Ironbow, Lava, Rainbow, Rainbow HC, etc.) and 4 display modes:

• Thermal

• Visual image

• Fusion

• Picture‑in‑Picture (PIP)

These options provide flexible visualization for different diagnostic needs, allowing users to emphasize temperature contrasts or blend thermal and visible imagery for better context. UNI-T Thermal Imaging

On‑Screen Analysis & Advanced Tools

UTi260B features an on‑screen analyzer with up to 3 measurement points, enabling precise quantification of temperature values in selected areas of interest. It also supports hot spot/cold spot auto‑tracking, helping users quickly pinpoint critical temperature extremes. UNI-T Thermal Imaging

Automatic High/Low Temperature Alarm

Stay ahead of issues with configurable alarms for high and low temperature thresholds. When triggered, visual indicators and the built‑in LED flashlight notify users of potential problems, enhancing safety and response times. UNI-T Thermal Imaging

Built‑In Digital Camera & Storage

The UTi260B integrates a 640×480 pixel digital camera, enabling simultaneous capture of thermal and visual images. Images and data are stored on a Micro SD card (support up to 32GB), and saved files can be transferred easily via the USB‑C interface. UNI-T Thermal Imaging

User‑Friendly, Rugged Design

Constructed for real‑world field use, the UTi260B meets IP65 protection and endures drops up to 2 m, ensuring reliable performance in dusty, wet, or rugged conditions. The ergonomic grip and intuitive controls make scanning and data collection effortless. UNI-T Thermal Imaging

Long‑Lasting Battery & Connectivity

A robust Li‑ion rechargeable battery provides extended operation (approximately 6 hours), minimizing downtime during inspections. Connectivity via USB‑C enables fast data transfer, while supportive PC software lets you analyze and project real‑time images for deeper evaluation. UNI-T Thermal Imaging

---

Professional Applications

The UTi260B shines across numerous professional scenarios, including but not limited to:

• Electrical system inspection: Detect overheating components, faulty connections, and prevent failures.

• HVAC diagnostics: Evaluate insulation, air leakage, and thermal performance of heating/cooling systems.

• Mechanical equipment maintenance: Identify worn bearings, overloaded motors, and heat‑related wear.

• Building inspection: Locate moisture, insulation gaps, thermal bridges, and roof defects.

• Solar panel evaluation: Assess panel efficiency and cell malfunctions. UNI-T Thermal Imaging

---

Conclusion

The UNI‑T UTi260B Heavy Duty Thermal Camera delivers a comprehensive thermal imaging solution, blending precision, ruggedness, and usability into a single powerful handheld device. Whether used for industrial maintenance, building diagnostics, or advanced research, its rich feature set ensures accurate, reliable insights.

UTi260B User Manual-English
