Description

Key Features:

1. Ultra-High-Performance Signal Generation

• Dual-Channel Output: Independent or synchronized operation with 1.6 GHz bandwidth per channel.

• 16-Bit Vertical Resolution: Exceptional signal clarity with ultra-low distortion.

• 4 GSa/s Sampling Rate: Ensures accurate reproduction of high-frequency and complex waveforms.

• Up to 3.2 GHz Pulse Wave Output: Ideal for high-speed digital and RF applications.

2. Advanced Waveform Capabilities

• Standard Waveforms: Sine, square, pulse, ramp, noise, and DC signals.

• Arbitrary Waveforms (ARB): User-defined waveforms with 64 Mpts memory depth for intricate signal simulation.

• Modulation & Sweep Modes: Supports AM, FM, PM, FSK, ASK, PWM, QAM, and linear/logarithmic sweep.

• Built-in Harmonic & Arbitrary Waveform Editor: Customize and store complex waveforms.

3. Cutting-Edge Functionality

• Precision Phase Control: Adjust phase alignment between channels for coherent multi-channel testing.

• Ultra-Low Jitter Clock Source (±0.5 ppm): Ensures timing accuracy for high-frequency signals.

• Advanced Burst & Trigger Modes: Supports N-cycle burst, gated burst, and external/internal triggering.

• IQ Modulation & Vector Signal Generation (Optional): Essential for modern wireless and RF testing.

4. Enhanced User Experience

• 7-inch Touchscreen Display: Intuitive GUI with waveform preview and gesture controls.

• Dual Knob & Shortcut Keys: Quick parameter adjustments for efficiency.

• USB 3.0, LAN (LXI), and HDMI Output: Seamless remote control and screen sharing.

• File Compatibility: Import/export .CSV, .BIN, .TXT, and .WAV files.

5. Professional-Grade Build

• Robust Metal Chassis: Durable construction for lab and field use.

• Active Cooling with Low Noise: Maintains performance without interference.

• Portable Yet Powerful: Balances high-end specs with a compact footprint.

---

Applications:

✔ 5G & Wireless Communications (mmWave, OFDM, MIMO testing)
✔ Radar & Satellite Systems (High-frequency pulse and chirp signals)
✔ High-Speed Digital Design (SerDes, PCIe, DDR signal integrity testing)
✔ Aerospace & Defense Electronics (Precision signal simulation)
✔ Advanced Research & Academia (Quantum computing, photonics, RF research)

---

Technical Specifications:

---

Package Includes:

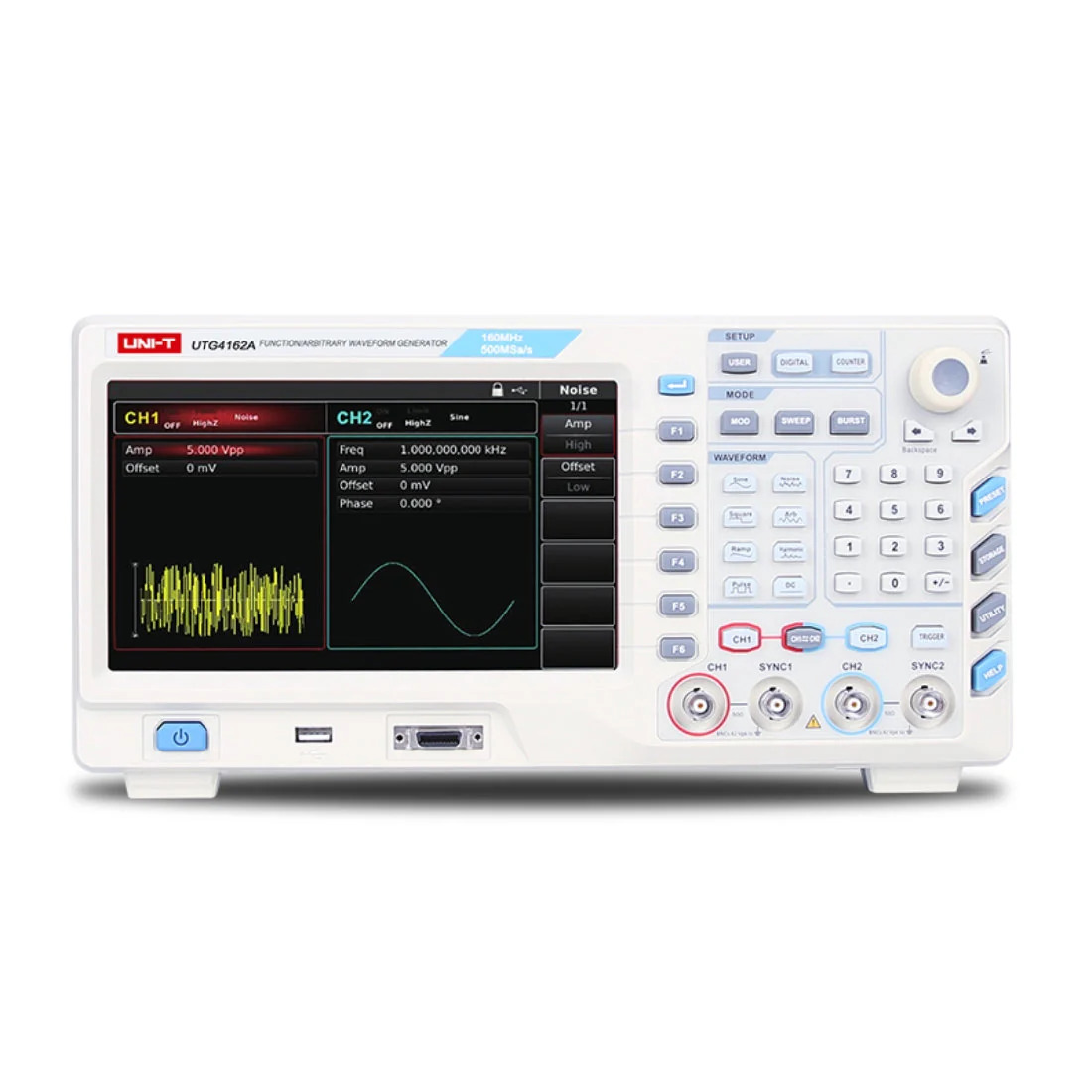

• UTG4162A Waveform Generator

• Power Cable

• USB 3.0 Cable

• Quick Start Guide

• Optional Accessories: High-frequency BNC cables, remote control software

---

Why Choose the UNI-T UTG4162A?

✅ Industry-leading bandwidth (1.6 GHz) and resolution (16-bit) for cutting-edge applications.
✅ Dual-channel coherence with ultra-low jitter for synchronized systems.
✅ Massive 64 Mpts memory for complex, long-duration waveforms.
✅ Touchscreen interface with advanced connectivity options.
✅ Trusted by professionals in RF, defense, and high-speed digital industries.

Ideal for engineers pushing the limits of signal generation—where precision meets performance.

Upgrade your lab with the UTG4162A today!
