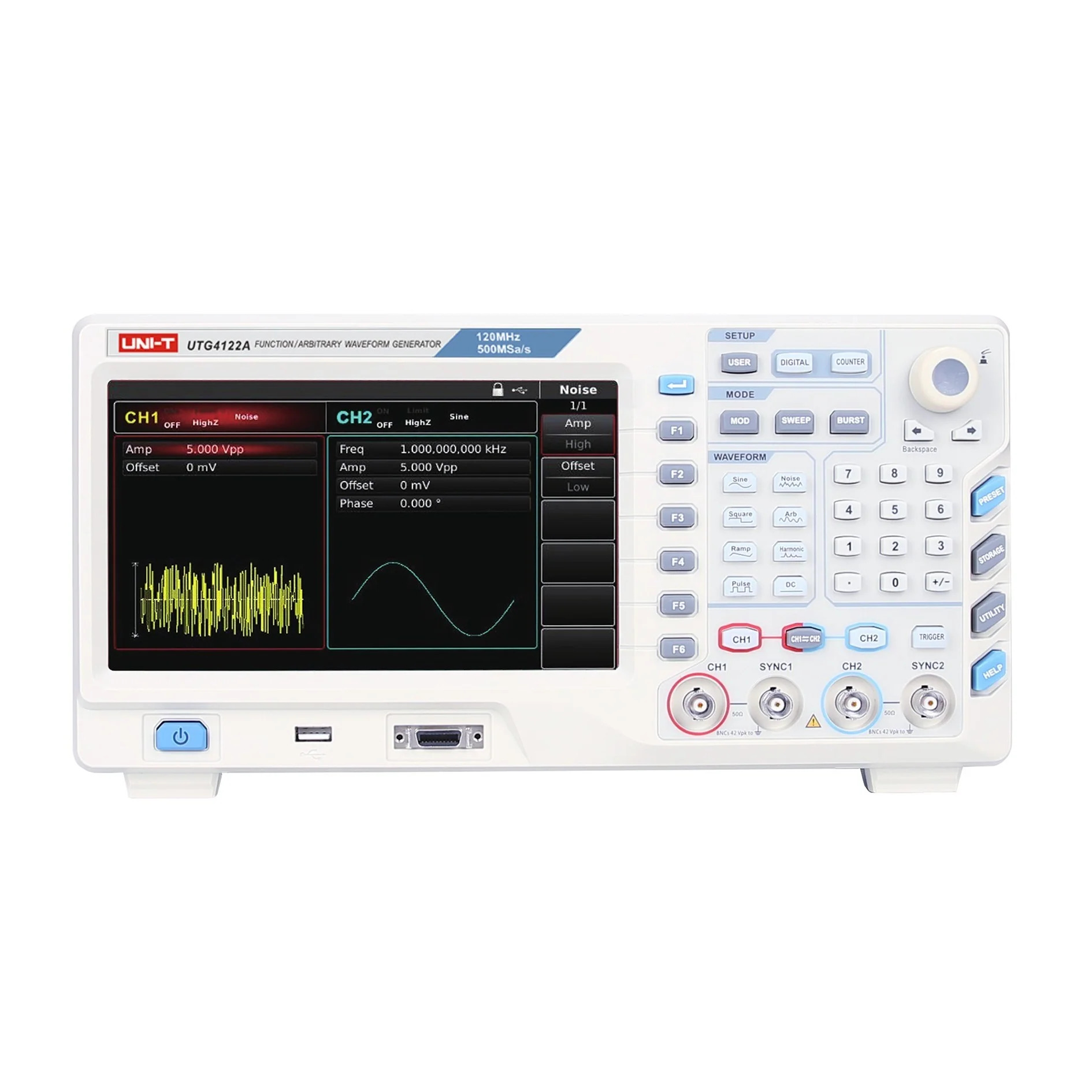

UNI-T UTG4122A Waveform Generator

Original price was: 47,500.00 EGP.Current price is: 47,000.00 EGP.

The UNI-T UTG4122A is a high-performance dual-channel arbitrary waveform generator designed for engineers, researchers, and educators who require precise signal generation for testing, debugging, and development applications. With a 400 MHz bandwidth, 14-bit vertical resolution, and a 1.2 GSa/s sampling rate, this instrument delivers clean, stable, and highly accurate waveforms for a wide range of applications, including communications, electronics testing, and embedded system design.

SKU: UTG4122A Category: UNI-T

Description
Reviews (0)

Description

Key Features:

1. High-Performance Signal Generation

Dual-Channel Output: Independent or synchronized operation with 400 MHz bandwidth per channel.
14-Bit Vertical Resolution: Ensures high signal accuracy with minimal distortion.
1.2 GSa/s Sampling Rate: Delivers fast, precise waveform reproduction.
Up to 800 MHz Pulse Wave Output: Ideal for high-speed digital signal simulation.

2. Versatile Waveform Generation

Standard Waveforms: Sine, square, pulse, ramp, noise, and DC signals.
Arbitrary Waveforms (ARB): User-defined waveforms with 16 Mpts memory depth for complex signal simulation.
Modulation & Sweep Modes: Supports AM, FM, PM, FSK, ASK, PWM, and linear/logarithmic sweep.
Built-in Harmonic & Arbitrary Waveform Editor: Customize signals with ease.

3. Advanced Functionality

Dual-Channel Phase Control: Adjust phase difference between channels for synchronized applications.
High-Stability Clock Source: Low jitter and high frequency accuracy (±1 ppm).
Burst Mode & Triggering: Supports N-cycle burst, gate control, and external triggering.
IQ Modulation (Optional): For RF and communication testing.

4. User-Friendly Interface

4.3-inch TFT LCD Display: Clear visualization of waveform parameters.
Intuitive Front-Panel Controls & Knob: Quick adjustments for frequency, amplitude, and offset.
USB & LAN Connectivity: Remote control via SCPI commands (USB-TMC, LXI-Core compliant).
Waveform Import/Export: Supports .CSV, .BIN, and .TXT file formats.

5. Robust Design & Portability

Compact & Lightweight: Easy to integrate into lab or field environments.
Low Noise & High Stability: Optimized for precision measurements.
Fanless Cooling System: Silent operation for noise-sensitive applications.

Applications:

✔ Communications Testing (RF, baseband, modulation analysis)
✔ Embedded System Debugging (MCU, FPGA, DSP signal simulation)
✔ Automotive & Aerospace Electronics (Sensor simulation, PWM testing)
✔ Education & Research Labs (Physics, engineering experiments)
✔ Power Electronics & Component Testing (Filters, amplifiers, oscillators)

Technical Specifications:

Parameter	Specification
Channels	2 (fully independent)
Bandwidth	400 MHz (sine wave)
Max. Sample Rate	1.2 GSa/s
Vertical Resolution	14-bit
Waveform Memory	16 Mpts per channel
Frequency Range	1 μHz – 400 MHz (sine), up to 800 MHz (pulse)
Output Impedance	50 Ω (adjustable)
Amplitude Range	1 mVpp – 10 Vpp (into 50 Ω)
Modulation Types	AM, FM, PM, FSK, ASK, PWM
Interface	USB Host/Device, LAN (LXI)

Package Includes:

UTG4122A Waveform Generator
Power Cable
USB Cable
Quick Start Guide
Optional Accessories: BNC cables, remote control software

Why Choose the UNI-T UTG4122A?

✅ High-speed, high-resolution signal generation for demanding applications.
✅ Dual-channel flexibility with precise synchronization.
✅ Extensive modulation & arbitrary waveform support.
✅ User-friendly interface with PC connectivity.
✅ Reliable performance from a trusted test & measurement brand.

Ideal for R&D labs, manufacturing, and education, the UTG4122A provides professional-grade signal generation at an exceptional value.
