Description

Key Features & Benefits

✅ True RMS Measurements – Accurate readings for non-linear loads
✅ Wide Power Analysis – Measures U, I, P, Q, S, PF, Hz, and Harmonics up to 50th order
✅ High Accuracy Class – 0.1% for voltage, 0.2% for current measurements
✅ Large Touchscreen Display – 7″ TFT LCD with intuitive user interface
✅ Comprehensive Connectivity – USB, Ethernet, RS485, and Bluetooth options
✅ Data Logging Capability – Stores up to 1 million data points
✅ Harmonic Analysis – THD measurement for power quality assessment
✅ Multiple Current Inputs – Supports direct input and CT clamps

Technical Specifications

Measurement Capabilities

• Voltage (U): 1.0-1000V (AC/DC)

• Current (I): 0.001-20A (direct), up to 2000A (with CT)

• Power (P/Q/S): 0.001W-20MW

• Power Factor (PF): 0.000-1.000

• Frequency (Hz): 40-70Hz

• Harmonics: Up to 50th order (THD, individual harmonics)

Measurement Accuracy

• Voltage: ±(0.1% of reading + 0.1% of range)

• Current: ±(0.2% of reading + 0.1% of range)

• Power: ±(0.5% of reading + 0.1% of range)

• Energy: Class 0.5S

General Specifications

• Sampling Rate: Up to 512 samples/cycle

• Display: 7″ TFT LCD (800×480) touchscreen

• Interfaces: USB Host/Device, Ethernet, RS485, Bluetooth (optional)

• Power Supply: AC 85-264V, 45-440Hz

• Dimensions: 290×190×85mm

• Weight: 2.2kg

Professional Applications

✔ Industrial Power Monitoring – Continuous load analysis
✔ Energy Audits – Comprehensive power consumption studies
✔ Power Quality Analysis – Harmonic distortion evaluation
✔ Renewable Energy Systems – Solar/Wind power monitoring
✔ Electrical Equipment Testing – Motor, transformer, and generator testing
✔ Smart Grid Applications – Advanced metering infrastructure

Package Contents

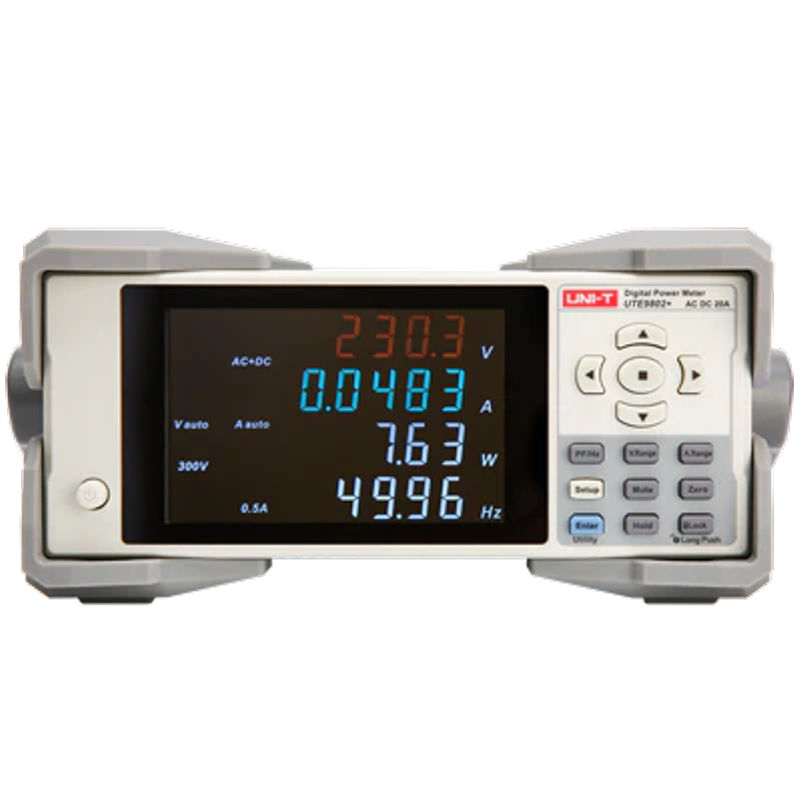

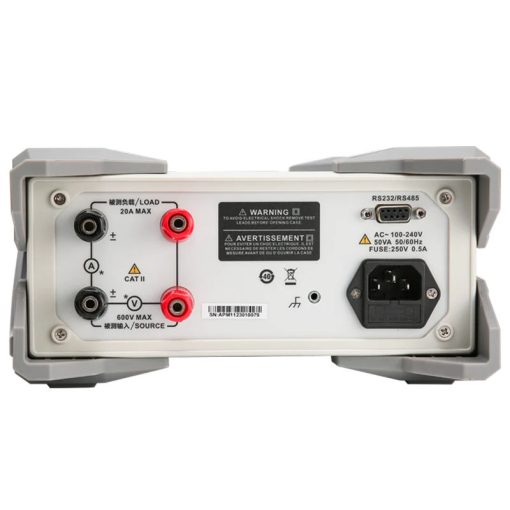

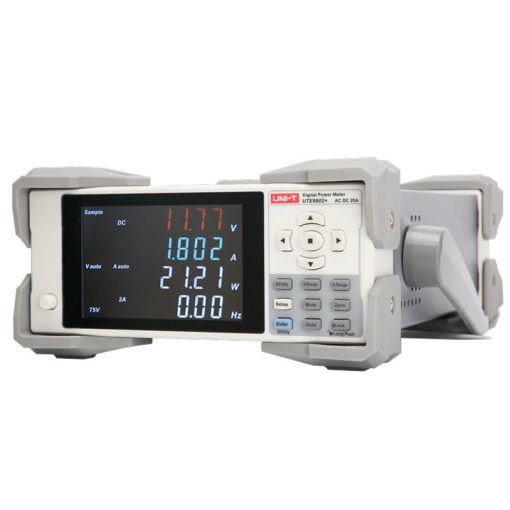

• 1 × UTE9802+ Main Unit

• 1 × Set of Test Leads

• 1 × Voltage Probe Set

• 1 × Power Cord

• 1 × USB Cable

• 1 × Quick Guide

• 1 × Certificate of Calibration

Why Choose UTE9802+?

• Laboratory-grade precision for critical power measurements

• Comprehensive power analysis beyond basic parameters

• Advanced connectivity for remote monitoring and data export

• User-friendly interface with touchscreen operation

• Rugged design for demanding industrial environments

The ultimate solution for professional power measurement and energy analysis!
