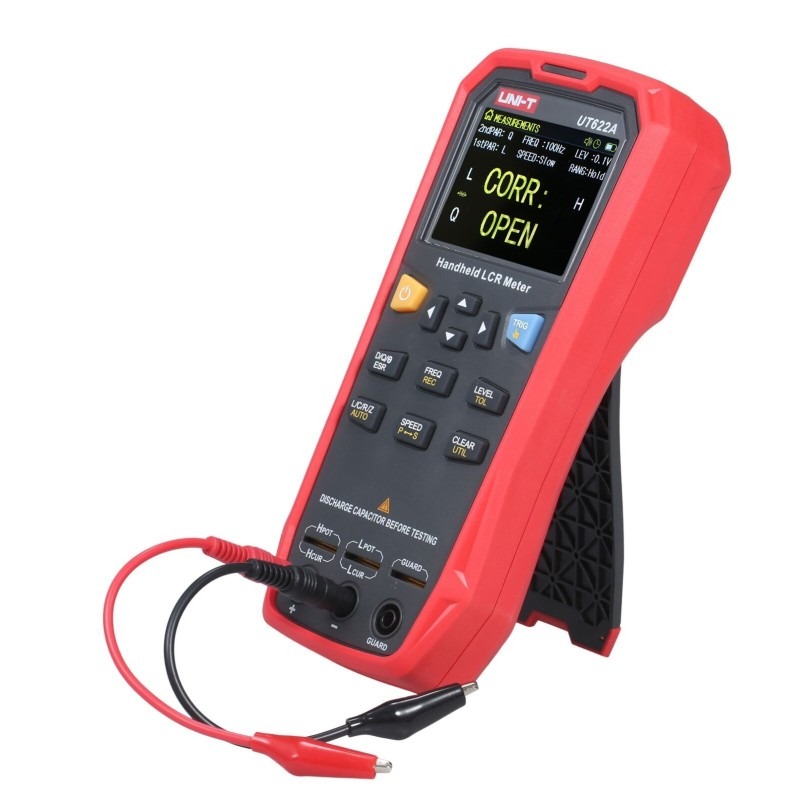

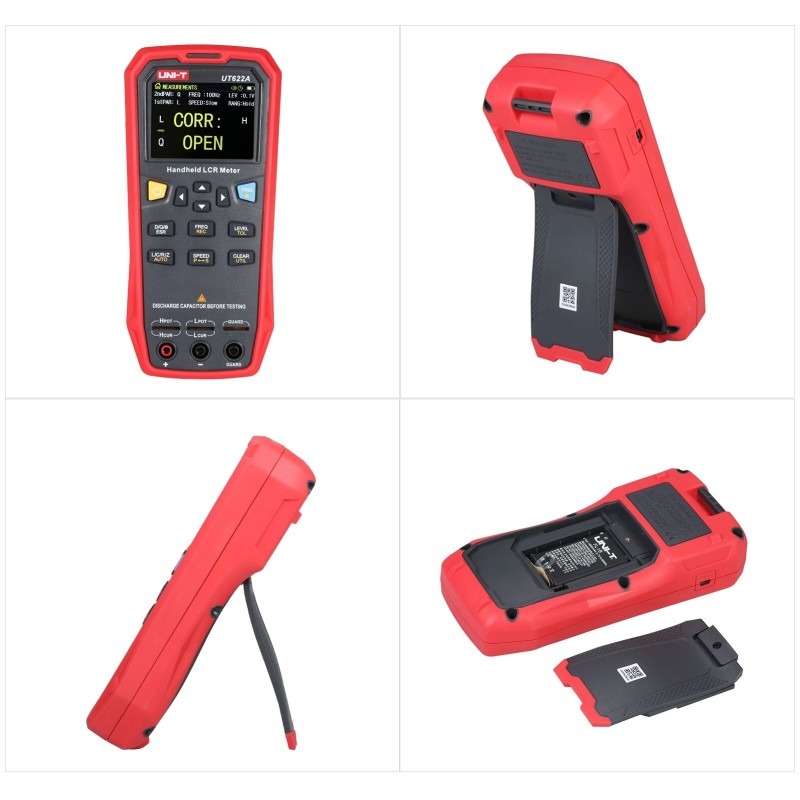

UNI-T UT622A Handheld LCR Meter
UNI-T UT622A Handheld LCR Meter
UNI-T UT622A Handheld LCR Meter
UNI-T UT622A Handheld LCR Meter

UNI-T UT622A Handheld LCR Meter

Original price was: 11,000.00 EGP.Current price is: 10,800.00 EGP.

UNI-T UT622A is a high-performance handheld LCR meter designed for precise testing of inductance (L), capacitance (C), and resistance (R) components. Whether you’re working in a lab, production environment, or field service, the UT622A delivers fast, accurate, and reliable measurements with a wide range of test frequencies.

Available on backorder

SKU: UT622A Category:

Description

Key Features:

  • 🔹 Multi-Function LCR Meter: Measures L (inductance), C (capacitance), R (resistance), D (dissipation factor), Q (quality factor), ESR, and θ (phase angle).

  • 🔹 Wide Frequency Range: Supports multiple test frequencies – 100 Hz, 120 Hz, 1 kHz, 10 kHz, 100 kHz – for comprehensive component analysis.

  • 🔹 Dual Display: Large backlit LCD shows primary and secondary parameters simultaneously.

  • 🔹 Auto and Manual Ranging: Flexible measurement modes for speed or precision as needed.

  • 🔹 Multiple Test Modes: Series and parallel equivalent circuit modes for both inductive and capacitive components.

  • 🔹 Sorting/Comparison Function: Easily categorize components with binning feature for quality control.

  • 🔹 Data Hold & Auto Power Off: Enhances user experience and extends battery life.

  • 🔹 Portable & Rugged: Lightweight design with a protective case makes it perfect for fieldwork.

Specifications:

Parameter Range
Resistance (R) 0.01Ω ~ 99.99MΩ
Capacitance (C) 0.01pF ~ 99.99mF
Inductance (L) 0.01µH ~ 9999H
Test Frequencies 100 Hz, 120 Hz, 1 kHz, 10 kHz, 100 kHz
Display Count 20,000 / 10,000 (dual display)
Measurement Modes Ls/Lp, Cs/Cp, Rs/Rp
Other Parameters D, Q, ESR, θ
Accuracy ±(0.2% + 2 digits) (varies by parameter)
Display Large LCD with backlight
Power Supply 4 x 1.5V AA batteries or USB DC 5V
Dimensions 207 × 95 × 46 mm
Weight Approx. 420g
Interface USB Type-C (for power and data transfer)

Applications:

  • ✅ Electronic Component Testing (L, C, R)

  • ✅ Repair and Maintenance in Field or Workshop

  • ✅ Quality Control in Manufacturing

  • ✅ Educational and Lab Experiments

  • ✅ R&D and Prototyping

What’s in the Box:

  • UNI-T UT622A Handheld LCR Meter

  • Test Leads (Kelvin Clips)

  • USB Cable

  • User Manual

  • Carrying Case

Why Choose the UNI-T UT622A?

The UT622A stands out for its accuracy, portability, and versatility, making it an essential tool for engineers, technicians, and educators alike. With rich functions, a user-friendly interface, and robust build, it brings lab-grade performance to your hand.
