Description

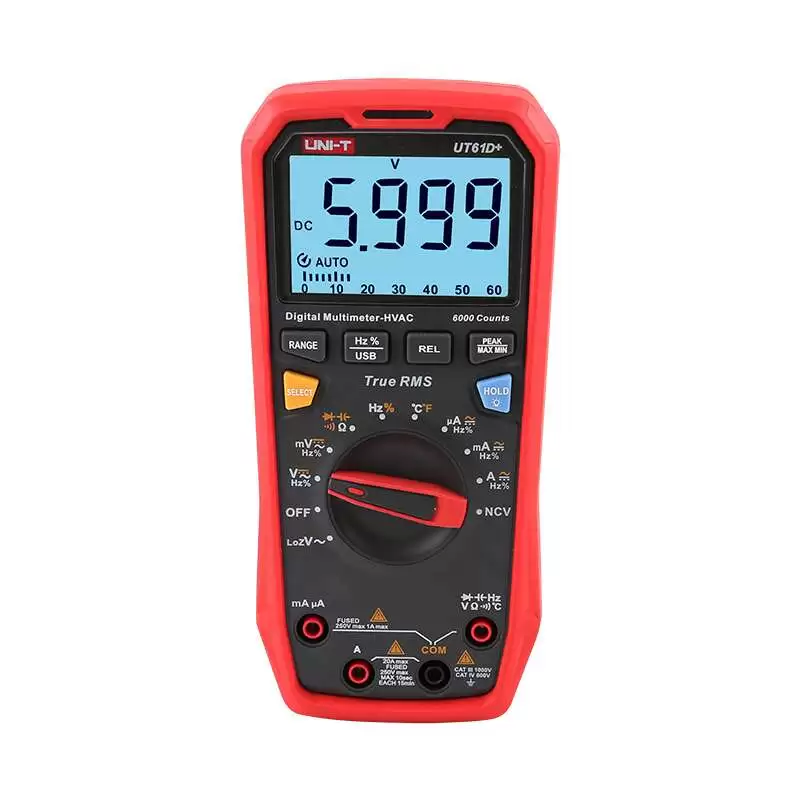

UNI-T UT61D+ 1000V True RMS Digital Multimeters

🔧 Key Features

• Measurement Ranges:

  • DC Voltage: up to 1000 V

  • AC Voltage: up to 1000 V

  • DC/AC Current: up to 20 A

  • Resistance: up to 60 MΩ

  • Capacitance: up to 60 mF

  • Frequency: up to 10 MHz

  • Duty Cycle and Temperature measurement support

• Display:

  • 6000-count digital LCD

  • Analog bar graph for real-time trends

  • Backlit screen for better visibility in low light

• Advanced Functions:

  • True RMS for accurate AC readings

  • Data hold, max/min, relative mode, peak hold

  • USB interface for PC connectivity and data logging

  • Non-Contact Voltage (NCV) detection

  • Auto ranging with manual override

• Safety & Build:

  • CAT III 1000V / CAT IV 600V safety rating

  • Sturdy design with protective rubber casing

  • Overvoltage and input protection

📦 Package Includes

• UT61D+ Multimeter

• Test leads

• Temperature probe

• USB cable

• 4 × AAA batteries

• User manual

• Carry pouch

📐 Specifications

• Dimensions: 190 × 90 × 50 mm

• Weight: ~350 g

• Power Supply: 4 × AAA batteries
