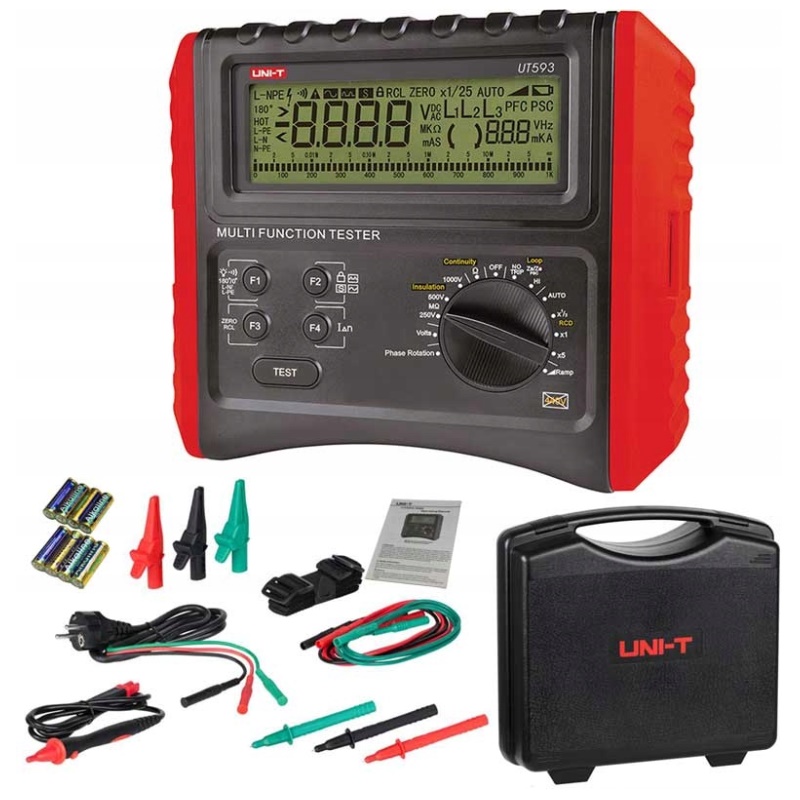

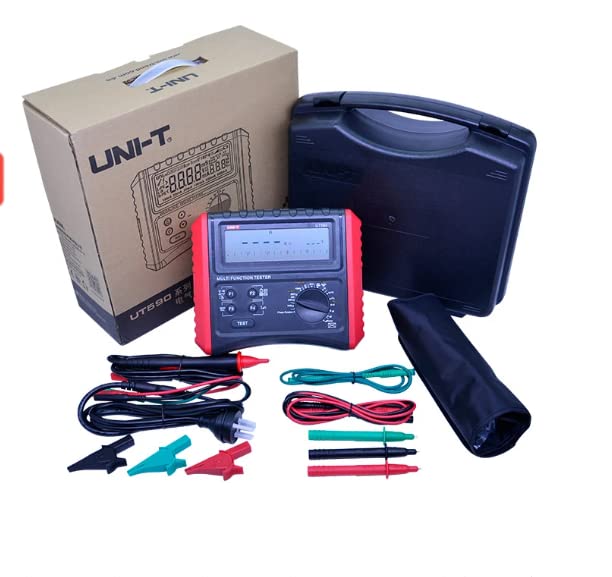

UNI-T UT593 Installation Tester – Advanced Multifunction Tester for Electrical Safety and Performance

The UNI-T UT593 Installation Tester is a professional multifunction electrical tester designed for comprehensive testing and verification of electrical installations. Engineered to meet international safety standards, it ensures reliable measurement of insulation resistance, loop and line impedance, RCD trip time, voltage, and continuity — making it an essential instrument for electricians, inspectors, and facility maintenance professionals.

Combining accuracy, durability, and ease of use, the UT593 is a complete testing solution that guarantees electrical systems meet safety and performance requirements.

---

Comprehensive Electrical Testing Capabilities

The UNI-T UT593 is designed to perform a full range of electrical installation tests in compliance with international standards such as IEC 61557. It helps professionals verify wiring safety, insulation quality, and circuit protection — all from a single, compact device.

Key testing functions include:

• Insulation Resistance Measurement (up to 1000V test voltage)

• RCD (Residual Current Device) Test – for checking trip time and current

• Loop Impedance Test and Line Impedance Test – for assessing circuit integrity

• Voltage and Frequency Measurement

• Continuity Testing with audible indication

These capabilities make it ideal for testing newly installed circuits, performing safety inspections, or diagnosing faults in existing electrical systems.

---

High Accuracy and Reliable Performance

The UT593 delivers high accuracy and stability across all measurement functions. It features multiple selectable test voltages for insulation resistance (250V, 500V, and 1000V), ensuring compatibility with different system types and insulation materials.

Its loop and line impedance measurement helps detect excessive wiring resistance that could cause voltage drops or poor performance. The RCD testing mode allows verification of residual current protection devices by measuring their trip time and current at various settings (½, 1×, 5× IΔn), ensuring the safety of both people and equipment.

The meter provides fast, consistent readings, supported by an advanced internal processor that minimizes test time while maximizing accuracy.

---

User-Friendly Design and Display

The UNI-T UT593 Installation Tester is built for ease of use in demanding field conditions. It features a large backlit LCD display that clearly shows test parameters, readings, and indicators, even in poorly lit environments.

Its intuitive control interface simplifies test selection, while the rotary dial and soft-touch buttons make it easy to switch between functions. The built-in LED indicators and audible alarms provide instant feedback during tests, reducing the risk of error.

All results are displayed in real time, and the device supports data hold and auto power-off functions to enhance usability and conserve battery life during long working sessions.

---

Safety and Durability You Can Trust

Safety is at the core of the UT593’s design. The device complies with CAT III 600V safety standards, ensuring protection during high-voltage testing. It’s equipped with input protection circuits to guard against accidental overvoltage or incorrect connections.

The rugged outer housing is made from impact-resistant ABS plastic, offering excellent durability against shocks, drops, and environmental stress. Its ergonomic design and integrated carrying handle make it easy to transport between job sites.

With IP40 protection, the unit is suitable for use in industrial, commercial, and residential environments, providing consistent performance in challenging conditions.

---

Practical Applications

The UNI-T UT593 is an all-in-one testing solution for:

• Electrical contractors and installation engineers verifying new circuits.

• Maintenance technicians checking safety and performance of existing installations.

• Facility managers ensuring compliance with electrical standards.

• Inspection and testing agencies performing certification and maintenance audits.

It’s ideal for use in residential, commercial, and industrial installations, including wiring systems, control panels, and distribution boards.

---

Key Features at a Glance

• Model: UNI-T UT593 Installation Tester

• Insulation Resistance Test Voltages: 250V / 500V / 1000V

• Loop & Line Impedance Measurement: Yes

• RCD Test: Trip time and current test (½, 1×, 5× IΔn)

• Continuity Testing: With buzzer indication

• Voltage Range: 0–600V (AC)

• Frequency Measurement: 45Hz–65Hz

• Display: Large backlit LCD screen

• Safety Rating: CAT III 600V, IEC 61557 compliant

• Power Supply: 6 × 1.5V AA batteries

• Auto Power-Off: Yes

• Build: Rugged ABS housing with handle

• Protection: IP40 rating

---

Why Choose the UNI-T UT593 Installation Tester?

The UT593 is more than just a meter — it’s a comprehensive safety verification system that ensures your electrical installations are compliant, efficient, and reliable. By combining multiple test functions in one unit, it eliminates the need for multiple instruments, saving both time and effort.

Its robust construction, precise measurements, and user-friendly design make it a top choice for professionals who demand dependable performance in every test. Whether you’re conducting commissioning tests, maintenance inspections, or fault diagnostics, the UNI-T UT593 delivers the accuracy and confidence you need.
