Name: UNI-T UT513C 5kV Insulation Resistance Testers - Electra Store
SKU: UT513C
Price: 22500.00 EGP
Availability: InStock

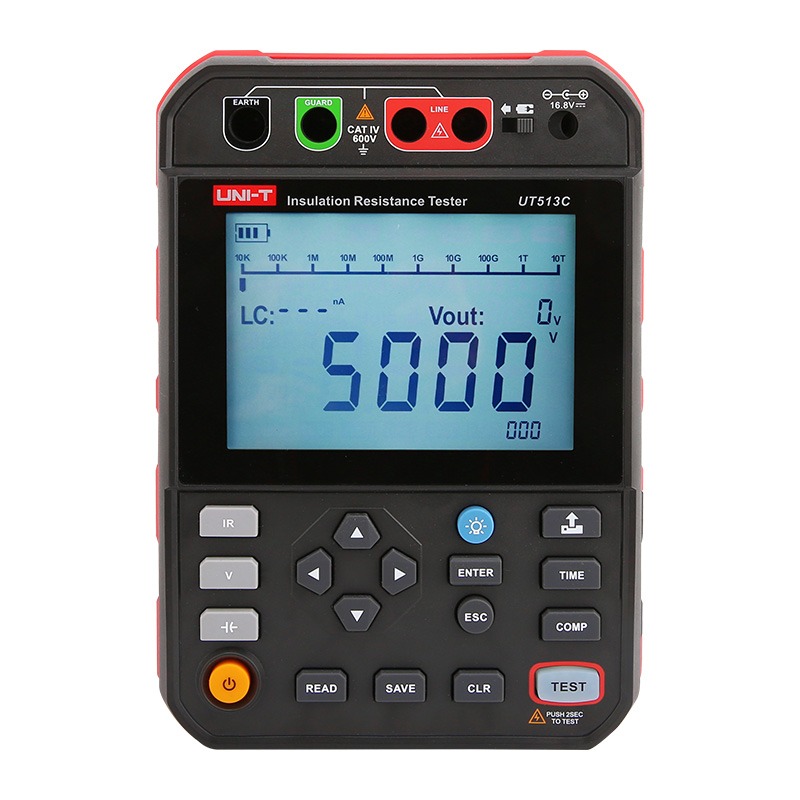

UNI-T UT513C 5kV Insulation Resistance Testers

22,500.00 EGP

UNI-T UT513C is a high-performance 5kV insulation resistance tester designed for electricians, engineers, and maintenance professionals. With a wide measurement range (0.01MΩ to 5TΩ) and ±3% accuracy, it ensures precise diagnostics for transformers, cables, motors, and high-voltage equipment.

✔ Ideal for:

Industrial motor & generator testing
Power cable & transformer maintenance
HV equipment commissioning
Preventive maintenance programs

SKU: UT513C Category: UNI-T

Description
Reviews (0)

Description

Key Features & Benefits

1. High-Voltage Insulation Testing

5kV test voltage (with 250V/500V/1kV/2.5kV/5kV ranges)
0.01MΩ–5TΩ measurement range (±3% accuracy)
PI (Polarization Index) & DAR (Dielectric Absorption Ratio) for insulation health analysis

2. Advanced Safety & Reliability

CAT IV 600V safety rating (IEC 61010)
Auto discharge function for safe operation
Live circuit detection & warning

3. Smart Operation & Data Management

Large backlit LCD with analog bargraph
Data hold & MAX/MIN recording
USB data export (PC software included)

4. Rugged & Portable Design

IP54 protection (dust/water resistant)
Lightweight (2.5kg) with ergonomic handle
Long battery life (8+ hours continuous use)

Technical Specifications

Parameter	Specification
Test Voltage	250V/500V/1kV/2.5kV/5kV
Insulation Range	0.01MΩ–5TΩ
Accuracy	±3% (0.01MΩ–10GΩ), ±5% (>10GΩ)
PI/DAR Measurement	Yes (1–9999)
Safety Standard	CAT IV 600V (IEC 61010)
Power Supply	8× AA batteries (or AC adapter)
Dimensions	280×250×150mm
Weight	2.5kg (with battery)

Package Includes

UT513C Main Unit
Test Leads (Red/Black)
Alligator Clips
AC Adapter (Optional)
User Manual
Carrying Case

Why Choose the UT513C?

✅ 5kV testing capability for industrial applications
✅ PI/DAR analysis for predictive maintenance
✅ CAT IV safety for live environments
✅ Portable & user-friendly for field use

Compliant with: IEC 61557, IEEE 43

Ensure electrical safety—order your UT513C today! ⚡
