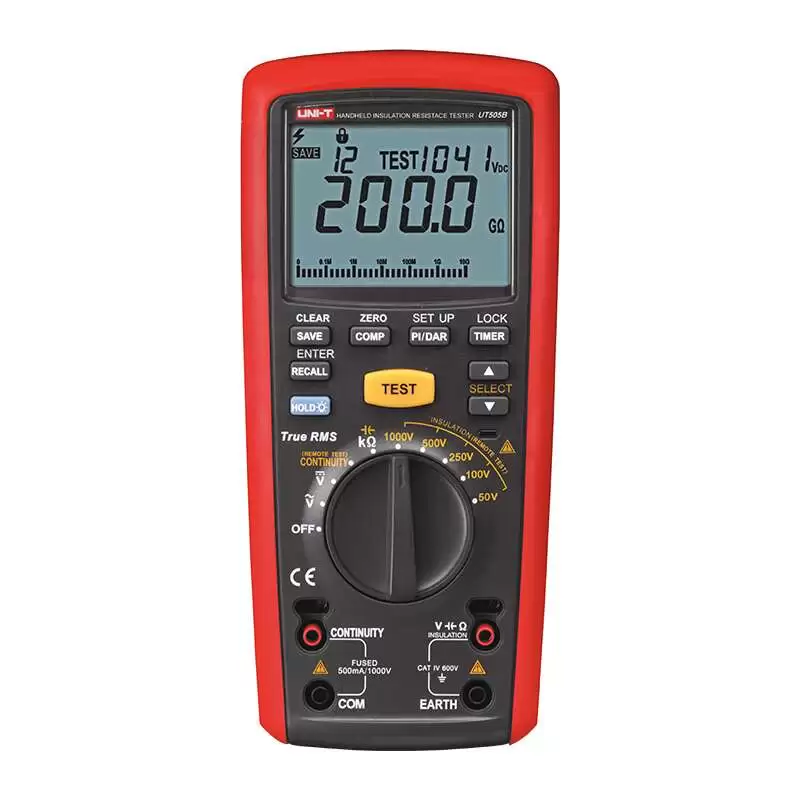

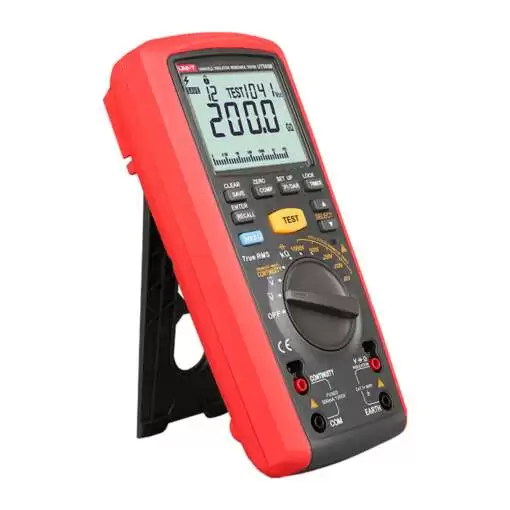

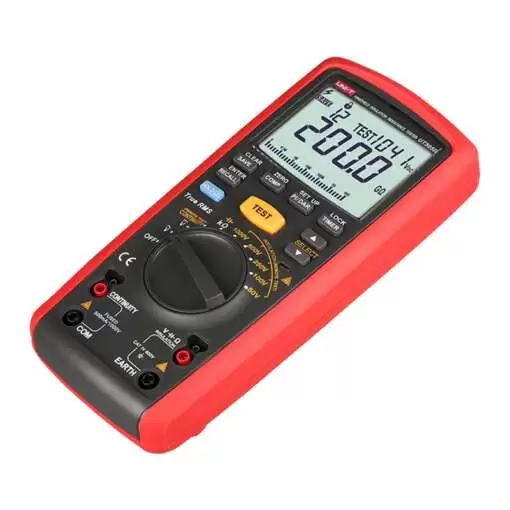

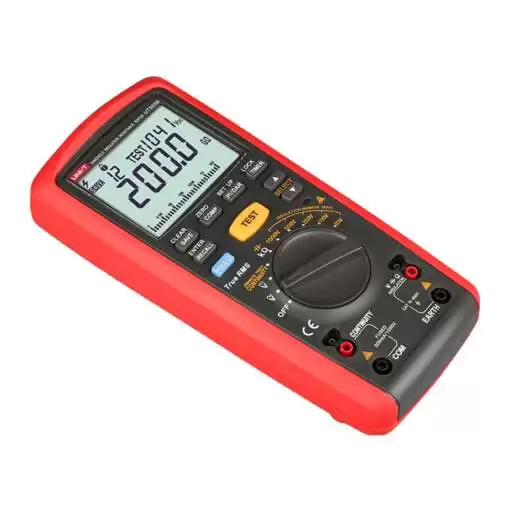

UNI-T UT505B Handheld Insulation Resistance Tester

Original price was: 11,600.00 EGP.Current price is: 11,400.00 EGP.

The UNI-T UT505B is a portable and highly reliable insulation resistance tester designed for both industrial and commercial use. This versatile tester is essential for performing insulation resistance measurements on electrical systems, cables, and electrical equipment to ensure safety and functionality. With its wide measurement range, high accuracy, and easy-to-use interface, the UT505B is perfect for electricians, engineers, and maintenance professionals.

SKU: UT505B Category: UNI-T

Description
Reviews (0)

Description

UNI-T UT505B Handheld Insulation Resistance Tester

Key Features:

Wide Insulation Resistance Range
The UT505B offers a broad insulation resistance measurement range from 0.01MΩ to 10GΩ, providing accurate readings for a variety of applications, from low-resistance systems to high-voltage electrical equipment.
High Test Voltage
Capable of performing insulation tests at 250V, 500V, and 1000V, the UT505B allows for a wide range of testing voltages to suit various insulation materials and electrical systems.
Accuracy and Reliability
With high accuracy of up to ±5% and a reliable measurement system, this insulation resistance tester ensures precise results for both routine and critical electrical tests.
Easy-to-Read LCD Display
The large LCD screen provides clear, real-time measurement data, ensuring that you can easily read results even in low-light environments.
Data Hold Function
The UT505B features a data hold function to freeze the reading, allowing you to record and review test results at your convenience.
Multiple Testing Functions
It supports various testing modes, including Insulation Resistance Measurement, Polarity Measurement, and Step Voltage Measurement, giving you the flexibility to perform comprehensive electrical tests.
Built-In Memory
The tester features a built-in memory function that stores up to 100 readings, making it easy to track test results for later analysis or reporting.
Overload Protection
The UT505B comes equipped with overload protection to prevent damage to the device during testing and ensure safe operation in all conditions.
Portable Design
The compact and lightweight design ensures the tester is easy to carry, making it ideal for field testing and use in a variety of environments.

Specifications:

Feature	Specification
Insulation Resistance Range	0.01MΩ to 10GΩ
Test Voltage	250V, 500V, 1000V
Measurement Accuracy	±5% ±2 digits
Display	3.5-inch LCD
Test Current	≤1mA
Test Time	5s – 10s (depending on test voltage)
Memory Function	Up to 100 readings
Data Hold Function	Yes
Overload Protection	Yes
Battery Type	6 x 1.5V AA (Alkaline or Ni-MH)
Battery Life	Approx. 20 hours (depending on use)
Weight	Approx. 500g
Dimensions	183mm × 112mm × 50mm

Applications:

Electrical System Testing: Ensure the integrity and safety of electrical insulation in industrial and commercial systems.
Cable Insulation Checks: Test cables and wiring to verify insulation performance and avoid electrical hazards.
Maintenance and Troubleshooting: Quickly diagnose insulation faults in electrical equipment, motors, and transformers during routine maintenance.
Power Plants and Substations: Used for insulation resistance testing in power plants, substations, and electrical power distribution systems.

The UNI-T UT505B Handheld Insulation Resistance Tester provides accurate, reliable, and easy-to-use insulation resistance measurements for a wide range of electrical applications. With its portable design and advanced features, it’s an essential tool for ensuring the safety and efficiency of electrical systems.
