Description

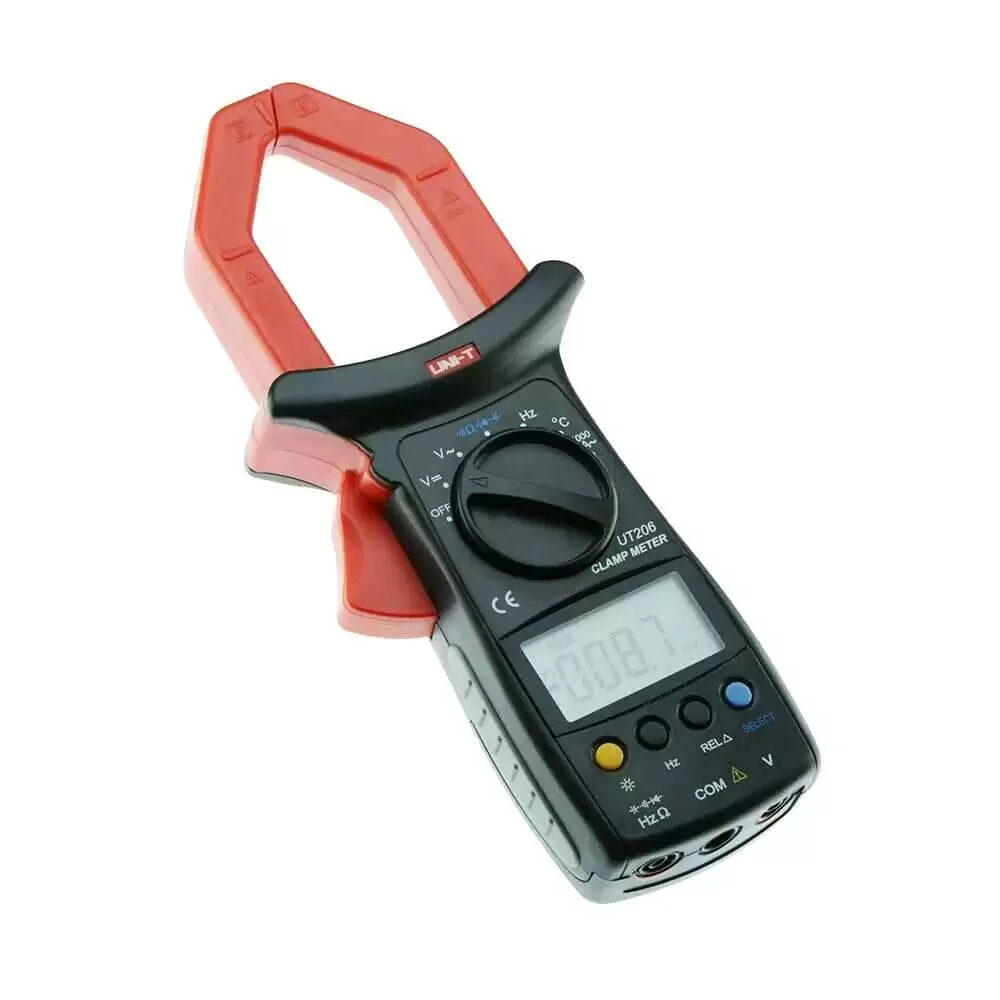

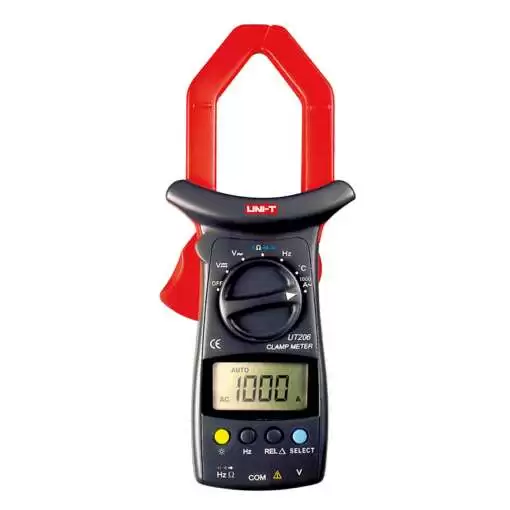

UNI-T UT206 1000A Digital Clamp Meter



Key Features:

• High Current Measurement
  The UT206 can measure AC currents up to 1000A, making it suitable for a wide range of industrial and commercial applications.

• Wide Range of Functions
  In addition to measuring AC current, this meter also supports measurements of AC voltage, DC voltage, resistance, and frequency, providing all-in-one functionality.

• Large Display
  Equipped with a 4000-count LCD display, the UT206 offers clear readings with high resolution for better accuracy in measurements.

• Data Hold Function
  The data hold function allows users to freeze the current reading on the display, making it easier to record and analyze measurements.

• True RMS Measurement
  The meter features True RMS measurement for accurate readings of non-sinusoidal waveforms, ensuring reliable results in various applications.

• Non-Contact Voltage Detection
  The UT206 has built-in non-contact voltage detection, which allows users to check for the presence of voltage without direct contact with live wires, enhancing safety.

• Large Clamp Jaw
  The 40mm clamp jaw allows for easier and more convenient measurement of larger conductors, without the need to disconnect or disturb the system.

• Durable and Safe
  The clamp meter is designed to meet safety standards with CAT III 1000V and CAT IV 600V ratings, ensuring safe operation in demanding environments.

---

Specifications:

• AC Current Range: 1mA to 1000A

• AC Voltage Range: 1mV to 600V

• DC Voltage Range: 1mV to 600V

• Resistance Range: 1Ω to 40MΩ

• Frequency Range: 0.1Hz to 10MHz

• Display: 4000-count LCD

• Clamp Jaw Size: 40mm

• Power Supply: 2 x 1.5V AA batteries

• Safety Rating: CAT III 1000V, CAT IV 600V

• Dimensions: 273mm x 95mm x 40mm

• Weight: Approx. 400g

---

Applications:

• Electrical Maintenance and Troubleshooting: Perfect for measuring currents in electrical circuits, transformers, and distribution boards.

• Industrial Use: Used in factories and plants to check large electrical systems.

• HVAC Systems: Ideal for measuring currents in HVAC equipment and wiring.

• Residential Use: Handy for diagnosing electrical issues in homes or small commercial spaces.

---

The UNI-T UT206 1000A Digital Clamp Meter is a robust and reliable tool designed to provide accurate measurements in various electrical applications. Its wide measurement range and user-friendly features make it an essential tool for professionals in the field.
