Description

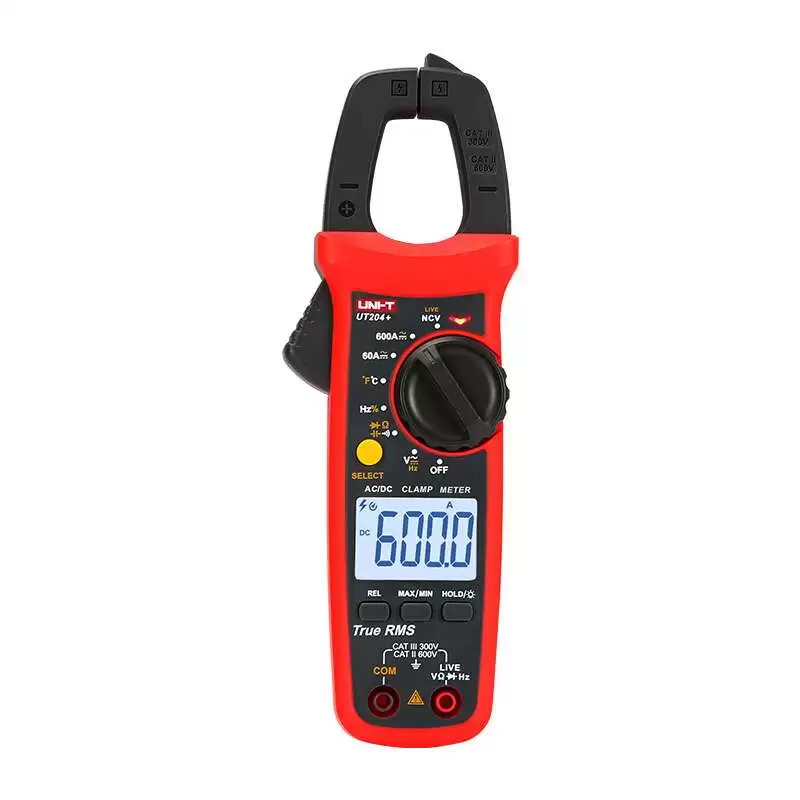

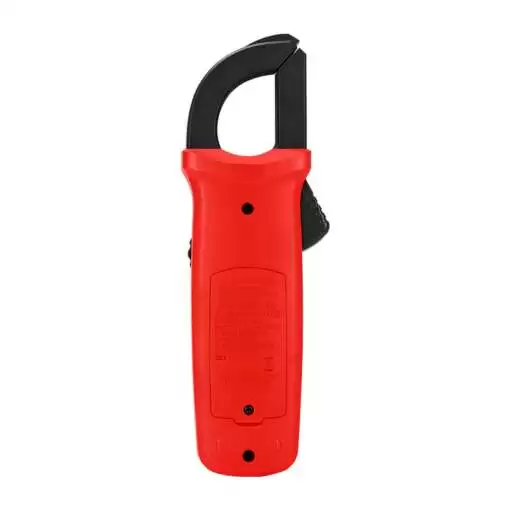

UNI-T UT204+ Digital Clamp Meter

🔧 Key Features

• Measurement Capabilities:

  • AC Current: Up to 400A with high accuracy.​meters.uni-trend.com

  • AC/DC Voltage: Up to 600V, suitable for a wide range of applications.​

  • Resistance: Measures up to 60MΩ, essential for continuity and insulation testing.​

  • Capacitance: Up to 60mF, useful for evaluating capacitive components.​

  • Frequency: Measures from 10Hz to 10MHz, accommodating various signal types.​

  • Duty Cycle: 0.1% to 99.9%, allowing detailed analysis of signal modulation.​

  • Temperature: Provides temperature measurements, enhancing diagnostic capabilities.​

  • Diode and Continuity Testing: Essential for verifying semiconductor components and circuit paths.​

• Display:

  • LCD Screen: Features a 4000-count display with a backlight for clear readings in various lighting conditions.​

• Additional Functions:

  • True RMS Measurement: Ensures accurate readings of non-sinusoidal AC signals.​

  • Auto Range: Simplifies operation by automatically selecting the appropriate measurement range.​

  • Data Hold: Freezes the current reading for easy recording and analysis.​

  • Relative Mode: Compares measurements against a stored reference value.​

  • Non-Contact Voltage (NCV) Detection: Identifies the presence of voltage without direct contact, enhancing user safety.​

• Design & Safety:

  • Jaw Opening: Designed to clamp around conductors up to 30mm in diameter.​

  • Ergonomic Design: Compact and lightweight for comfortable one-handed operation.​

  • Safety Ratings: Complies with CAT II 600V and CAT III 300V standards, ensuring safe use in various electrical environments.​meters.uni-trend.com

📐 Specifications

• Dimensions: Approximately 220 × 80 × 40 mm.​

• Weight: Approximately 300g.​

• Power Supply: Operates on 2 × 1.5V AAA batteries.​

📦 Package Includes

• UT204+ Digital Clamp Meter.​

• Test Leads.​

• K-Type Thermocouple Probe.​

• User Manual.​

• Carrying Pouch.​

• 2 × AAA Batteries.
