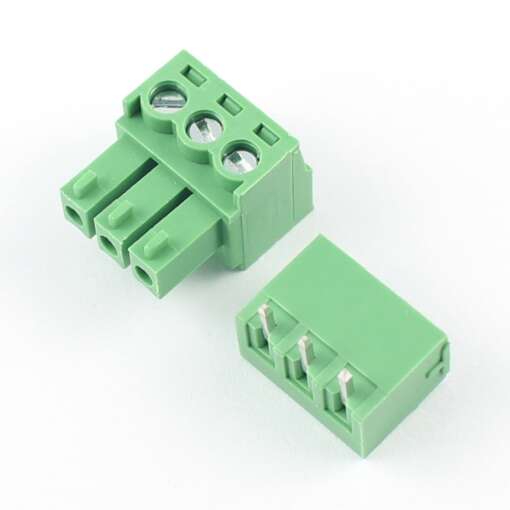

Terminal Block 3Pin Pluggable (Straight Pin) 5.08mm
9.50 EGP
A high-current, modular terminal block designed for secure and reusable wire connections in power distribution, industrial controls, and PCB applications. Features straight PCB pins for vertical mounting and a 5.08mm pitch for enhanced safety and compatibility with thicker wires.
Description
🔑 Key Features:
✔ Pluggable Design – Male header + female socket for tool-free assembly/disassembly
✔ 5.08mm Pitch – Prevents arcing and fits 12–24 AWG wires (0.2–4mm²)
✔ High-Current Capacity – 15A @ 300V AC/DC (tin-plated brass contacts)
✔ Screw Clamp Mechanism – Vibration-resistant and reusable connections
✔ PA66 Housing (UL94 V-0) – Flame-retardant and heat-resistant (-40°C to +105°C)
✔ Straight PCB Pins – Through-hole mounting for stable PCB integration
📌 Applications:
-
Industrial Automation – PLCs, motor controllers, DIN rail systems
-
Power Supplies – AC/DC input/output terminals
-
LED Drivers & Lighting – High-current RGB/W connections
-
Prototyping – Reusable breadboard-friendly wiring
📦 Package Includes:
-
1 × Male Terminal Block (3-pin, straight pins)
-
1 × Female Socket (Matching connector)
-
(Optional) Bulk pricing for OEM projects
⚙ Technical Specifications:
| Parameter | Value |
|---|---|
| Poles | 3-pin |
| Pitch | 5.08mm |
| Current Rating | 15A (300V AC/DC) |
| Voltage Rating | 300V AC/DC |
| Wire Range | 12–24 AWG (4–0.2mm²) |
| Contact Material | Tin-plated brass |
| Housing Material | PA66 (Green/Black, UL94 V-0) |
| Mounting Type | Through-hole PCB |
🔧 Why Choose This Terminal Block?
✅ Modularity – Replace wires without soldering
✅ Space-efficient – 5.08mm pitch balances safety and density
✅ Industrial-grade – Reliable in high-vibration environments
Note: For high-current applications, ensure proper PCB trace widths.
SEO Keywords: *5.08mm terminal block, pluggable 3-pin connector, 15A screw terminal, PCB power connector*
Need 3D models or custom configurations? Contact us! 🔌
