Description

Key Features:

1. Wide Measurement Capabilities

• DC Voltage: 0.1mV to 1000V

• AC Voltage: 0.1V to 750V (True RMS)

• DC Current: 0.1µA to 10A

• AC Current: 0.1µA to 10A (True RMS)

• Resistance: 0.1Ω to 40MΩ

• Capacitance: 0.01nF to 100µF

• Frequency: 0.01Hz to 10MHz

• Temperature: -40°C to 1000°C (with optional thermocouple)

• Diode & Continuity Test: Audible buzzer for quick checks

2. High Accuracy & True RMS

• Provides True RMS readings for accurate measurements of non-sinusoidal AC waveforms.

• High precision with ±0.5% DC voltage accuracy and ±1.0% AC voltage accuracy.

3. Large, Easy-to-Read Display

• 4,000-count LCD with bar graph for quick trend monitoring.

• Backlit display for visibility in low-light conditions.

4. Robust & Safety-Compliant Design

• CAT IV 600V / CAT III 1000V safety rating for protection in high-energy environments.

• Shock-resistant casing with ergonomic design for comfortable handling.

• Fused current inputs for overload protection.

5. Additional Features

• Auto Power Off to conserve battery life.

• Data Hold function to freeze readings for recording.

• Low Battery Indicator for timely replacement.

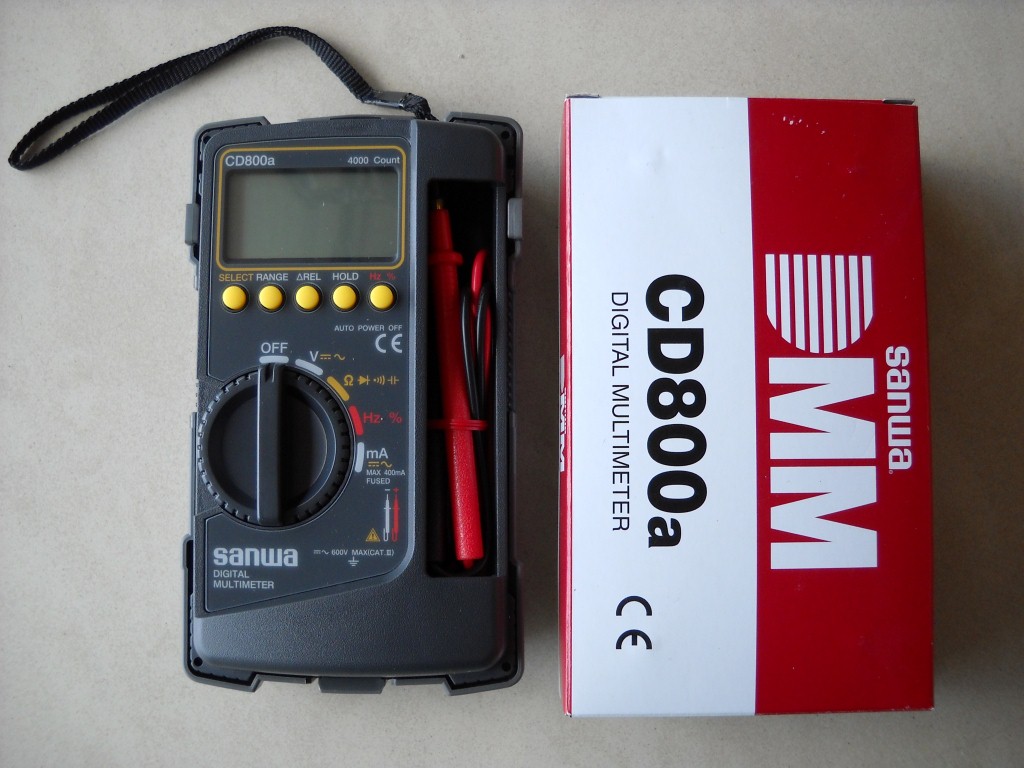

• Includes: Test leads, thermocouple (optional), and carrying case.

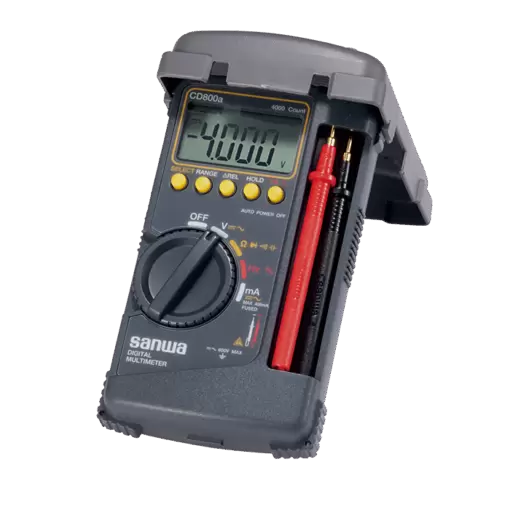

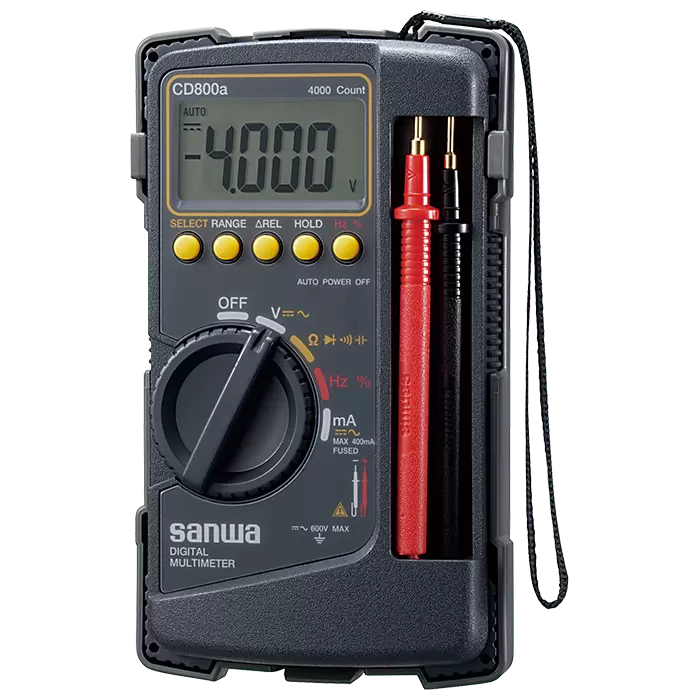

Why Choose the Sanwa CD800A?

• Reliable & Durable – Built to withstand tough working conditions.

• Versatile – Covers a wide range of electrical measurements.

• User-Friendly – Intuitive controls and clear display for efficient troubleshooting.

• Safety Certified – Meets international safety standards for professional use.

Perfect for industrial maintenance, HVAC, automotive diagnostics, and electronics repair, the Sanwa CD800A ensures precise, dependable measurements every time.

Order yours today and experience professional-grade testing with Sanwa’s trusted quality!
