Name: RP2040 Mini Development Board 5 × 5 RGB LED Matrix Development Board Module - Electra Store
SKU: RT-21679
Price: 550.00 EGP
Availability: InStock

RP2040 Mini Development Board 5 × 5 RGB LED Matrix Development Board Module

550.00 EGP

The RP2040 Mini Development Board combines the power of Raspberry Pi’s RP2040 microcontroller with a vibrant 5×5 RGB LED matrix, creating an all-in-one platform for embedded programming, LED animations, and interactive projects. Perfect for makers, educators, and hobbyists, this board enables creative coding, visual feedback, and real-time control in a compact form factor.

SKU: RT-21679 Category: Developments Boards

Description
Reviews (0)

Description

🌟 Key Features

✅ Dual-Core RP2040 Microcontroller

Dual ARM Cortex-M0+ @ 133MHz – Smooth multitasking
264KB SRAM + 2MB Flash – Plenty of memory for complex programs
8 Programmable I/O (PIO) – Customize hardware interfaces

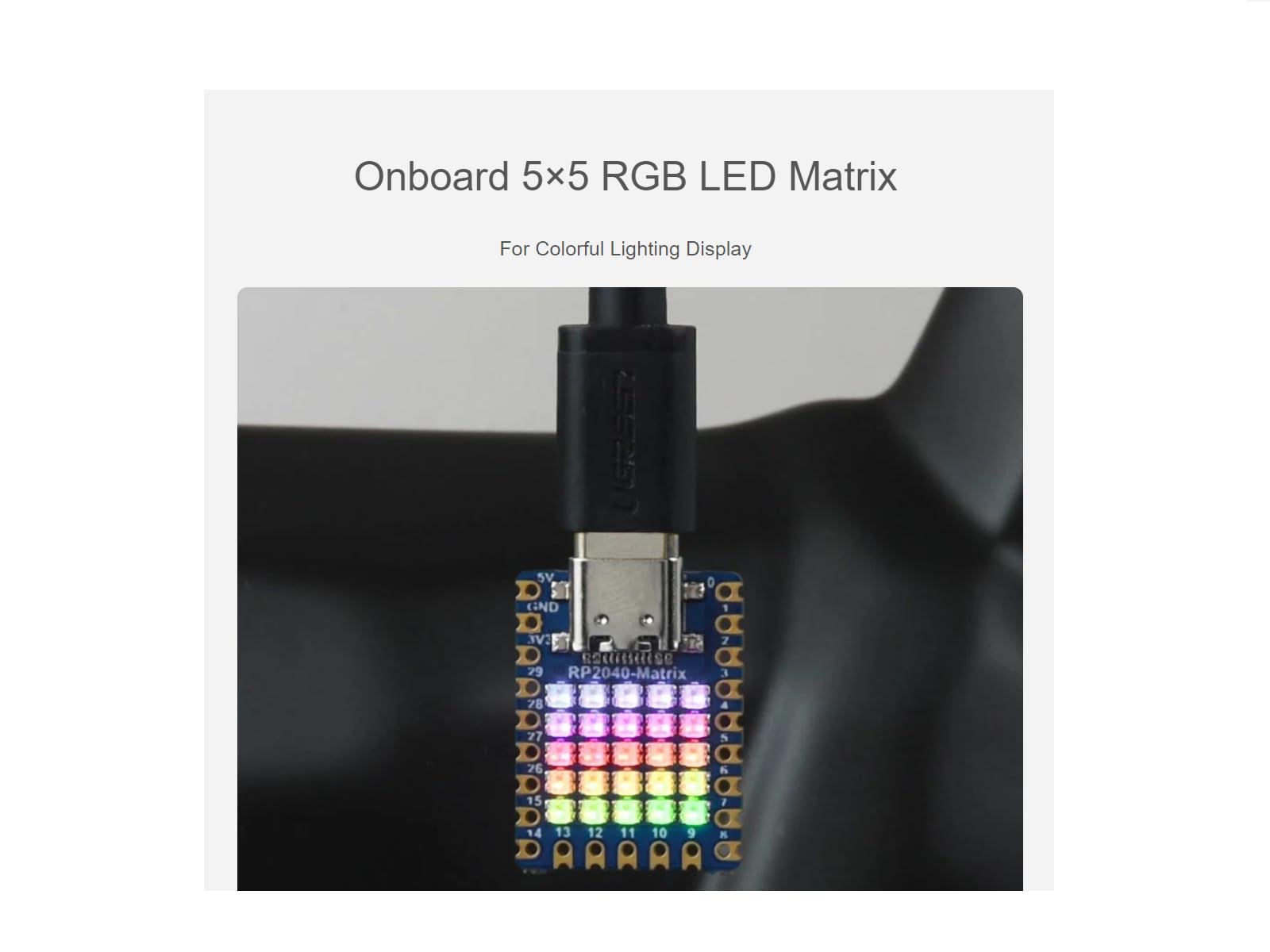

✅ Built-in 5×5 RGB LED Matrix

25 individually addressable RGB LEDs (WS2812B or similar)
Bright, colorful displays – Ideal for animations, games, and visual feedback
Easy control with NeoPixel (Adafruit) or FastLED libraries

✅ Compact & Breadboard-Friendly

Ultra-small footprint – Fits in tight spaces
Exposed 20 GPIO pins – Connect sensors, buttons, and other peripherals
USB Type-C – Modern, reversible power & programming

✅ Easy Programming & Compatibility

Works with Arduino IDE, MicroPython, and CircuitPython
Plug-and-play USB boot mode – No debugger needed
Supports C/C++ & Rust for advanced users

✅ Endless Creative Applications

✔ LED animations & light shows
✔ Mini games & interactive displays
✔ Music visualizers & VU meters
✔ Sensor dashboards (temperature, motion, etc.)
✔ Educational coding & electronics projects

📊 Technical Specifications

Parameter	Specification
MCU	Raspberry Pi RP2040
CPU Cores	Dual-core Cortex-M0+ @ 133MHz
Memory	264KB SRAM + 2MB Flash
LED Matrix	5×5 RGB (WS2812B-compatible)
GPIO Pins	Multiple breakout pins (UART, I2C, SPI, PWM)
USB	Type-C (power + programming)

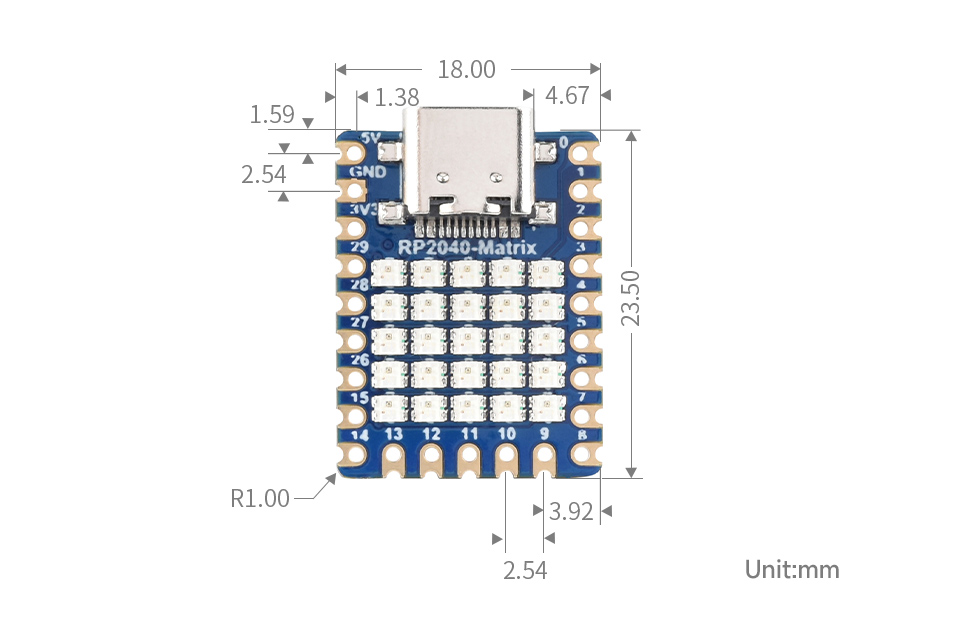

Dimensions	~30mm × 30mm (varies by model)

📦 Package Includes

1x RP2040 Mini Board with 5×5 RGB LED Matrix
Optional headers (if selected)

💡 Why Choose This Board?

🔹 All-in-one LED + microcontroller – No extra wiring needed
🔹 Beginner-friendly & fun – Great for learning coding & electronics
🔹 Ultra-portable – Fits in wearables, badges, and mini-projects
🔹 Open-source ecosystem – Works with Arduino, Python, and more

🌈 Light Up Your Projects – Perfect for Makers, Students & Tinkerers!

Order Now & Start Creating with Lights & Code!
